PLLSSTC Plasma Music Solid Tesla Coil Wireless Arc Generator Phase Locked Loop (PLL) Circuit Control

PLLSSTC Plasma Music Solid Tesla Coil Wireless Arc Generator Phase Locked Loop (PLL) Circuit Control

Description:

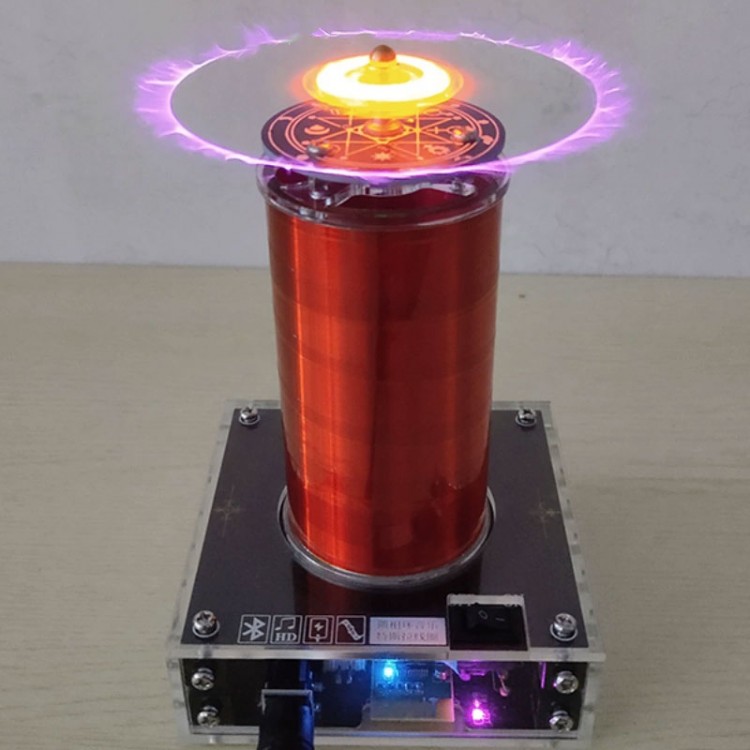

- PLLSSTC is a solid Tesla coil adopting PLL circuit control, featuring continuous operation.
- Arcs generally appear as furry clusters with high temperatures, and can ignite combustible materials such as paper. However, their prominent feature is in music modulation, which can play any format of music files and obtain good clear sound quality. They can be used as plasma speakers, in addition to demonstrating plasma powered windmills and wireless lighting of light bulbs.

Specification:
- Voltage: DC 24V, >3A
- Power consumption: 55 - 75W
- Frequency: 900 - 950KHz
- Electric field: 1200V/1m
- Magnetic field: 8.5uT/1m
- Noise: 80dB/1m
- Bluetooth: BT201 - AUDIAO
- Size: 96 x 96 x 154mm
- Weight: about 255g

Installation and Use:
- Align the bottom of the coil with the screws on the host and tighten them clockwise.
- Insert the power DC connector into the host power interface.
- Connect the power cord to the power adapter and plug it into the mains.
- Finally, press the power switch to complete the startup.
- When the host is turned on, open the Bluetooth device and search for the name "BT201-AUDIO". Click and connect. After the pairing connection is completed, the music can be played.
- If the plasma windmill is enabled, in the shutdown state, place the plasma windmill on the discharge tip of the coil, and then press the power on switch to enable it.

Precaution:
- During the operation of the equipment, magnetic and electric field interference will occur. Personnel who implant or wear precision medical devices are not allowed to approach the equipment or use the equipment in places where precision instruments are placed.
- The equipment will generate high temperatures during operation, and should not be used around flammable and explosive materials.
- The equipment will generate ozone during operation. Please maintain ventilation in the environment for prolonged use.
- Children are advised to use this device with their guardian.
- The equipment will generate high temperatures during operation. It is prohibited to touch the arc or coil surface, otherwise it will cause damage to the equipment. Our store is not responsible for this situation.

Package Included:
- 1 x Host
- 1 x Coil
- 1 x Power Cable
- 1 x Power Adapter (110V - 240V)
- 2 x Neon Bulb
- 1 x Plasma Windmill
