PM3 Proxmark3 4.0 RFID ICID Reader Card 512M Dual USB Ports

PM3 Proxmark3 4.0 RFID ICID Reader Card 512M Dual USB Ports

Description:
The high and low frequency antennas share a card reading area, which greatly optimizes and improves the antenna sensitivity. The antenna inductance value is doubled and the capacity is upgraded to 512. With dual USB ports, it is easy to plug and play. The outer casing protects the PM3 in an all-round way, effectively preventing the damage caused by static electricity, falling and other reasons.

Compared with PM3 RD V2.0, Here is the improvement:
1. Built-in high-frequency antenna, antenna depth matching, eliminates blind spots, read the whole card data flowing without interruption.
2. Increase Parse the secret key rate, the size of the card takes all.
3. Sniffing data, complete stable, low error rate.
4. The low frequency antenna to improve the signal to noise ratio, the higher the recognition rate, detachable design to meet various needs.
5. No antenna interface, there is no need to plug because it is easy to damaged.
6. Cancel the lithium battery, simple and convenient. (Offline can use mobile power supply)
7. In addition to the original relay and other unrelated, low cost, lightweight and portable.

Compatible with all official firmware, according to need to brush any version.

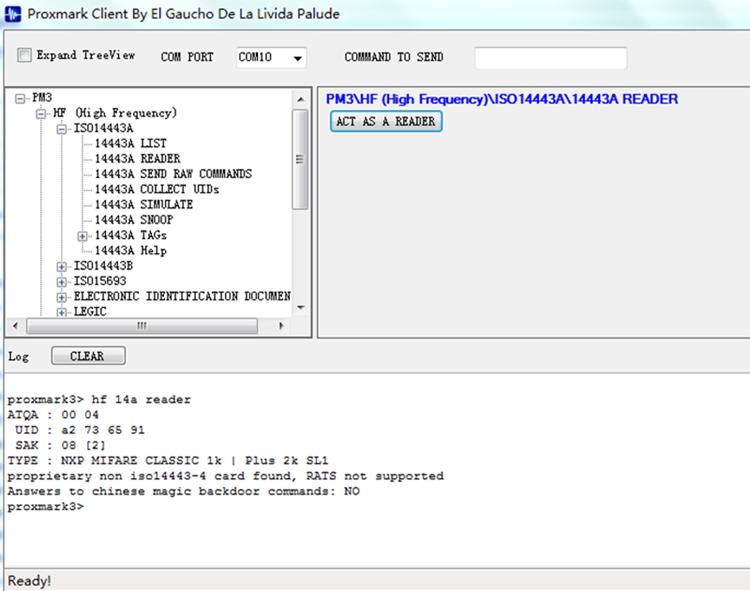

According to your preference, you can use the official "Command Line" or "Proxmark Tool.exe" to operate


(Low frequency antenna installed on the right side)
# LF antenna: 29.84 V @ 125.00 kHz
# LF antenna: 32.31V @ 134.00 kHz
# HF antenna: 28.43V @ 13.56 MHz

(Low frequency antenna installed on the left)
# LF antenna: 43.86 V @ 125.00 kHz
# LF antenna: 24.48 V @ 134.00 kHz
# HF antenna: 25.13 V @ 13.56 MHz

Operating voltage: 3.5-5.5V
Current job: 50-130mA
Length and width dimensions: 54mm * 86.6mm
The thickness: 6.2mm (thinnest) 9.8mm (plus screw) 15.8 (plus low frequency antenna)

The Main Function (common):
High Frequency:
- Operating card mode:
1. Conventional M1 S50 card reader and other 14443A Class B card.
2. Use the PRNG vulnerability parsing sector 0.
3. Use nested (mfoc) vulnerability resolve the whole card.
- Analog card mode:
1. Analog Mifare series S50 / Ultralight / DESFire card UID.
2. Analog M1 S50 whole sector data. (Pick a card reader)
3. Analog M1 S50 shell, to obtain data to calculate the secret key (pick a card reader)
- Silent mode:
1. Silent sniffer data communication between the M1 S50 card and card reader, analytical secret key.
2. Silent sniffing 14443A Class B card reader with a complete communications data.
3. Reader device can be used for debugging and behavior analysis.

Low Frequency:
- Operating card mode: 1. read ID, HID, T55XX, Indala and other low-frequency card.
- Analog card mode:
1. Enter ID / HID card, analog to the specified card type.
2. Analog modulation schemes specified data cards and ASK / FSK / PSK
- Silent Mode: 1. silently sniff data between the card and the reader (less, not tested)

Package Included:
- 1 x PM3 Proxmark3 4.0

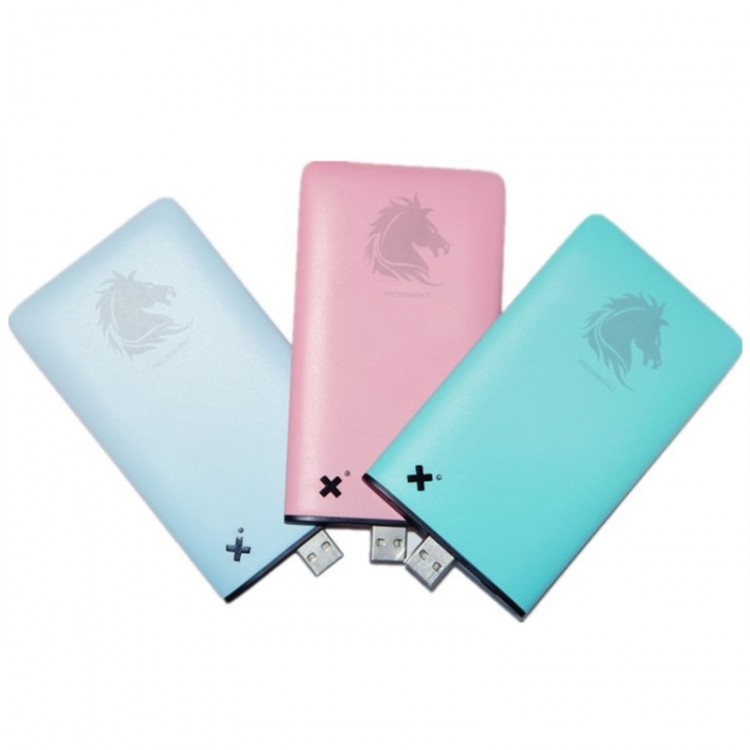

Note: Optional Colors: Green, Pink, Blue. Please tell us your favorite color when purchasing. Thank you!
