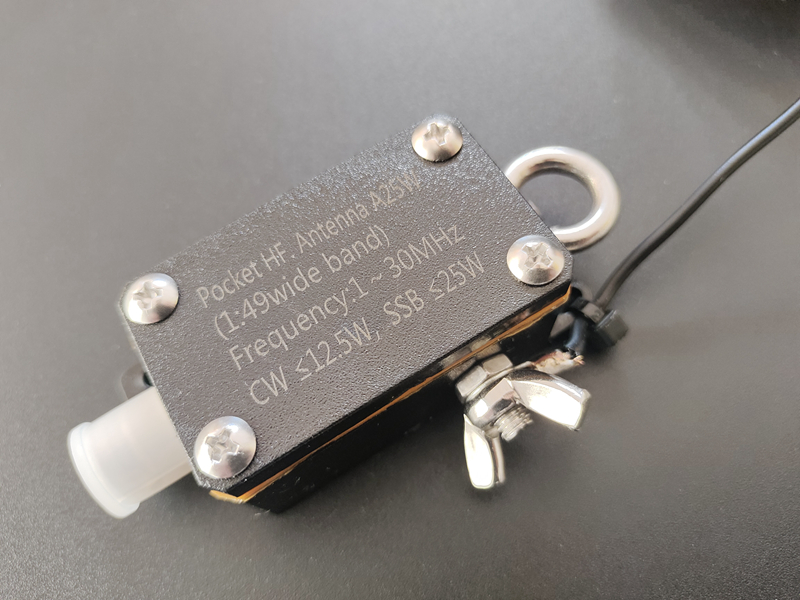

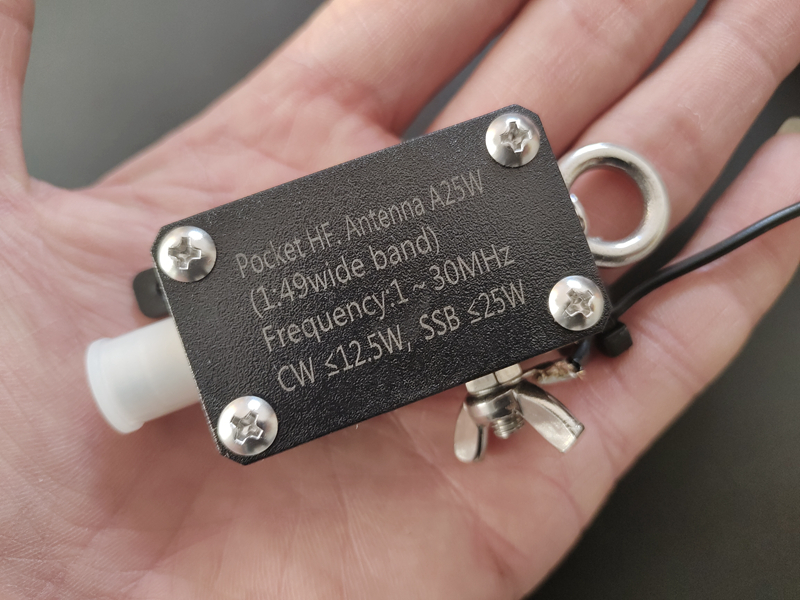

Pocket HF. Antenna A25 1-30MHz Shortwave Antenna HF Radio Inverted V Antenna w/ Imported Magnet Ring
Features:
- Low-power HF antenna
- Portable design
- Convenient carrying
- Easy to use
Specifications:
- 1:49 wide band
- Frequency: 1-30MHz
- Transmitting: 40m/131.2ft, 20m/65.6ft, 15m/49.2ft and 10m/32.8ft
- SWR: ≤1.5
- Power: FT8 ≤5W; CW ≤12.5W; SSB ≤25W
- Impedance: 50Ω
Package Included:
- 1 x Antenna
Accessories:

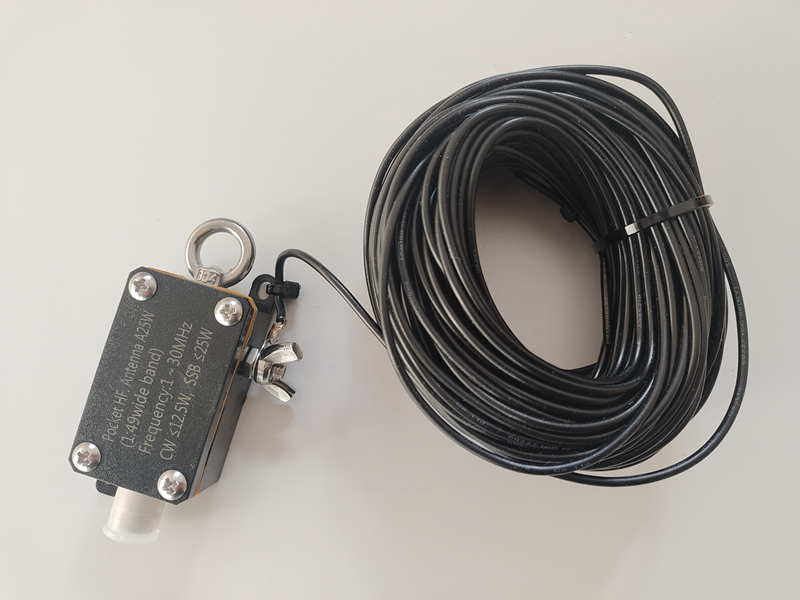

1:49 balun with imported magnet ring
20m/65.6ft antenna element
Windproof rope (prepared by yourself)

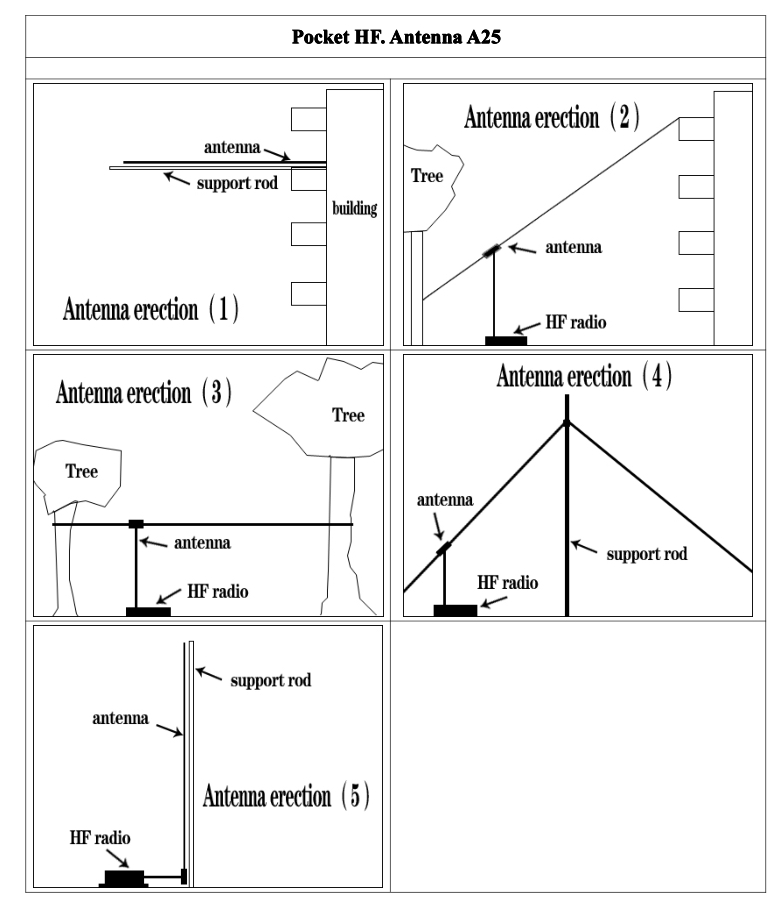

How to Use?
- Put your antenna analyzer in place
- Connect the antenna
- Test the standing wave of the antenna at the distance of 40m/131.2ft, 20m/65.6ft, 15m/49.2ft and 10m/32.8ft
- Cut the antenna element to get a desired standing wave
