PoE Board IO Board Module For Raspberry Pi Compute Module 3/ 3 Lite/ 3+/ 3+ Lite

PoE Board IO Board Module For Raspberry Pi Compute Module 3/ 3 Lite/ 3+/ 3+ Lite

Description:
IO Board with PoE Feature, Composite Breakout Board for Raspberry Pi Compute Module 3, 3 Lite, 3+, 3+ Lite.

The PoE Board is a development board which supports for Raspberry Pi Compute Module, and make use of the resources of Pi more flexibly. With the PoE (Power over Ethernet) feature, and versatile on-board peripheral interfaces, it is suitable for evaluating the Raspberry Pi compute module, also is an ideal choice for end products.

Features:
- GPIO interface for easy access to Raspberry Pi expansion board
- 10 / 100M adaptive Ethernet port supports PoE power over Ethernet
- 4x USB ports enable connecting more USB devices
- 2x CSI camera interfaces
- HDMI and DSI interfaces for connecting displays
- Interface for USB TO UART makes serial debugging easier
- Cooling fan interface can be set to automatically run when power-on or be controlled by IO pins
- Adopts isolated SMPS (Switching Mode Power Supply)

Specifications:
- Power supply: micro USB port / PoE Ethernet port
- PoE power input: 37V ~ 57V DC
- PoE power output: 5V 2.5A DC
- Network standard: 802.3af PoE standard

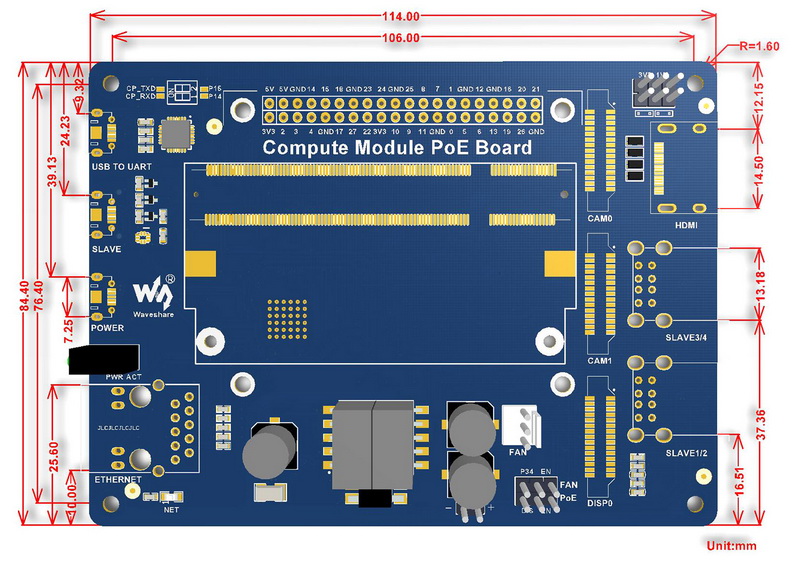

- Mounting hole size: 3.2mm

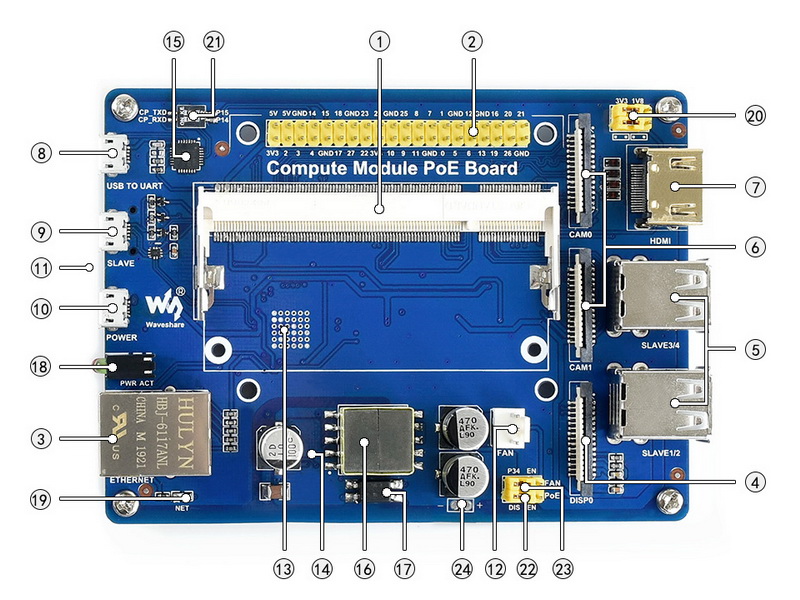

Core Interfaces:
1. Interface for Compute Module: for connecting Compute Module 3 / 3 Lite / 3+ / 3+ Lite
2. GPIO Interface for Raspberry Pi: for connecting Raspberry Pi HATs
3. PoE Ethernet port: 10/100M self-adaptive. For connecting router or switch with PoE function
4. DSI Display Interface: for connecting Raspberry Pi LCD
5. USB Ports: 4x USB ports for connecting USB devices
6. CSI Interfaces: 2x CSI camera ports for connecting Raspberry Pi Camera
7. HDMI Port: for connecting HDMI devices
8. Interface For USB TO UART: for serial debugging
9. USB SLAVE Interface: for you to burn system image into Compute Module 3/3+
10. Power Supply Port: 5V 2.5A
11. TF Card Slot (Back Side): for inserting a Micro SD card with pre-burnt system, to start up Compute Module 3/3+ Lite variant
12. Cooling fan interface

Premium Components:
13. LAN9514 (Back Side): fully-integrated USB hub and 10/100M Ethernet controller
14. Si3404 PoE power management chip (Back Side)
15. CP2102 USB TO UART converter
16. EP13 PoE power transformer
17. Optical-isolator
18. Two LED Indicators:
       Red: power indicator for Raspberry Pi
       Green: operating status indicator for Raspberry Pi
19. NET network indicator

Jumpers:
20. VGx Power Selection Jumper: choose I/O level
21. Serial Output Selection:
      To The Left Side: for connecting CP2102 serial port to Raspberry Pi serial port
      To The Right Side: for disconnecting CP2102 serial port and Raspberry Pi serial port
22.Cooling Fan Configuration:
      P34: The fan is programmed to be controlled via P34 pin
      EN: The fan is directly powered by 5V power supply
23. PoE Enable Pin:
      DIS: disable PoE
      EN: enable PoE
23.PoE power voltage measuring solder joint

Note: Compute module 3/ 3+ is not included. Please purchase separately.


Development Resources:
Wiki : www.waveshare.com/wiki/Compute_Module_PoE_Board

Package Included:
- 1 x PoE Board
