POE NVR8104RA 4-Port 8MP Network Video Recorder POE NVR for POE Cameras Phone Remote Monitoring

POE NVR8104RA 4-Port 8MP Network Video Recorder POE NVR for POE Cameras Phone Remote Monitoring

Advantages:
- Support 8MP pixels
- Smart265 encoding
- Preview playback
- Power failure protection
- Motion detection
- IPC is centrally managed
- Mobile phone remote
- Turn on recording with one click
- Support for ONVIF protocol
- Network monitoring
- Cloud storage

Features:
- 8MP Ultra HD POE NVR with 4K ultra-clear output.
- One network cable can be used for network connection and power supply. Only one network cable is required to power your camera and transmit video signals. No power supply, no power cord or switch. Plug and play. Simple and convenient to use.
- Intelligent protection prevents from POE power overload. With built-in POE control chip, it can automatically detect, identify POE devices and protect IP terminals from damage. Stable power supply and longer service life. 48V standard POE power supply. Due to lightning protection, your equipment will not burn out.
- With high-performance processor, it can connect 8MP HD video. It adopts a number of IT high-tech, such as video and audio codec technology, embedded system technology, storage technology and intelligent technology. It supports 4K ultra-high-definition display and supports up to 8MP high-definition access. 1X smoothness: Double the smoothness of the picture without increasing bandwidth costs. It supports smooth playback even with low bandwidth.
- One-click remote monitoring: support mobile phones, computers, tablets and other multi-terminal viewing, without distance constraints. Users can easily understand the situation remotely with one click anytime, anywhere.
- Transmission distance can reach up to 250m/820.2ft, which meets the needs of long-distance installation. Intelligent port identification control. Support long-distance power supply without dialing.
- It is easy to operate graphical interfaces. With flat design and Win10 style, it is convenient to use.
- Multiple users can view the monitoring screen in real time on multiple platforms. Support multi-platform and multi-user viewing, real-time sharing, and regular optimization and upgrade of the client. For iPhone, Android and Windows

Product Parameters:
System:
- Main processor: Hisilicon Hi3536D
- Operating system: Embedded operating system for LINUX
- System resources: simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-channel multi-channel network operation and USB backup

Client System:
- Computer clients: for XM VMS, CMS, VMS Lite
- Mobile client: FOR XMEYE, XM FAMILY and ICSEE

Operation Interface:
- Operation interface: 16-bit true color graphical menu operation interface and support operation via a mouse
- Screen display: 1/4/9/10 screen

Video:
- Video access mode: 10CH 4K (8MP)
- Access bandwidth: 80Mbps
- Forwarding bandwidth: 36Mbps
- Image decoding: H.265AI/H.265+ (compatible with H.265/H.264)
- Monitoring quality: Max 1560*1440
- Playback quality: 4K/5M/1080P
- Decoding capability: 10CH 4K
- VR features: Not supported
- Humanoid face detection: Used with the current mainstream XM front-end IPC, it supports face detection and humanoid recognition

Audio:
- Audio compression: G. 711A
- Language intercom: Support 1ch audio output and not support voice intercom

Video Recording and Playback:
- Video recording mode: manual > alarm> dynamic detection > timing
- Local playback: 1CH 4K; 2CH 5MP; 2CH 1080P
- Video query: point-in-time retrieval, calendar retrieval, event retrieval, channel retrieval and face retrieval
- Video saving: your hard disk and network (hard disk is not included in the package)
- Backup method: network backup, USB portable hard disk, USB burning and SATA burning

Interface:
- Video output: 1CH HDMI output and 1CH VGA output
- Audio I/O: 0/1 (3.5MM interface)
- Alarm I/O: 0/0
- Network interface: 1 RJ45 10M/100M adaptive Ethernet port
- USB ports: 2 USB2.0 ports
- Hard disk interface: 1 SATA interface (each supports up to 8T)
- ESATA: None
- POE: 4-port

Other Parameters:
- For ONVIF: Yes
- Power supply: DC52V 1.85A
- Power consumption: <120W (without hard disk)
- Working environment: 0°C to +55°C, 10%-90%RH and 86kpa-106kpa
- Dimensions: 25.5 x 22 x 4cm/10 x 8.7 x 1.6"
- Weight: approx. 1.2KG/2.6LB

Attention:
Dear users, please pay attention to the installation position and angle of the camera and avoid strong light and backlight installation to prevent affecting the overall effect. For example, you can install your camera outdoors and monitor the room, or install the camera indoors and monitor the interior, or install the camera outdoors and monitor the doorway. But you can't install the camera at the indoor monitoring doorway, or install the camera on the indoor monitoring balcony. The installed camera cannot face strong light, extra white, glass, water surface and other environments that are easy to reflect and white.

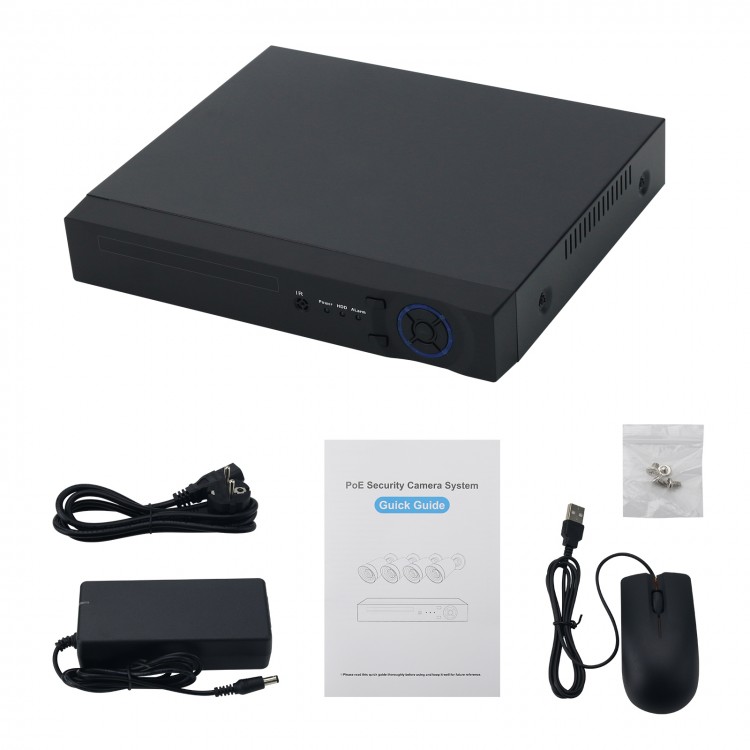

Package Included:
- 1 x Main unit
- 1 x Power adapter
- 1 x Power cable
- 1 x Bag of fixing accessories
- 1 x Mouse
- 1 x User manual

Note:
- Hard disk is not included.
