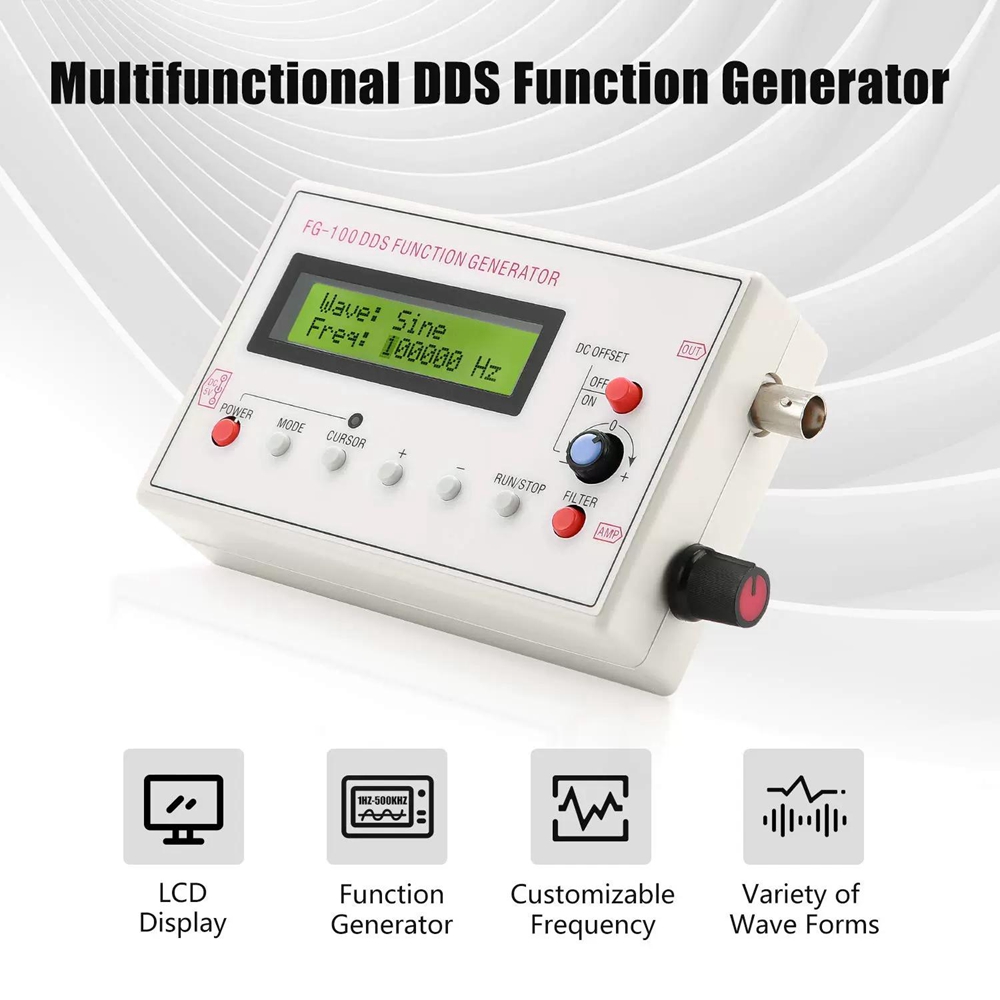

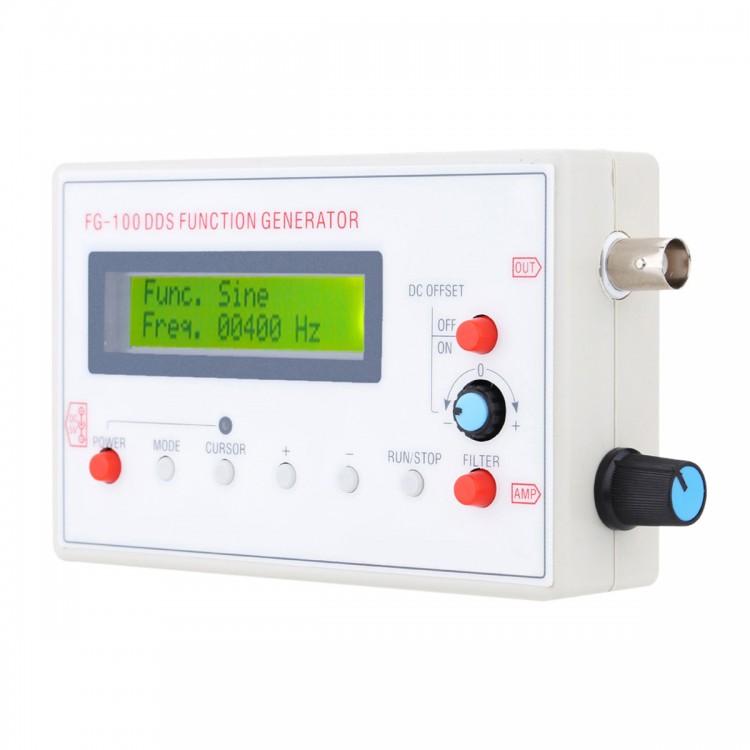

Portable FG-100 DDS Function Signal Generator 1Hz-500KHz Low Frequency Sine/Triangle/Square/Sawtooth Wave Signal Generator
Features:

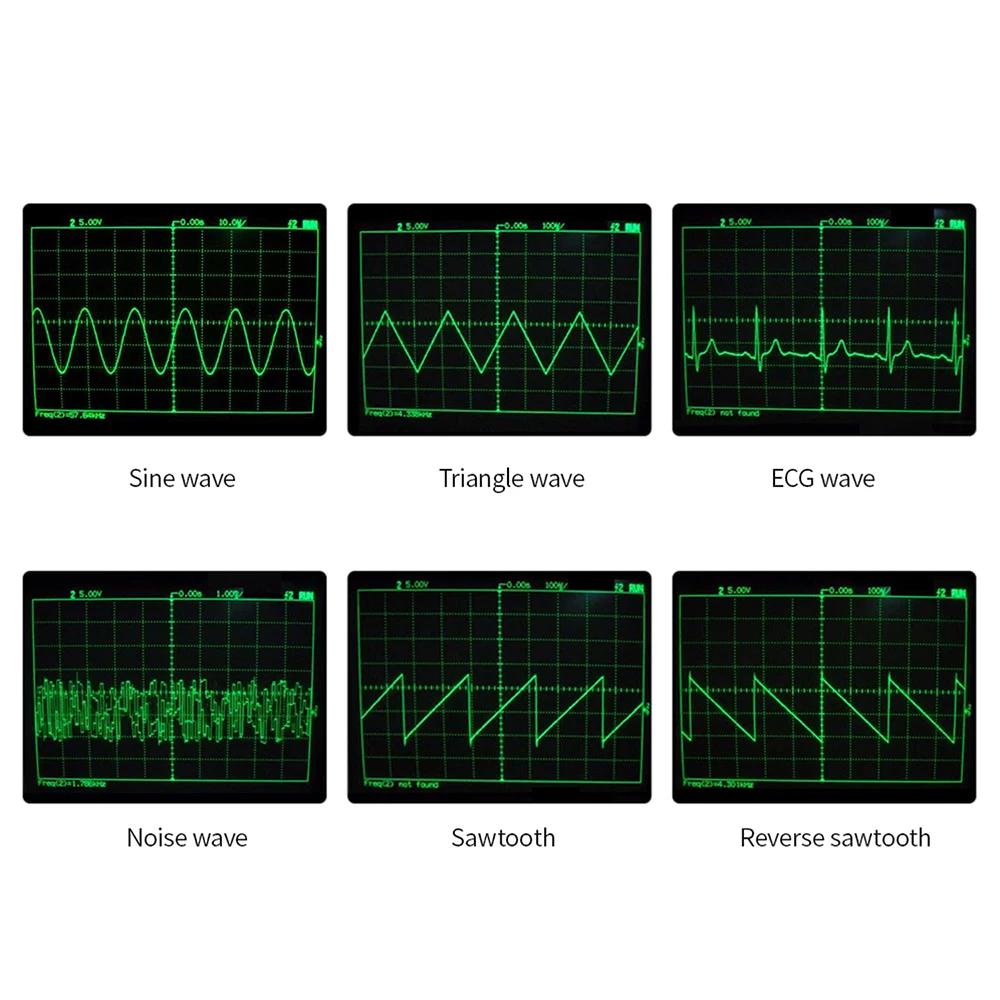

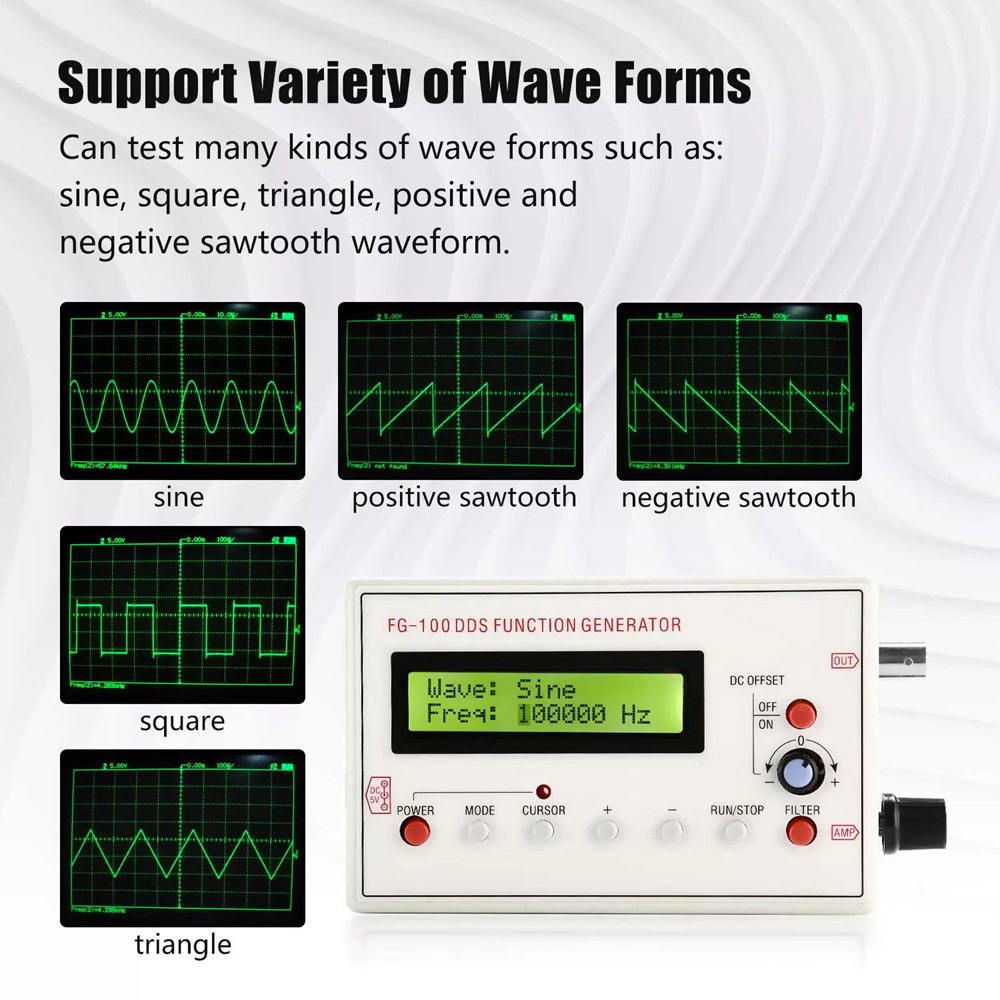

- Output Waveform -- Sine, wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram wave (ECG wave), noise wave.
DDS Frequency Range -- Sine wave 1- 500KHz (the output amplitude will decrease with the further increase of frequency), other waveforms 1 Hz-50KHz (but the upper limit of adjustable frequency is not limited, if the distortion and shaking requirements are not high, use the frequency can be further increased).

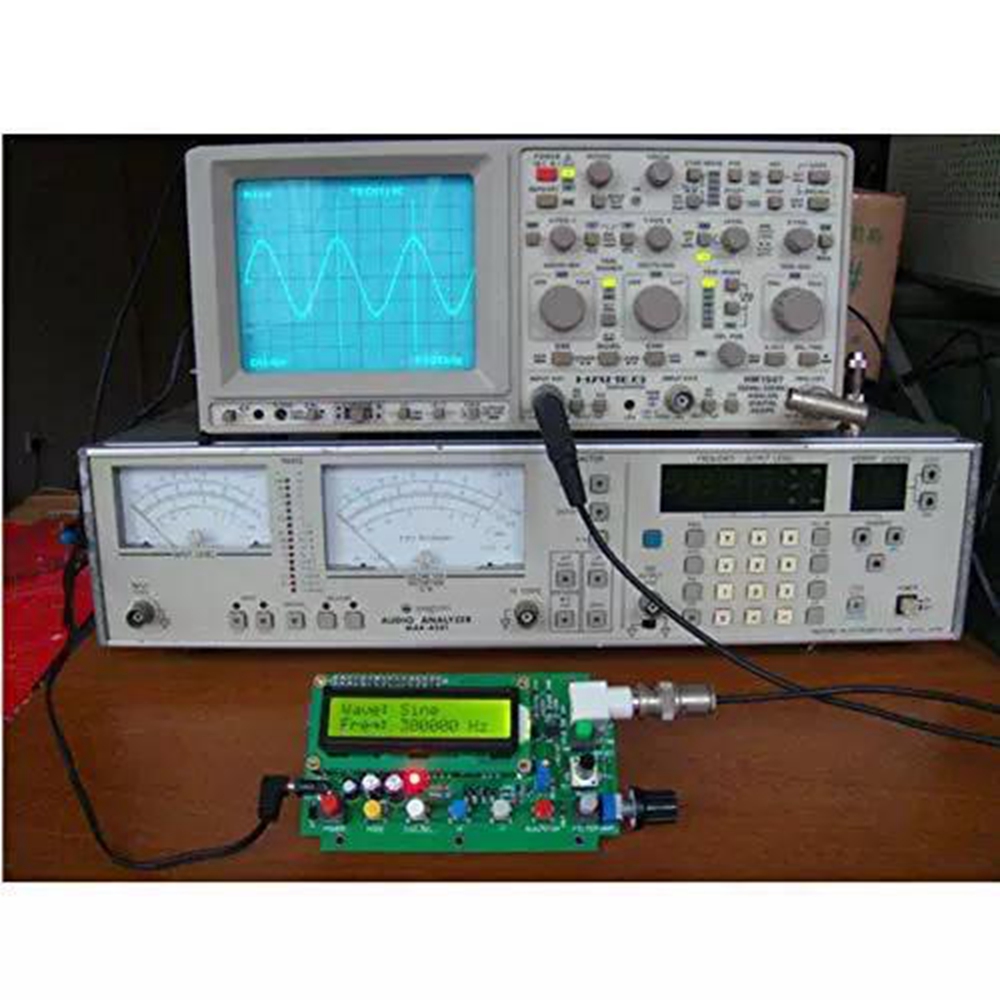

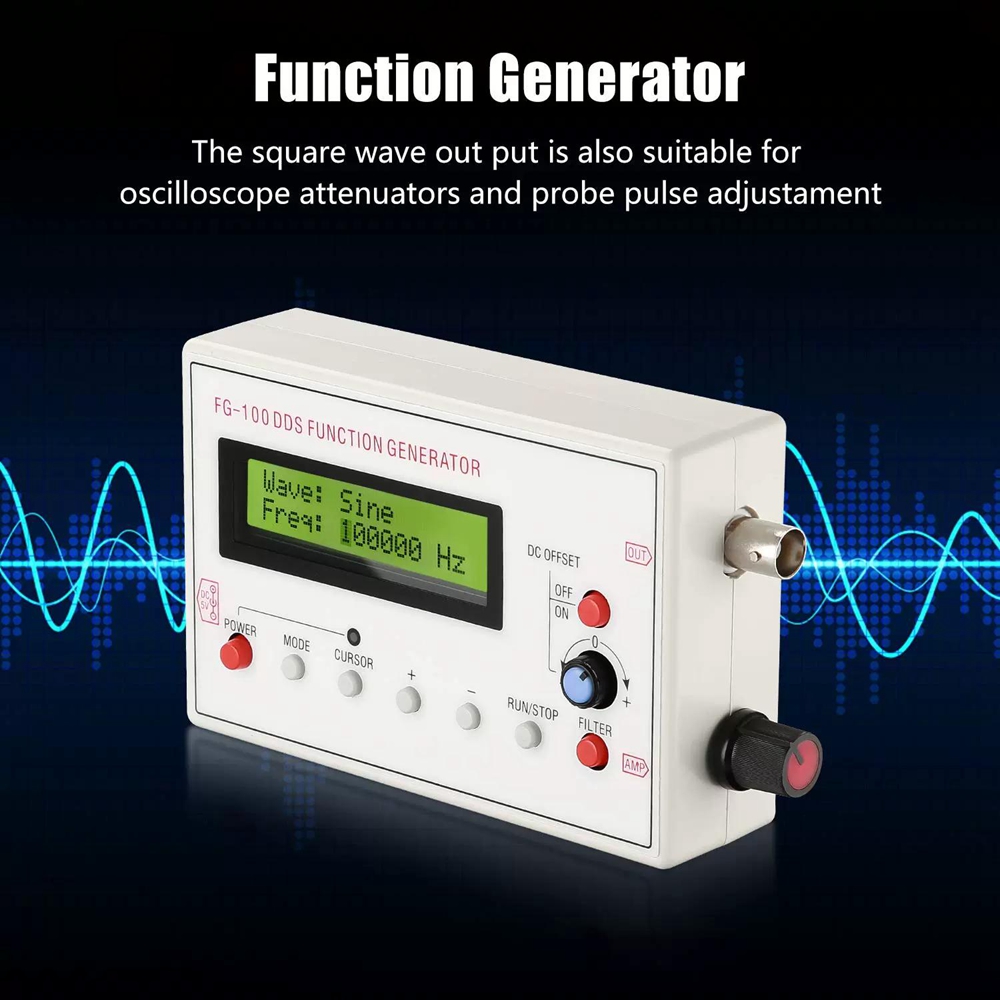

- Application -- Due to the excellent DSS accuracy and frequency stability, it can also be used to calibrate the sweep time factor for oscilloscopes. You can also use its square wave to calibrate your oscilloscope attenuator or adjust your oscilloscope probe
- Versatile Power Supply -- Its power supply can be either DC adaptor or a Lithium battery. Power supply range DC 4-10V, it is recommended to choose DC 5V when using the adapter, and 3.7V lithium battery when using battery power.

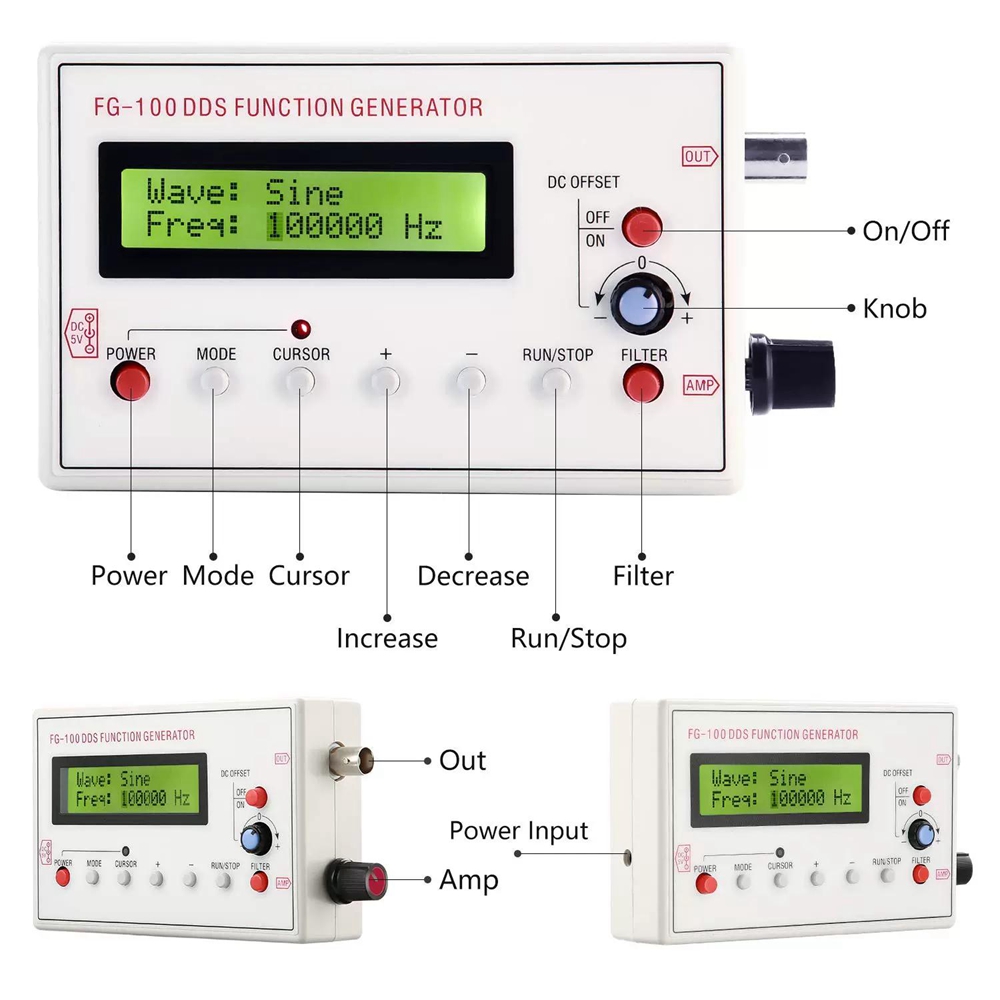

- Large LCD Screen -- Large LCD display with backlight for easy instant reading. Labeled function button for easy operation. Working with an oscilloscope, it can be used to troubleshoot the electronic circuit, characterize the audio amplifier frequency response or measure the impulse response.
- Have a filter (can be opened and closed) to suit the output of sine wave and pulse wave.
- Mini and portable design with multiple functions and easy operation.
Specification:
- Model: FG-100

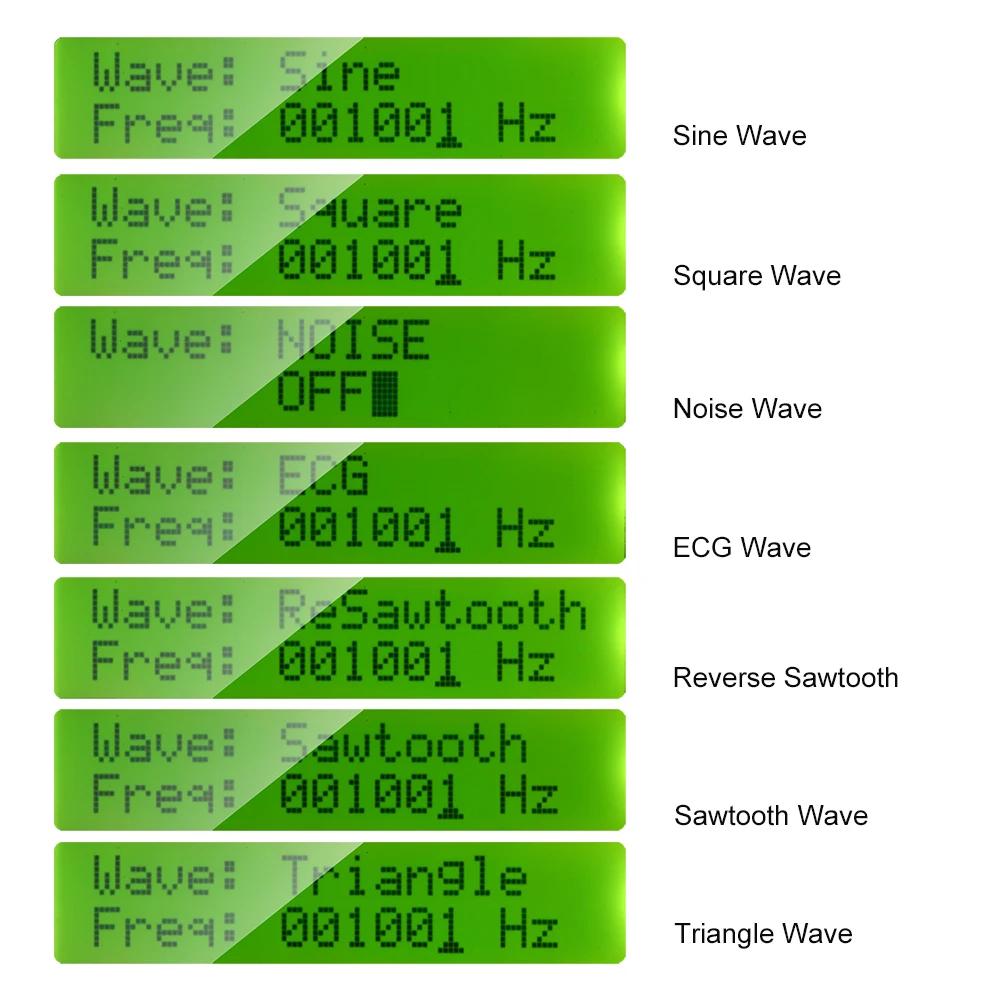

- Output signal type: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave
- Frequency range: 1Hz - 500KHz for sine wave, and 1Hz - 20KHz for other waves
- Display: colorful LCD
- Resolution: <1% below 1kHz, <0.5% above 1kHz
- DC offset range: +/- 10V (with shutdown function)
- Output range: +/- 10V (PP)
- Output impedance: 50ohms
- Power supply voltage: DC 3.5 - 10V

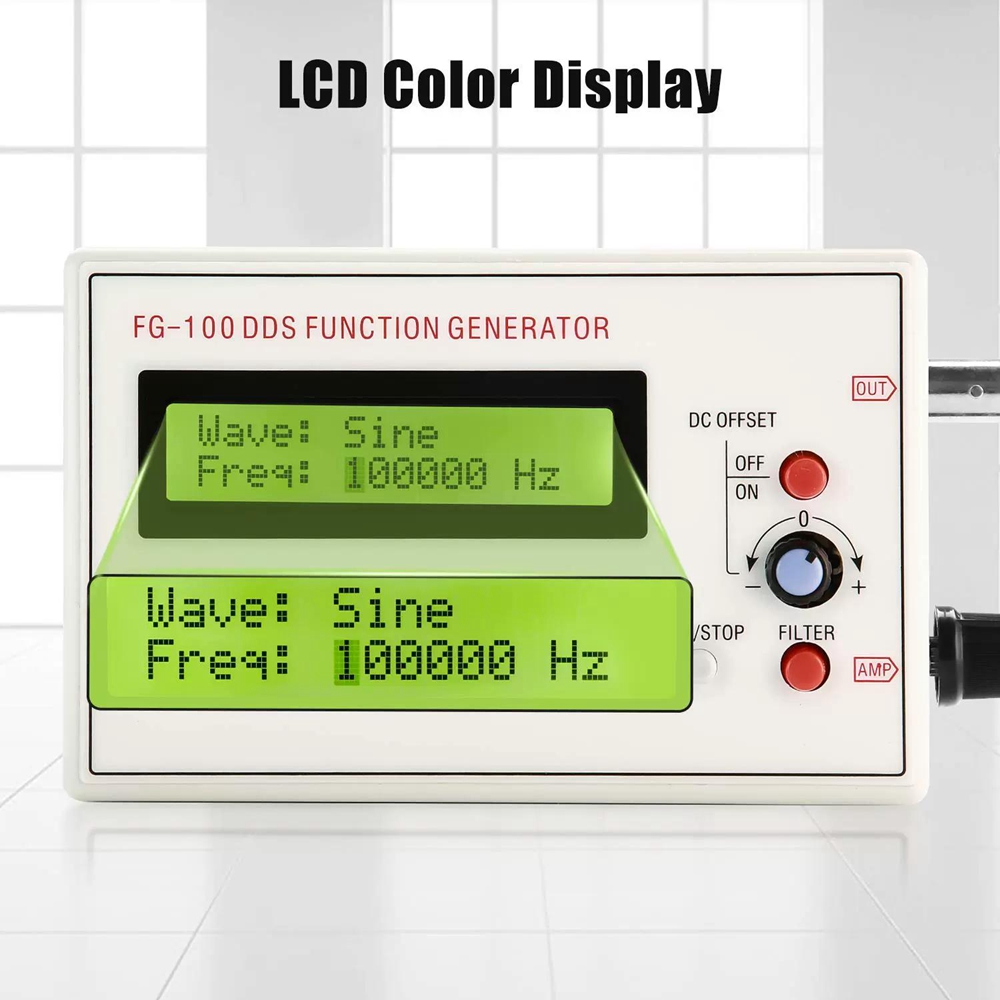

- LCD color screen: The DDS generator is equipped with an LCD color display screen, which displays the type and frequency range of sound waves, and supports self setting and adjustment of frequencies.

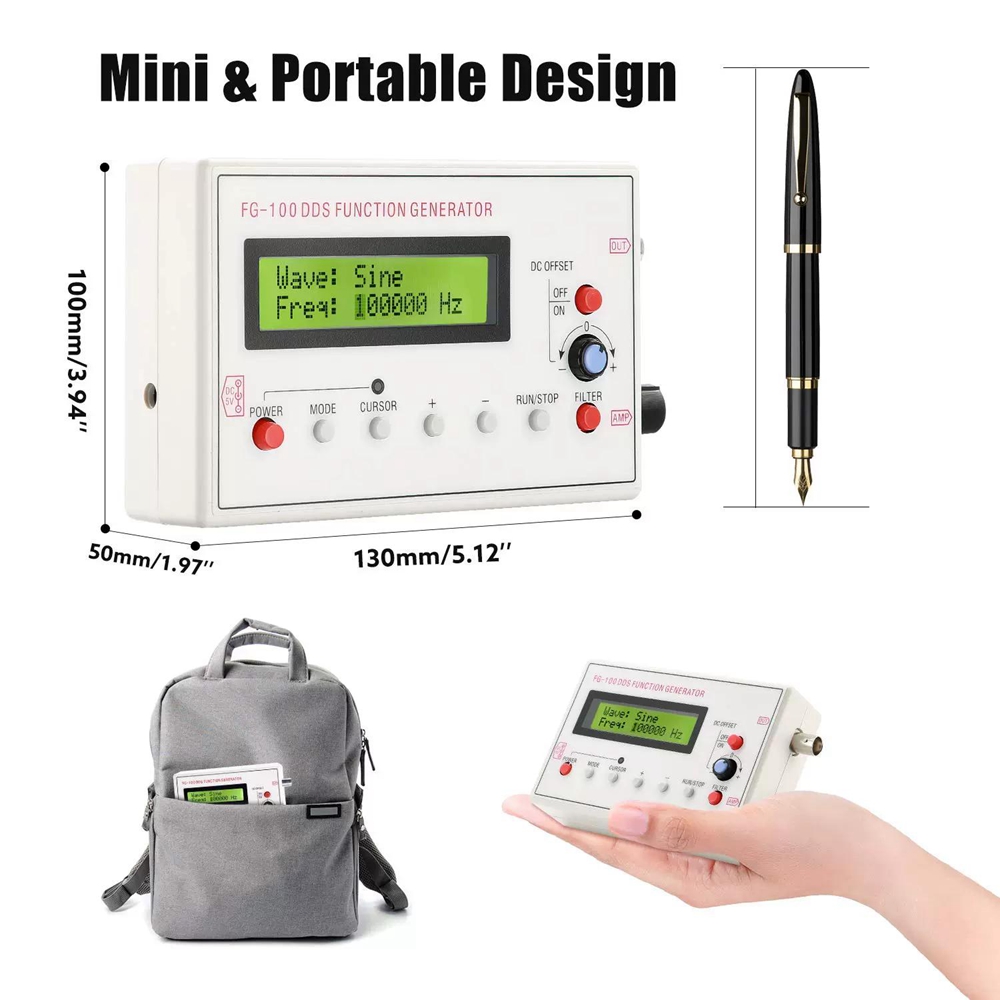

- Product size: 130 x 100 x 50mm/5.12 x 3.94 x 1.97 inches
Package Included:

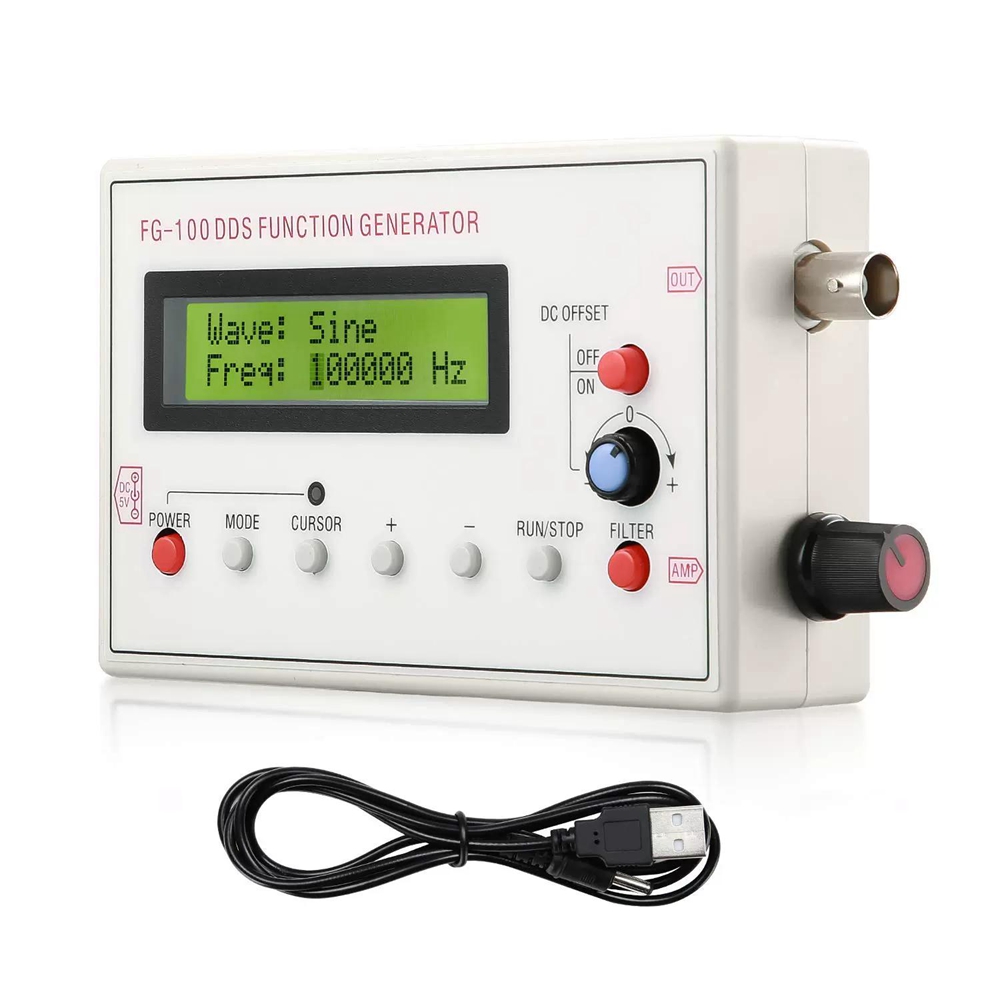

- 1 x Signal Generator
- 1 x USB to DC Power Cable
- 1 x User Manual
