Portable Mobile Phone Oscilloscope For Android Logic Analyzer Oscilloscope 100KHz TWF102

Portable Mobile Phone Oscilloscope For Android Logic Analyzer Oscilloscope 100KHz TWF102

Description:
TWF102 includes 2 high-speed channels with a maximum sampling rate of 100KHz, 3 common ADC sampling channels with a maximum sampling rate of 10KHz, and 8 common ADC channels with a maximum sampling rate of 10Khz, and these 8 channels can also be digital waveform input channel, the time accuracy can be accurate to 1us.

Contains a signal output channel, which can output sine wave, triangle wave, and custom waveform. Two ground connection ports, a total of 13 signal sampling ports, 1 signal output port, 2 ground connection ports.

Rich software functions to support pulse width and amplitude measurement of every channel, waveform count, and rising edge trigger, falling edge trigger, level trigger, single work, continuous work, etc. The software will continue to update and continue to support various digital analysis.

Features:
- Mobile phone oscilloscope can analyze communication protocol
- Input voltage range: 0-15V
- Signal output voltage range: 0-3.3V
- High speed 100Khz sampling channel: 2
- Normal 10Khz sampling channel: 11
- Convertible to digital sampling channels: 8
- Digital waveform sampling time accuracy: 1us
- Built-in capacity: 1500maH
- Support version for Android: 6.0 and above
- Product Size: about 10 x 6 x 2.5cm / 3.94 x 2.36 x 0.98in

For More Materials, Operation Video & APP Download:
www.tootool.top

Package Included:
- 1 x Set of Oscillator

Attention:
After users receive the product, please install flat flexible cable first and make sure that the yellow crocodile clip cable is installed on SIG seat. Then clip all the red alligator clips to the yellow alligator clips.

Note:
Items in different colors will be delivered at random. Please make sure that you don't mind before purchasing. Thank you!

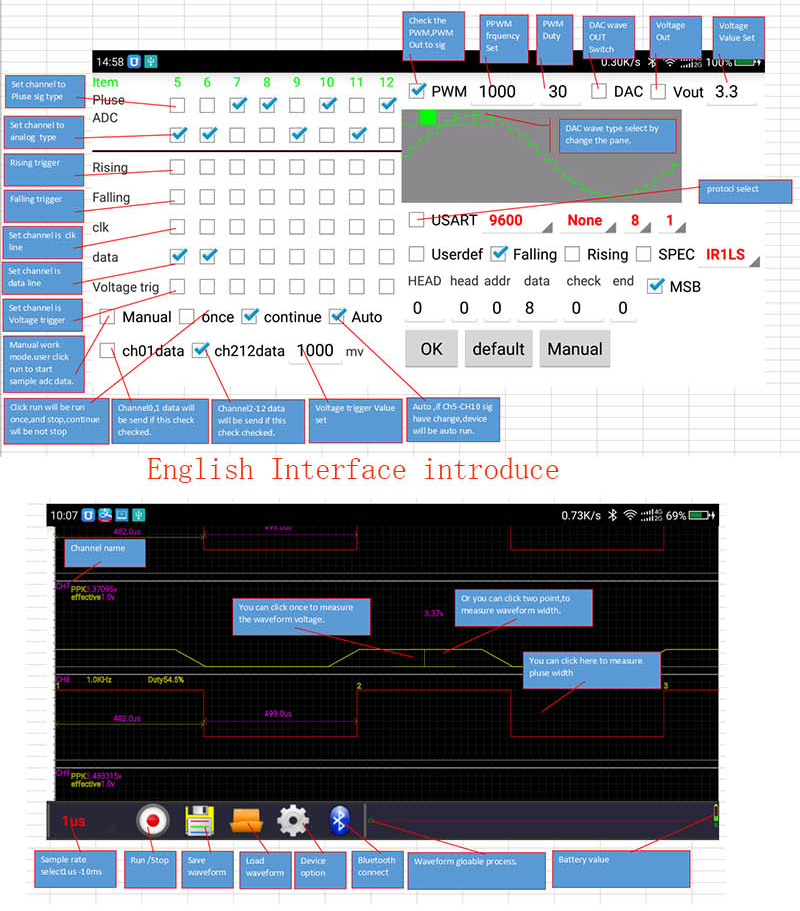

Custom protocol If it is a single-line protocol such as infrared signal, check SPEC, and select a different identification method, the Spec pull-down menu after the far frame.

Description of Pull-down Menu Options:
- IR1LS: Infrared signal, data 1 is low level, and the waveform with short time pulse width.
- IR1LL: infrared signal, data 1 is low level, and the waveform with long time pulse width.
- IR1HS: infrared signal, data 1 is high level, and the waveform with short time pulse width.
- IR1HL: infrared signal, data 1 is high level, and the waveform with long time pulse width.
- Set nine data lengths of 8 bits, if there is a sync header, please set the length of the corresponding HEAD bit.
