Portable Oscilloscope 2 Channel 100MHz 1GSa/s Sample Rate 32Kbits Memory USB2.0 DSCope U2B100

Key Features:

- 2 analog channels
- 100MHz bandwidth
- Up to 1GSa/s sample rate
- Ultra-portable size
- Unibody aluminum case

Connectivity:
- Main Type-C USB 2.0 interface
- Auxiliary Type-C USB interface
- BNC connectors (Standard Probe Interface)

Power Source:
- Power source voltage: 5VDC±5%
- Power consumption: 2.5 W maximum

Input Output Ports:
                                Direction     Descriptions                        Protected Voltage Range
USB 2.0 port             InOut          Connect to host computer     4.75v ~ 5.25v
BNC connectors        Input          Connect to probes                -100v ~ +100v (DC+AC)
Probe compensator   Output        3v // ~1KHz square wave       —

Designed to make your work enjoyable:

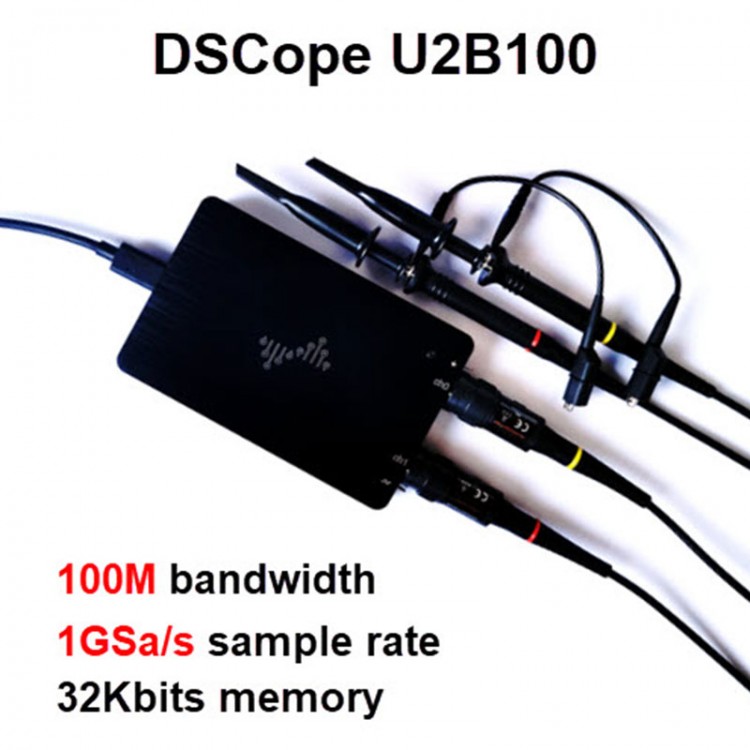

DSCope U2B100 is an USB-based digital oscilloscope, which has a portable size (115x74x16mm), but powerful performance (up to 1GHz sample rate). With the easy-to-use and cross platform software for DSView, you can use your favorite computer to debug and analysis your circuits, observe the analog wave and its frequency spectrum at anywhere and anytime.

Technical Specifications:
Vertical System:
- Bandwidth: 100MHz
- Input coupling: DC or AC
- Input impedance: 1MΩ // ~16pF
- Input sensitivity range: 10mV/Div to 2V/Div
- Vertical resolution: 8bits
- Maximum input voltage:    peaks ≤ ±100V
- DC gain accuracy: ±6%
- Vertical position range: ±5 divisions
- Vertical offset ranges: Volts/Div setting (10mV/Div-2V/Div); Offset range (±100mV ~ ±20V/Div)
- Common mode rejection ratio(CMRR): —
- Channel-to-channel isolation: —

Horizontal System:
- Maximum sample rate(single channel): 1GSa/s
- Maximum sample rate(dual channel): 500MSa/s
- Time base range: 2ns/Div to 100ms/Div
- Maximum duration of time: 20us (real-time capture)
- Captured at highest sample rate (all channels): 32us (single capture)
- Record Length (real-time capture):
* 10K (2 channels enabled)
* 20K (1 channel enabled)
- Record Length (single capture):
* 16K (2 channels enabled)
* 32K (1 channel enabled)

Trigger System:
- Trigger mode: Automatic
- Normal (ch0, ch1, ch0 & ch1, ch0 || ch1)
- Trigger position range: 1% ~ 99% of record length
- Trigger hold-off range: 1 us ~ 10 s
- Trigger types: Edge (rising or falling)
- Sensitivity: 0 ~ 0.625 vertical division
- Trigger level ranges: ±4.4 vertical division from center screen

Waveform Measurements:
- Cursors: Horizontal Width/Frequency/Period/Duty Vertical Amplitude
- Automated measurements:
* Frequency / Period / +Duty /- Duty / +Count
* Rise / Fall / +Width / -Width / BrstW
* Amplitude / High / Low / RMS / Mean
* Pk-Pk / Max / Min / +Over / -OVer

Waveform Math:
- FFT:
* Spectrum magnitude
* Length: 1K ~ 8K
* Vertical scale: Linear RMS or DBV RMS
* For Window: Rectangle, Hann, Hamming, Blackman, Flat_top
- Math: Add / Subtract / Multiply / Divide

Waveform Display:
- Time domain: Real-time viewSingle capture view
- X-Y mode: Lissajous Figure

System Requirements:
- For Windows XP, Vista, Win7, Win8 & Win10
- For Mac OS X 10.12 or above
- For Linux: recent Ubuntu, Fedora, Arch, etc.
- USB 2.0 Host port

Package Included:
- 1 x DSCope U2B100 (Fully tested)
- 1 x USB2.0 Data Cable(1.0M length, A to Type-C)
- 2 x P6200 Probes
- 1 x Carrying Case

Download Software Here:
https://www.dreamsourcelab.com/download/
