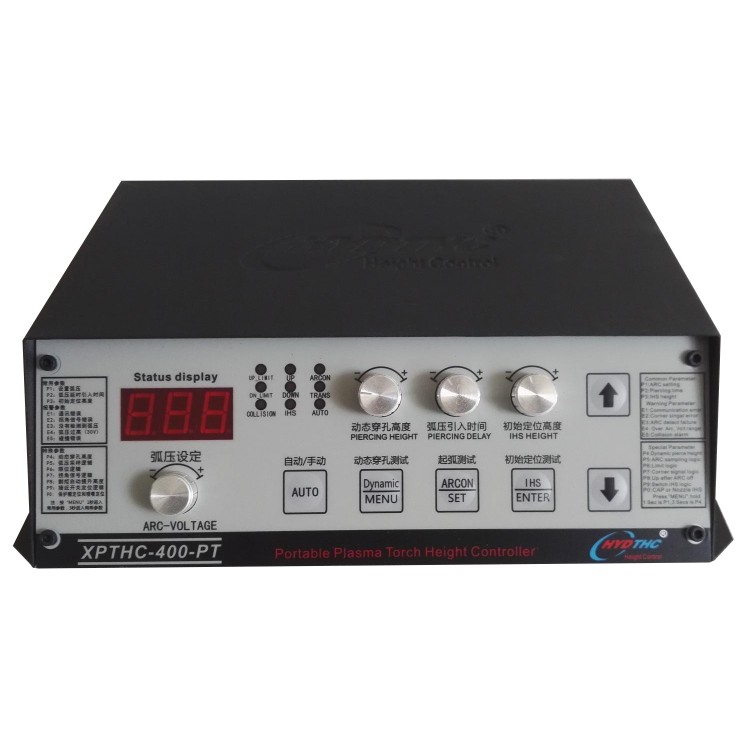

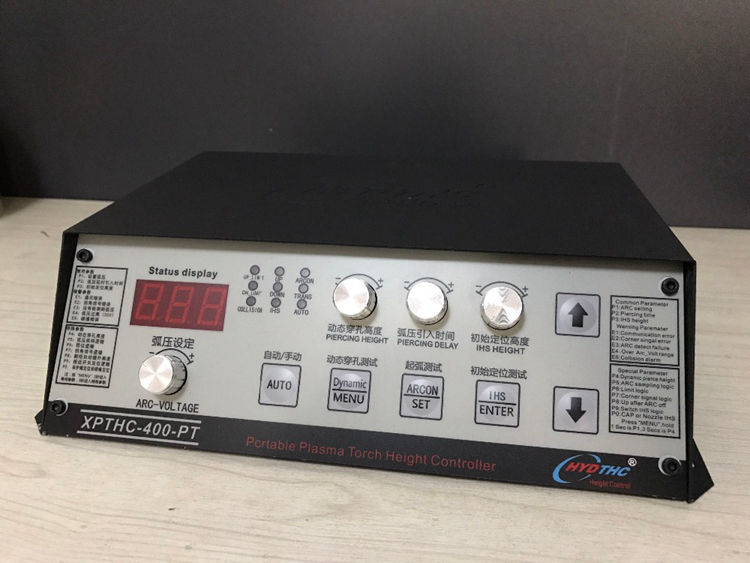

Portable Torch Height Controller THC for ARC Voltage CNC Plasma Cutting Machine XPTHC-400-PT

Portable Torch Height Controller THC for ARC Voltage CNC Plasma Cutting Machine XPTHC-400-PT

Description:
XPTHC-400-PT is a basic constant current characteristic of plasma power supply. It detects the change of the torch height in the plasma cutting process by detecting the change of the plasma arc voltage, and realizes the height control of the cutting torch. It is suitable for most imported and domestic plasma models.

Technical Parameters:
- Working power supply: DC24V±10%
- Adaptation motor: DC24V DC motor.
- Drive mode: PWM (pulse width modulation mode).
- Output current: 1A to 2.5A, maximum power 30W.
- Working temperature: height adjuster -10 to 60℃.
- Initial positioning mode: contact switch positioning method & proximity positioning mode.
- Run transmission mode: detect arc voltage enable, pierce complete output.
- Partial pressure ratio: 50:1
- Control accuracy: Set the arc voltage and actual arc voltage ±1V to ± 3V, which is related to the user's lifting mechanism and motor starting voltage.
- Dimensions: Length X Width X Height: 254mmX171mmX70mm.
- Cutting torch lifting speed: 1000mm / min to 4000mm / min (recommended 2500mm / min).
- Set the arc voltage range: 30V to 250V, which can be modified according to different application occasions.
- Overload protection mode: PWM pulse width adjustment, overcurrent protection.
- Maximum cutting tracking test speed: 10000mm / min (related to the user's starting body voltage and speed and sensitivity settings).

Package Included:
- 1 x Torch Height Controller
