Portable Veterinary Ultrasound Scanner For Small Animals Dogs Cats Sheep GDF-A4

Portable Veterinary Ultrasound Scanner For Small Animals Dogs Cats Sheep GDF-A4

Description:
GDF-A4 is a practical veterinary B-ultrasound diagnostic system. Its embedded operation system greatly improves the product performance, achieving stronger data process ability and fast process speed. Pop-up menu and keyboard design bring more convenient to users. The device is applicable to the measurement and calculation of the obstetric for sheep, cat, dog and other animals.

Main Functions:
- For pregnant animals
- Master postpartum uterus recovery
- Diagnosis of uterine diseases
- Observing embryo development
- Measuring fetal heart rate
- Estimate the number of babies

Specifications:
- Model No.: GDF-A4
- Monitor Size: 5.0 Inch LCD Screen
- Storage Capacity: up to 128 images
- Electrical capacity: 3000mAh
- Optional Probe: 2.5Hz, 3.5Hz, 5.0Hz (Default Probe: 3.5MHz)
- Max. Scan Depth: 190mm
- Multicolor Display: Red/Yellow/Blue/Black

Parameters of Default Probe 3.5MHz:
- Axial Direction: ≤2 (Depth≤80)
- Dead Zone: ≤8mm
- Geometric position Accuracy (%):
Horizontal direction: ≤ 20
Vertical direction: ≤10
- Display mode: B, B+B, B+M, M
- Image grayscale: 256 levels
- Image magnification: x1.0, x 1.2, x 1.5, x 2.0
- Built-in memory to store up to 128 images
- Depth (mm): 120~190, 8 adjustable levels
- Measurement function: distance, perimeter, area, volume, heart rate, gestational age
- Character display: case number, age
- Main Unit power consumption: 25W
- Adapter power consumption: 45W
- Net Weight of Main Unit: 800g

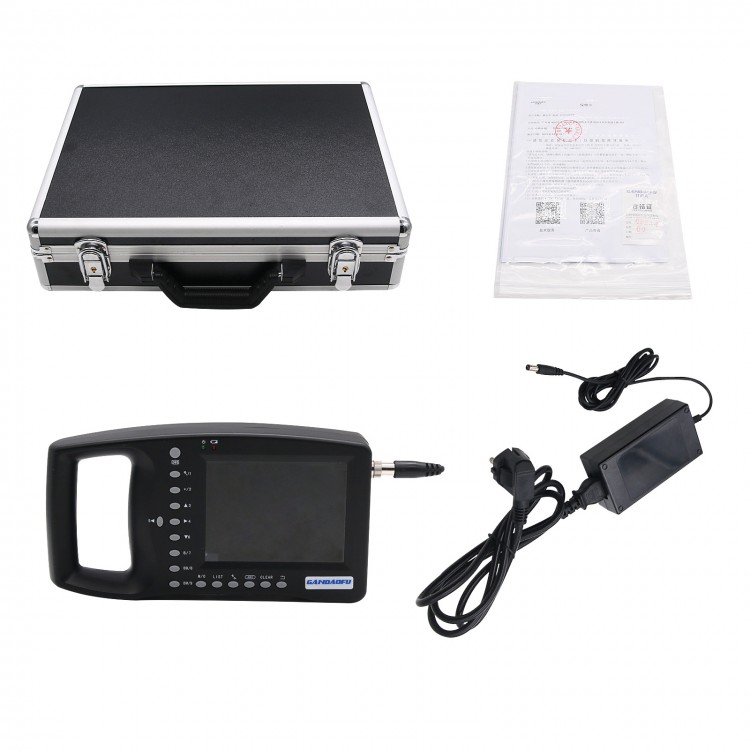

Package Included:
- 1 x Main Unit
- 1 x Probe
- 1 x User Manual
- 1 x Power Adapter
- 1 x Carry Case

Note: Optional Probe: 2.5Hz, 3.5Hz, 5.0Hz (Default Probe: 3.5MHz). Please tell us the one you want when purchasing. Thank you!
