Portapack H2 Mini + HackRF One R9 V2.0.0 SDR Radio Receiver with Five Antennas and Signal Amplifier

Portapack H2 Mini + HackRF One R9 V2.0.0 SDR Radio Receiver with Five Antennas and Signal Amplifier

Upgrades of HackRF One R9:
MAX2837 is replaced by MAX2839. Si5351C is replaced by Si5351A with additional clock distribution. A series diode is added to the antenna port power supply.

Attention:
1. The latest firmware is supported, and the current firmware is Mayhem firmware V2.0.0 by default.
2. For certain functionality, like the world map, GPS simulator, and others, you need to prepare a PortaPack H2 and a FAT32 formatted MicroSD card over 1G.

HackRF One Description:
- HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
- Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

HackRF One Specifications:
- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- For GNU Radio, SDR#, and the like
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board

Features:
- Adopt a large LCD display of 3.2 inches, 240 x 320 RGB resolution with a resistive touching screen.
- Wear-resistant functional buttons design, with four-way arrows buttons, a 360° rotation button, and select buttons.
- The built-in microphone, built-in loudspeaker, and external loudspeaker design make it have sound input and output functions, and the built-in loudspeaker and external loudspeaker will switch automatically.
- With a high-precise clock, the resolution is 0.1-0.5 PPM.
- 1MHz-6GHz working frequency band, 20MHz radio frequency bandwidth, and 2 Msps-20 Msps sampling rate can provide outstanding working performance.
- Suitable for wireless communication technology research: ZigBee, WiFi, LTE, ADS-B, DVB, and other wireless application systems; source/channel coding and decoding, modulation and demodulation, sampling, filtering, synchronization, multiplexing, spread spectrum, channel emulation port.
- Information safety technology research: wireless communication attacks such as eavesdropping, coaxing, replay, identity impersonation, blocking, and other attacks; Wireless communication physical layer safety protections: RSSI and CSI-based keys generation, identity authentication, anti-interference mechanism.

Overall Specifications:
- Name: HackRF + Portapack H2 Mini Set
- Material: printed circuit board
- Duplex mode: half-duplex transceivers
- Radio frequency bandwidth: 20M Hz
- Sampling rate: 2 Msps-20 Msps
- Power supply/transmission interface: USB2.0

Transmit power:
- 5-15dBm (10MHz-2150MHz)
- 13-15 dBm (2150-2750 MHz)
- 0-5 dBm (2750-4000 MHz)
- -10 to 0dBm (4000-6000 MHz)
- Received power: -5dBm
- Clock Accuracy: 0.1-0.5ppm
- Working frequency band: 1MHz-6GHz

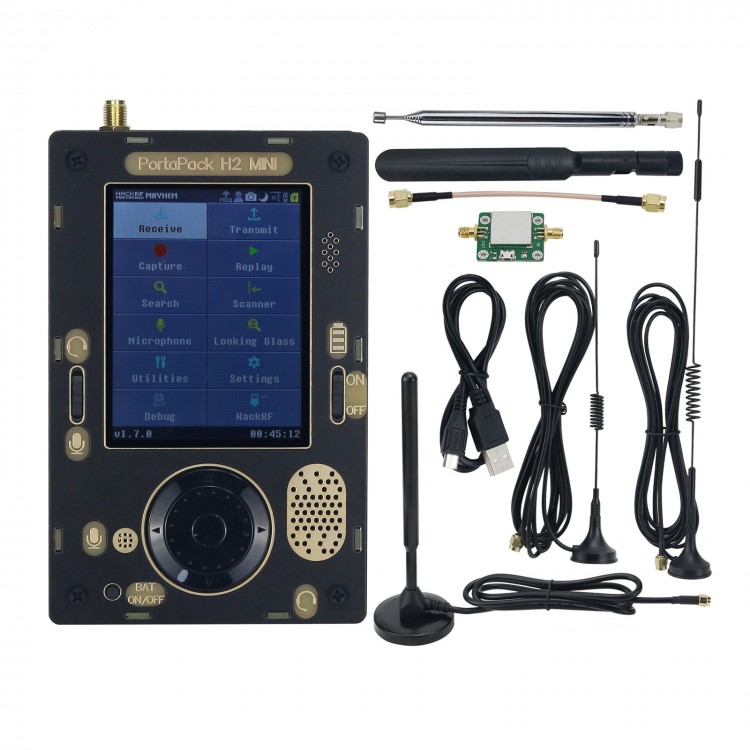

Package Included:
- 1 x HackRF One + H2 Mini + Shell
- 1 x USB Cable for LG
- 1 x 40MHz-6GHz Telescopic Antenna
- 1 x 12dBi 700MHz-2700MHz Antenna
- 1 x 8dBi 2.4/5/5.8GHz Antenna
- 1 x 35dBi 700MHz-2700MHz Antenna
- 1 x 12dBi 700MHz-2700MHz Antenna
- 1 x 20dB 50MHz-6GHz LNA Antenna
