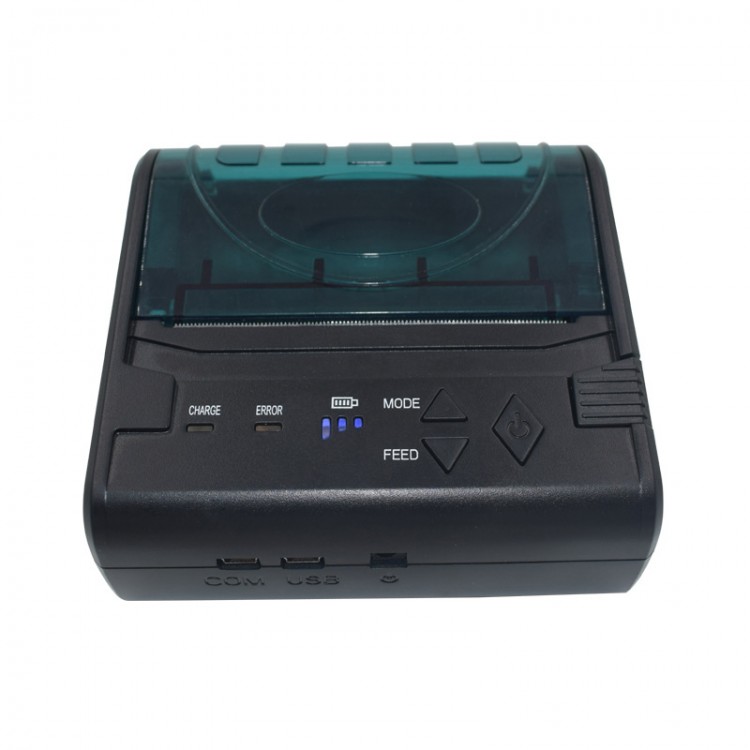

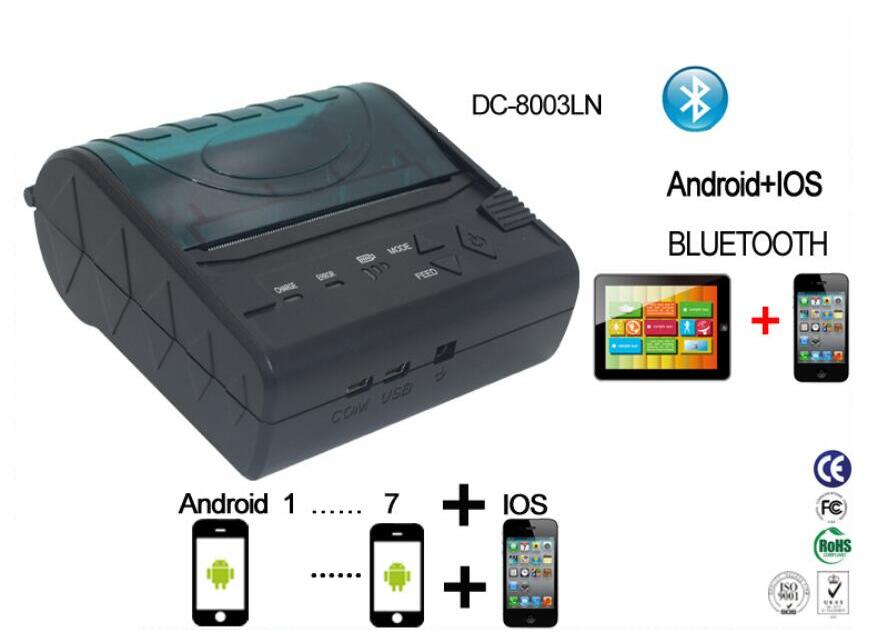

POS-8003LN 80mm MiNi Portable Bluetooth Thermal Bill Printer USB Interface Android IOS System

POS-8003LN 80mm MiNi Portable Bluetooth Thermal Bill Printer USB Interface Android IOS System

Attention:The portable printer is without auto cutter.


POS-8003LN is one-to-many,support one ISO system & seven Android system.

Note:If you need one-dimensional barcode,QR code,you need to pay extra money.(Please leave a message.)

Feature:Small Size,Light weight,simple connection,easy to use.

Description:
- Mode:POS-8003LN
- It applies mobile products to supporting the use,and suited to outdoor work environments
- Application:mobile police affair system,tobacco distribution system,public service meter reading system,mobile office/mobile logistics system,portable instrument/detection equipment corollary equipment.

Specification:
- Basic info and key features
- Item Name:Bluetooth thermal bill printer
- Item Number:POS-8003LN
- It is widely applied to peripherals of mobile products, and suitable for working under outdoor environments
- Low operating costs(No Ribbons or ink cartridges)
- Real-time display battery capacity
- Can arbitrarily switch default printing language
- Print Method:Thermal Line Printing
- Print Speed:>90mm/s
- Reliability:100km
- Resolution:203dpi（8dot/mm）
- Print width:72mm（576 dots）
- Roll Width(Max):80±01mm
- Roll Diameter(Max):φ≤40mm
- Roll Type:Thermal Roll
- Power:Re-chargeable lithium battery
- Battery:7.4VDC/2000mA
- Charging mode:external charger 9V/1.5A
- Dimension:103.8X100X46mm(LxWxH)
- Weigth:407g

Language: Multi-languages
Printing Parameters: Logo download and printing supported
Chinese: simplified traditional Chinese 24x24 point,3.0(W)x3.0(H)mm
Support 18030 font library,support Taiwan and HK traditional(complex font)
Western: ASCII;FontA:12×24 dot
FontB: 9x17dot;Korean:code page 949

Barcode:Extented Character Table:OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/East Europe/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai


Print Command: Compatible with ESC/P0S/STAR
Communication Interfaces:Standard RS232/USB,Bluetooth 2.0/SPP agreement(Optional)
Bluetooth 4.0 (i.e.Iphone 4S,Iphone 5,Mini Ipad)
Working environment:temperature:-10～50℃(T);Humidity:10～90%

Package List:
- 1 x POS-8003LN 80mm Thermal Printer
- 1 x Testing paper
- 1 x USB cable
- 1 x Power adapter
- 1 x User manual
