Potential Sensor Temp Sensor ORP Meter Module with Electrode Water Quality Monitoring 0-5V Output

Potential Sensor Temp Sensor ORP Meter Module with Electrode Water Quality Monitoring 0-5V Output

Description:
The product is convenient to connect with various control devices and display instruments to realize online monitoring of ORP value and temperature status. This product is widely used in various occasions where ORP value and temperature need to be measured and controlled. The user-friendly online one-key calibration function is convenient for users to regularly calibrate and correct the electrodes. Combed with temperature compensation and power-off protection functions, it can effectively complete the conversion, processing, and other processes of the measurement data.

Specification:
Temperature measurement range: -20℃~+80℃
Temperature measurement accuracy: ±0.5℃
Temperature sensitivity: 0.1℃
ORP range: -1000~1000mv
Measuring ORP accuracy: ±3mV@ -1000~1000mv
ORP sensitivity: 1mV
Power supply: DC 12V~24V
Signal output: 0~5V
Load resistance: voltage output: R load ≥ 10KΩ; current output: R load ≤ (Uvcc-3)/0.02Ω
Power consumption: <1W
Storage conditions: 10-50℃(0-125℃ peak), 20-60%RH
Operating environment: 0℃~+80℃, <0.6MPa.
Dimensions: 65 x 46 × 28.5mm³

Features:
Online one-button calibration, real-time temperature compensation, electrode loose alarm, electrode quality alarm during calibration, power failure protection, overcurrent protection, overvoltage protection, high measurement accuracy, fast response, long service life, small size, light weight, easy to install and maintain.

Application:
Suitable for electroplating, fermentation, food processing, sewage treatment, metallurgy and environmental protection.

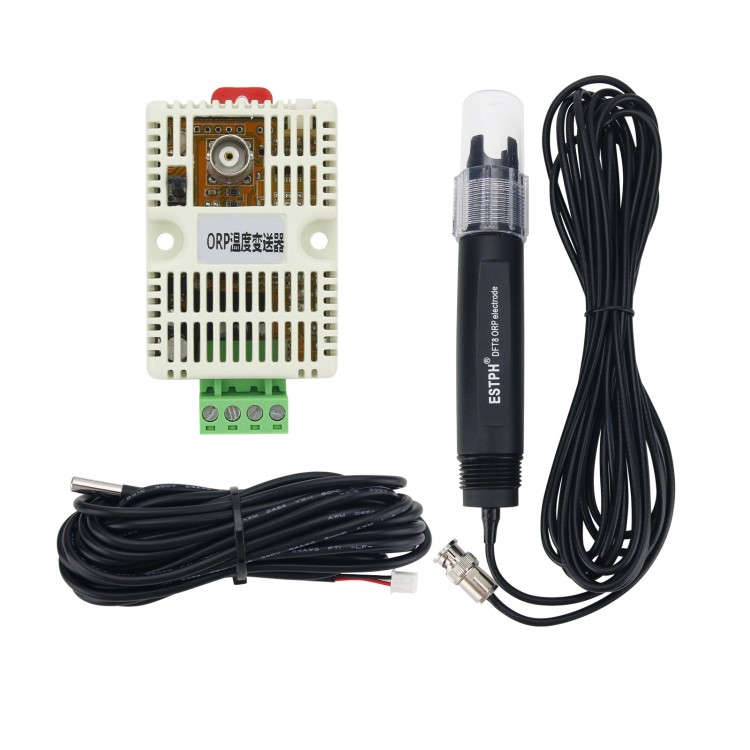

Package List:
-1 x Potential Sensor
-1 x Electrode
