Power Module with 5.3VBEC Galvanometer Current Voltage Measurement Tester for Mini APM
Description:

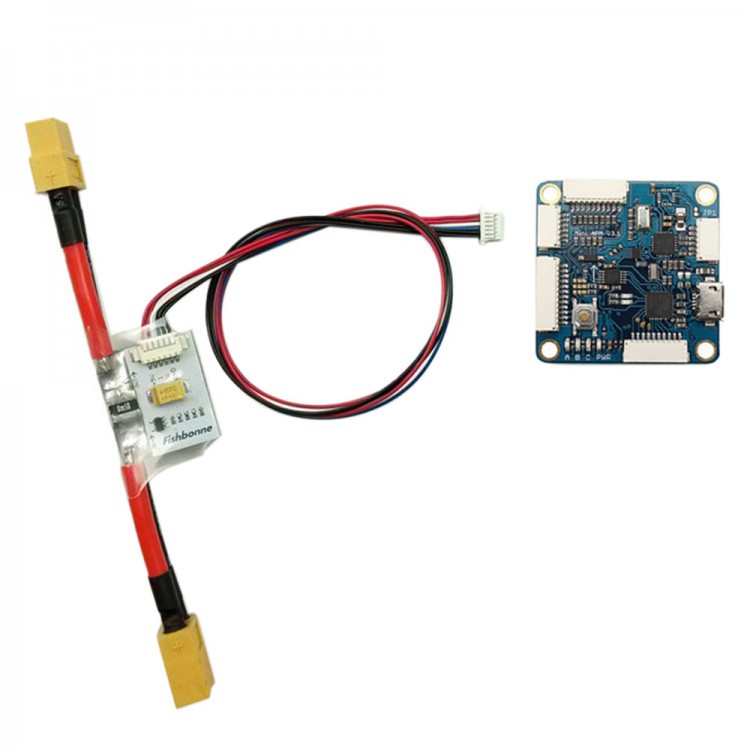

The mini APM Power Module is a simple way of providing your APM with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs DC5.3V and a maximum of 3A. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.
Specifications:
Specification:
- Max input voltage: 25V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max

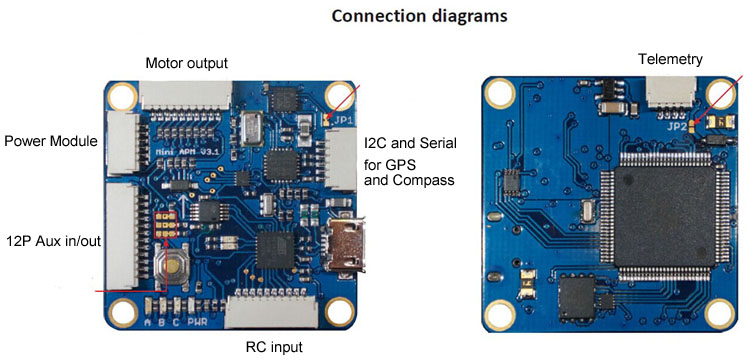

- 6-pos JST SH1.0 cable plugs directly to mini APM 'PM' connector
Package included:
- 1 x Power Module
