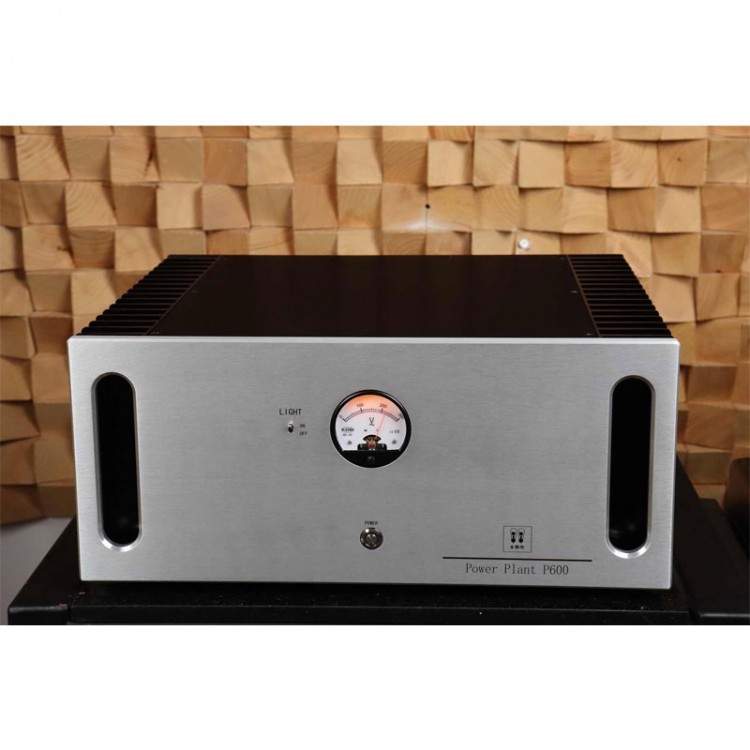

Power Plant P600 600W Power Regenerator Regenerative Power Supply with 6 Outlets for Upgrading

Power Plant P600 600W Power Regenerator Regenerative Power Supply with 6 Outlets for Upgrading

Optional Output Configurations for the Power Supply:
* 220V Output: Six 220V outlets
* 220V and 110V Output: Four 220V outlets and two 110V outlets
* 220V and 100V Output: Four 220V and two 100V outlets
* 220V, 110V, and 100V Output: Two 220V, two 110V and two 100V outlets
* 220V Output and Pass-Through: Four 220V outputs and two pass-throughs
* 230V Outputs

Description:
A regenerative power supply is where the mains power passes through an isolation transformer to eliminate some interference, then rectified into DC to remove various disturbances. It then generates a high-purity AC signal, amplifies it through a power amplifier, and outputs it through the isolation transformer. This way, AC power, DC interference, common-mode interference, and differential-mode interference are all eliminated. Among the tools to eliminate interference, the regenerative power supply ensures complete elimination!

The regenerative power supply features voltage regulation output, from no load to full load, the output is controlled at 220V ±1.5%V, with other output voltages also within ±1.5%.

It has a frequency conversion function, with output frequencies of 50, 60, and 80 Hz.

Our regenerative power supply uses an analog power amplifier. What are its characteristics?
The biggest challenge with analog power amplifiers is that each user has different voltage, or the user's voltage fluctuates a lot. We need to ensure it can work properly within the range of 198V-252V and maintain a stable output of 220V (optional). The efficiency of analog power amplifiers is less than 50%. Products like these are rarely seen in the market; there used to be 100W models, but they are no longer available.

Our team has become proficient in AC voltage regulation technology. We first stabilize the 198-252V AC input to 220V. This greatly improves the amplifier's efficiency, boosting it to over 70%, overcoming the voltage regeneration challenge of analog power amplifiers!

More Features:
* It uses a unique AC voltage regulation technology, first stabilizing the AC input, which greatly improves the efficiency of the power amplifier and ensures the stable and reliable operation of the power supply.
* It uses an EI transformer, which has a magnetic gap and magnetic resistance, offering strong anti-interference capability, especially for high-frequency and DC interference, with strong suppression ability. The EI transformer has a shielded layer grounded, further enhancing its interference suppression capability. Products with EI transformers have a completely black background and a more refined tone! The input transformer uses a 1200W EI transformer, and the output uses a 750W EI transformer.
* The power supply outputs 750W, which can operate for short periods of time. The transient power can reach 1000W. Considering the heat dissipation environment and different user heat dissipation conditions, the power should be limited to no more than 600W.
* The output waveform is very pure, with harmonic distortion less than 0.03%, far lower than the 1% distortion of digital amplifier regenerative power supplies, laying the foundation for excellent sound quality!
* The output uses the high-end 8300 for Hubbell, with wiring using power cables for Prysmian, and an all-aluminum chassis!
* The dimensions are 22CM high, 48CM wide, and 46CM deep.

Package Included:
* 1 x Power Regenerator

Packaging Details:
* Weight: 45kg

Note:
* Power cable is not included.
