Power Splitter PD-0.5/6G-4S 500-6000MHz RF Power Splitter SMA Microstrip Power Divider 1 IN 4 OUT

Availability: In stock, usually dispatched in 1 business day

  • Price:$56.52
  • Price in reward points: 565 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $55.39 $54.26 $52.56 $50.30 Contact US
Quantity:
Buy it now Add cart

You might like

PD-0.5/6-2S 500-6000MHz 2-Way RF Power Splitter Power Divider 2.4G 5.8G Combiner without DC Block

PD-0.5/6-2S 500-6000MHz 2-Way RF Power Splitter Power Divider 2.4G 5.8G Combiner without DC Block

$30.32

(0)
PD-0.5/6-2S 500-6000MHz 2-Way RF Power Splitter Power Divider 2.4G 5.8G Combiner (with DC Block)

PD-0.5/6-2S 500-6000MHz 2-Way RF Power Splitter Power Divider 2.4G 5.8G Combiner (with DC Block)

$55.77

(0)
PD-0.5/6G-4S 500-6000MHz 4-Way Microstrip Power Divider Power Splitter RF Combiner (w/ DC Block)

PD-0.5/6G-4S 500-6000MHz 4-Way Microstrip Power Divider Power Splitter RF Combiner (w/ DC Block)

$77.70

(0)
PD-0.6/6-2N 600-6000MHz Power Splitter 2-Way Microstrip Power Divider RF Combiner with N-K Connector

PD-0.6/6-2N 600-6000MHz Power Splitter 2-Way Microstrip Power Divider RF Combiner with N-K Connector

$50.33

(0)
PD-0.5/6-2S 500-6000MHz Power Splitter 2-Way RF Power Divider 2.4G 5.8G Wifi SMA RF Power Combiner

PD-0.5/6-2S 500-6000MHz Power Splitter 2-Way RF Power Divider 2.4G 5.8G Wifi SMA RF Power Combiner

$30.83

(0)
2-6G RF Power Splitter PD-2/6-4S 2000-6000MHz Microstrip Power Divide 1 IN 4 OUT for 2.4G Wifi 5.8G

2-6G RF Power Splitter PD-2/6-4S 2000-6000MHz Microstrip Power Divide 1 IN 4 OUT for 2.4G Wifi 5.8G

$48.13

(0)
500 - 6000MHz Power Divider One to Two Microstrip RF Power Splitter with SMA Female Connector

500 - 6000MHz Power Divider One to Two Microstrip RF Power Splitter with SMA Female Connector

$35.97

(0)
PD-0.5/6G-4S 500-6000MHz 4-Way Microstrip Power Divider Power Splitter Combiner (without DC Block)

PD-0.5/6G-4S 500-6000MHz 4-Way Microstrip Power Divider Power Splitter Combiner (without DC Block)

$53.80

(0)

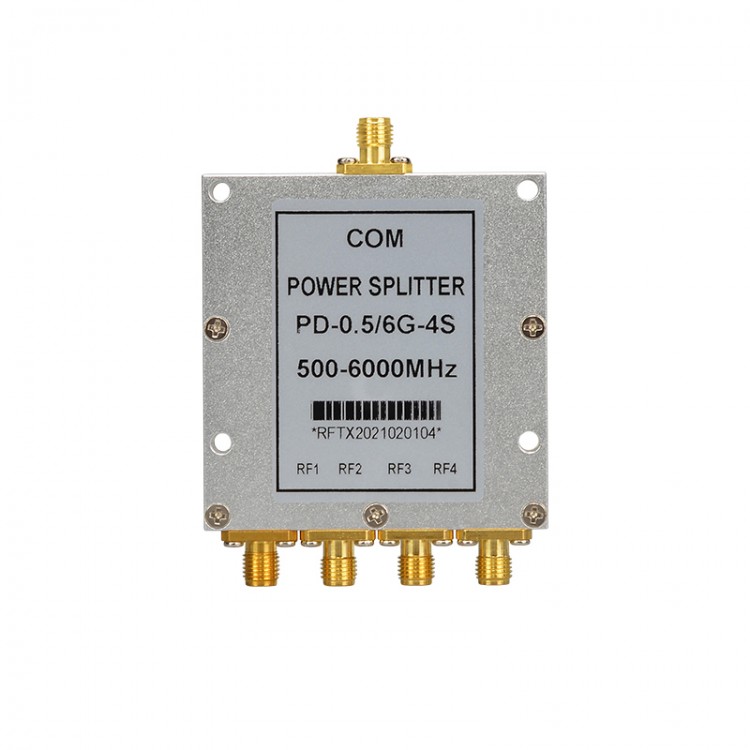

Power Splitter PD-0.5/6G-4S 500-6000MHz RF Power Splitter SMA Microstrip Power Divider 1 IN 4 OUT

Technical Parameters:
- Frequency range (GHz): DC-0.5-6G

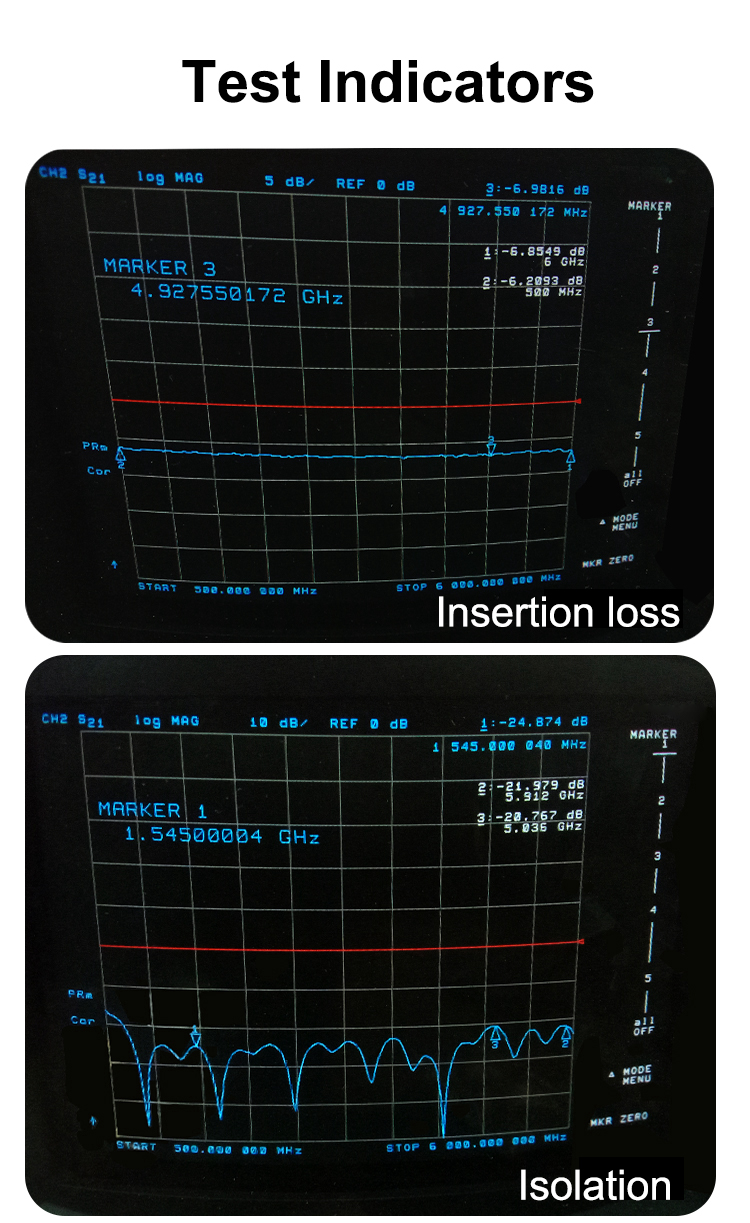

- Insertion loss (dB) (including distribution ratio): ≤ 7.5
- Isolation: ≥ 15dB (at 500M-800MHZ); ≥ 20dB (at 800M-6000MHZ)

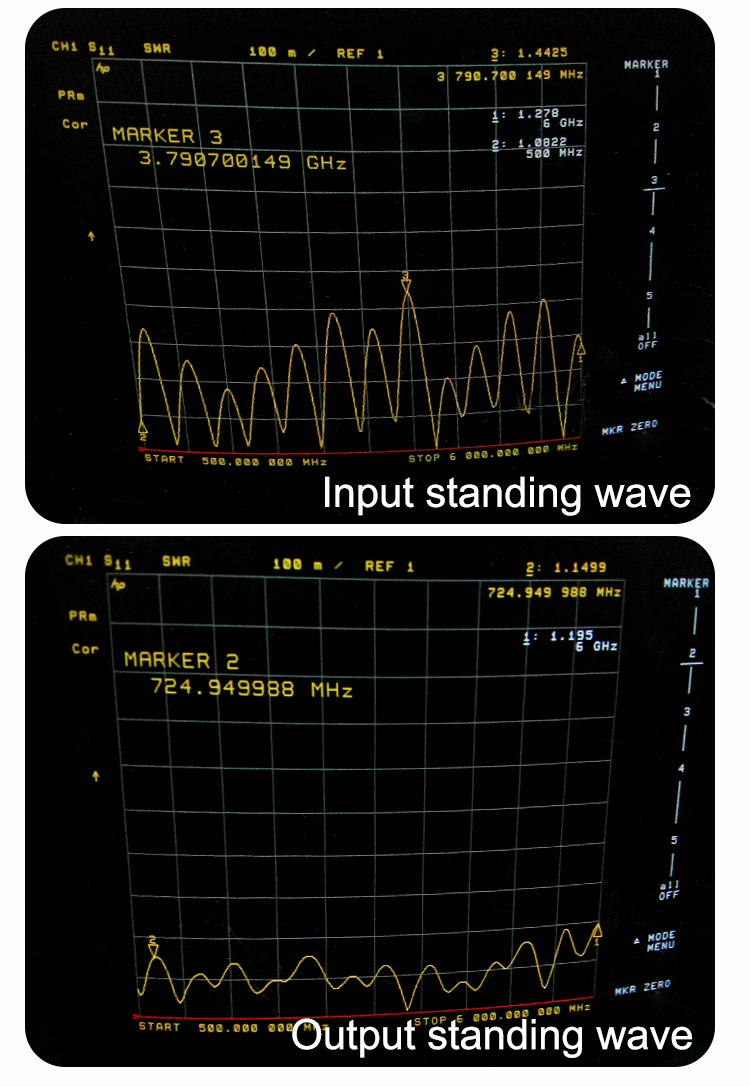

- Input Standing Wave (VSWR): ≤ 1.5
- Output standing wave (VSWR): ≤ 1.3
- Amplitude balance (dB): ≤ 0.3
- Impedance: 50Ω
- Phase balance (°): ±6
- Interface type: SMA-K
- Power Capacity (W): Forward: 10w (Avg.) and 100w (Peak); Reverse: 2w (Avg.) and 30w (Peak)
- Operating temperature: -20 to 80°C

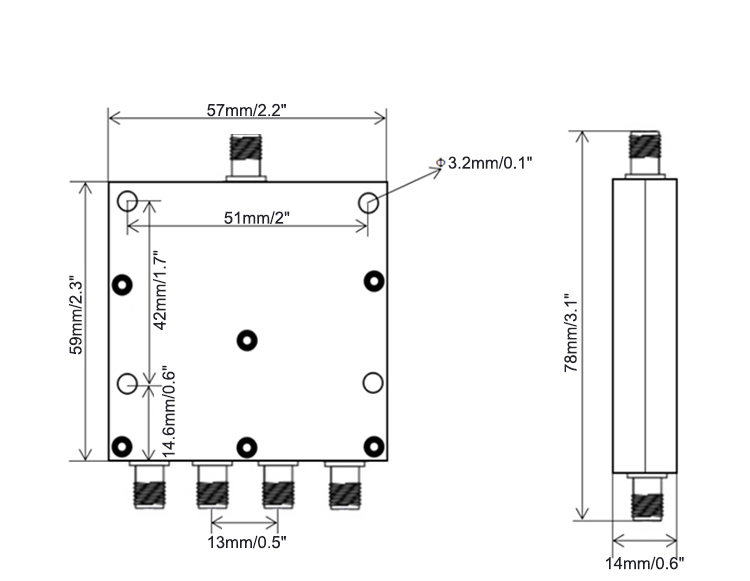

- Dimensions: 59 x 57 x 14mm/2.3 x 2.2 x 0.6"

Package Included:
- 1 x RF Power Divider

Applications:
It is suitable for occasions where indoor GPS signals are not good but the GPS signal must be used for testing or experimentation, such as the positioning test of electronic equipment, including laboratories and mobile phones and tablet computers. It can be used for GPS signal splitting, Wifi signal splitting, RF signal power splitting and laboratory experiments.
