| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $75.00 | $73.47 | $71.17 | $68.11 | Contact US |

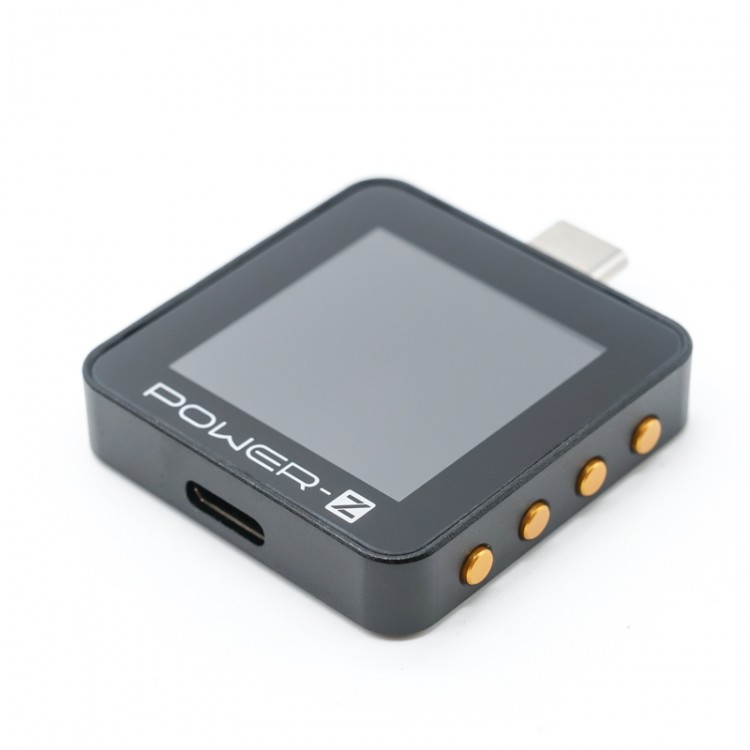

POWER-Z KM002C 0-50V 0-6A Portable USB C Tester PD3.1 Digital Voltmeter Ammeter Power Bank Tester
User Manual:
https://docs.google.com/document/d/1T55UeixUNN9La3tzAF0jO45Snw_rrd9RVGt3XQeRIM8
Features:
- CHARGERLAB POWER-Z fast charge tester
- Processor for ARM Cortex-M4: 192MHz operating frequency, 32bit processor and Thumb-2 instruction set. Built-in DSP; supports floating-point operations
- 20bit ADC; 4MB large FLASH; resistant to 50V high voltage
- E-marker test function: PDO test for Apple 140W charger, supporting 5V, 9V, 15V, 20V and 28V
- Protocol detection: PD3.1, QC4, QC5, SCP, FCP, AFC, VOOC, SuperVOOC, VIFC, EPR and UFCS
- Mini size: portable to carry and easy application
- Support USB PD3.1: The new USB PD3.1 fast charging standard will support voltage output up to 48V, and the charging power will be simultaneously increased to 240W
- High brush and high brightness, the screen is upgraded again. 1.3" IPS screen, resolution 240x240 and 1:1 screen ratio
- Powerful host computer: visualized graphical interface display; USB PD handshake protocol analysis; online viewing of charging power; local storage of charging data; online update of the host computer; support for the multi-open function of the tester
Parameters:
- Model: KM002C
- Dimensions: 36 x 37 x 8mm/1.4 x 1.5 x 0.3"
- Screen size: 1.3"
- Screen material: IPS
- Screen Resolution: 240x240
- Language: English/Chinese
- Test interface type: Type-C
- Number of test ports: 2C port
- Operation type: button
- Independent power supply, computer communication port: Type-C (5V) Name: HID
- Interface internal resistance: about 28mΩ
- Typical working current: 8~25mA
- Voltage accuracy: 0.00002V
- Current accuracy: 0.000003A
- Voltage range: 0-50V
- Current range: 0~6A
- Number of offline recording groups: 4MB built-in storage
- Maximum number of sets of capacity energy: 50
Package Included:
- 1 x Tester
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
