Description:
The POWER-Z MF001 is a professional MFi tester which doubles as a voltage and current meter. It provides detailed information for Lightning cables with industry-leading accuracy. With premium aluminum alloy body and easy-to-use App, it is built for professionals and enthusiasts alike.

Features:
- 2 ports for Lightning, 2 Type-C ports (IN & OUT), 1 micro USB port for charging and PC connection, 3 navigation buttons.

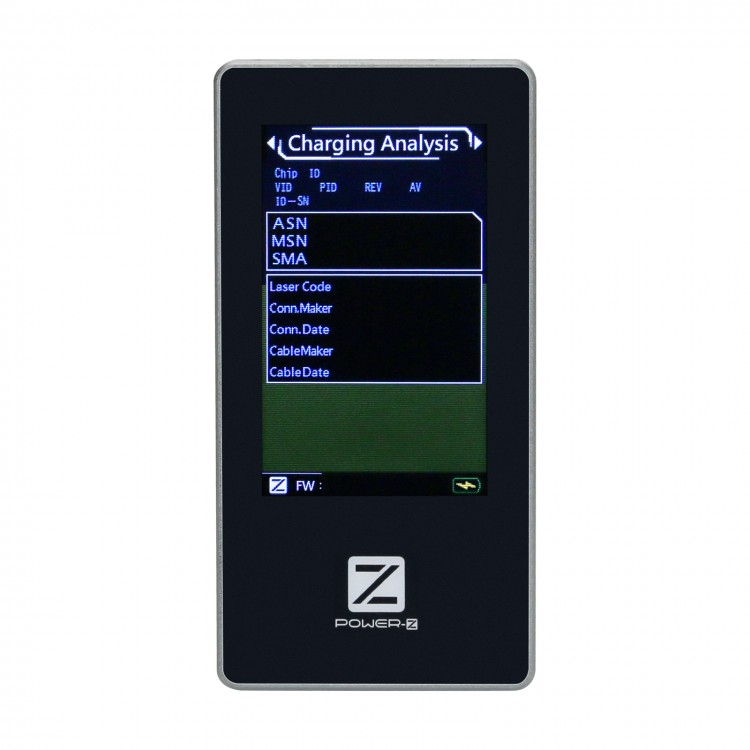

- It can show the embedded information of connector modules for Lightning.
- It can show the ICs used in the connector modules, the corresponding functional capabilities of these ICs, and the aggregated performance scores of these ICs.
- Voltage and current evaluation with QC 2.0 and PD support.
- Built-in 1020mAh electricity.

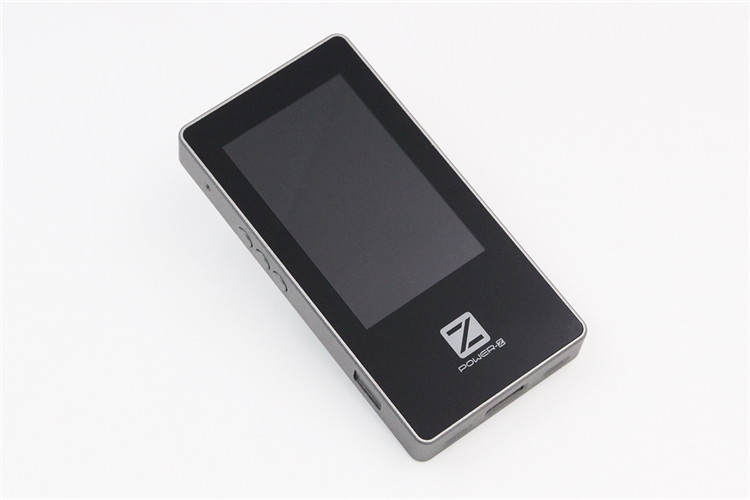

- Sleek Appearance: White laser engraved letters POWER-Z on its black acrylic panel add a sense of beauty.
- Compact Size: Overall Dimensions 112 x 57 x 14 (L*W*Thickness); Large LCD Screen in size of 64.5mm x 39mm/2.5 x 1.5 Inch
- Sturdy Housing: Aluminum housing makes it sturdy and durable.
- Anti-Scratch Surface: Round corners and oxidized and sanded surface makes it against scratches.

Introduction of Interfaces:

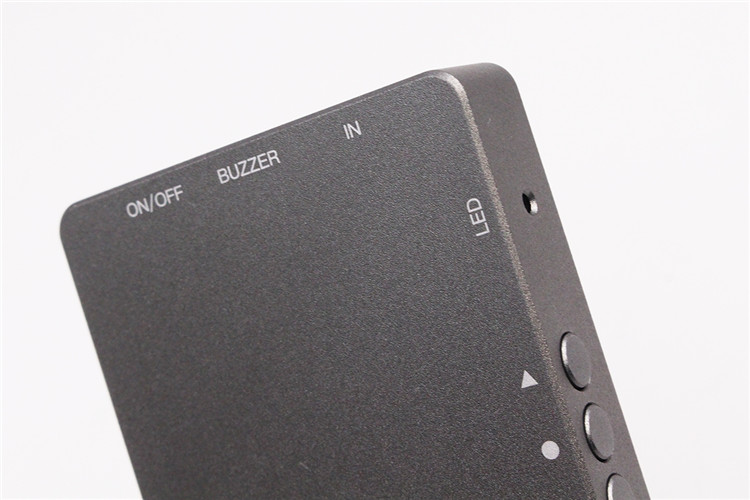

- Top Interfaces: One switch, one buzzer, and a MicroUSB port for charging or upgrading its hardware (connects to PC).


- Bottom Interfaces: Two ports for Lightning and an USB-A port. The ports for Lightning are mainly for testing MFi calbes. While the USB-A interface is used to test other functions, together with load.

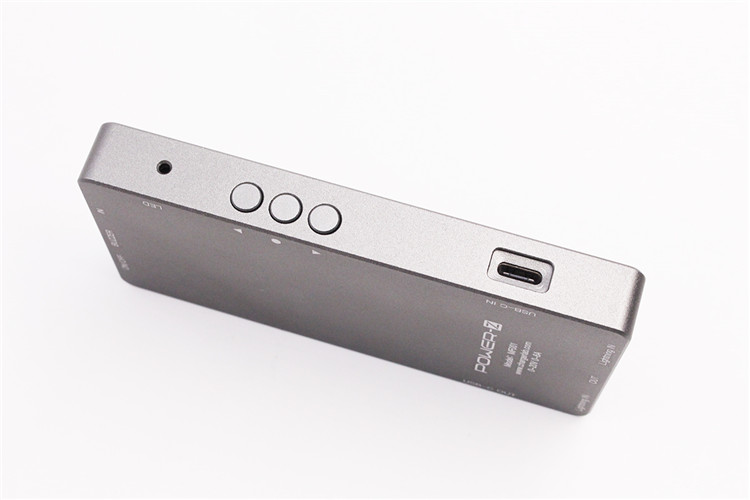

- Side Interfaces: One charging indicator, 3pcs function buttons, and an USB-C port.

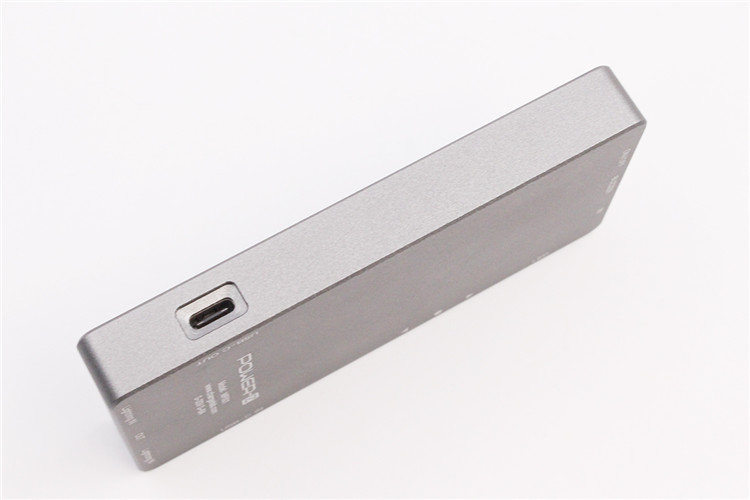

- Other Interface: One USB-C port on the other side.

Introduction of Testing Functions:

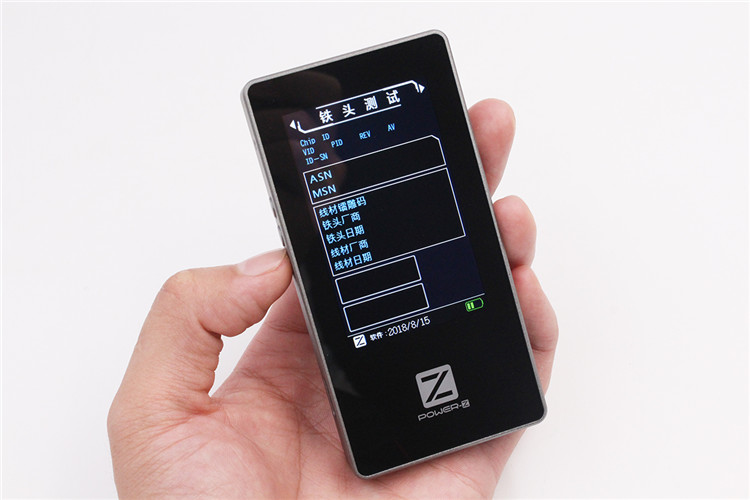

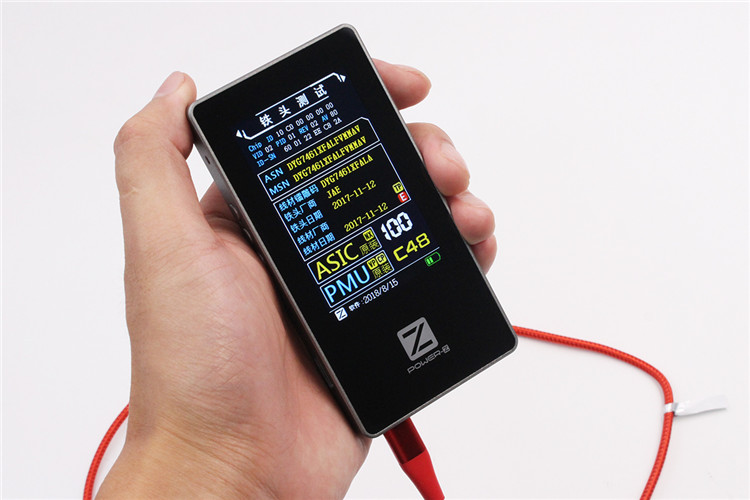

- Iron head test interface for Lightning cables. The interface can display information such as the authentication serial number of its head, the type of its authentication chip, its switch chip, and its score.


- Support tests for orignial Lightning cables, and Lightning calbes made in Tawiwan and other places. It supports tests for lightning head for C100, C48, C52, C68, E75. It features wide testing range and higher accuracy.

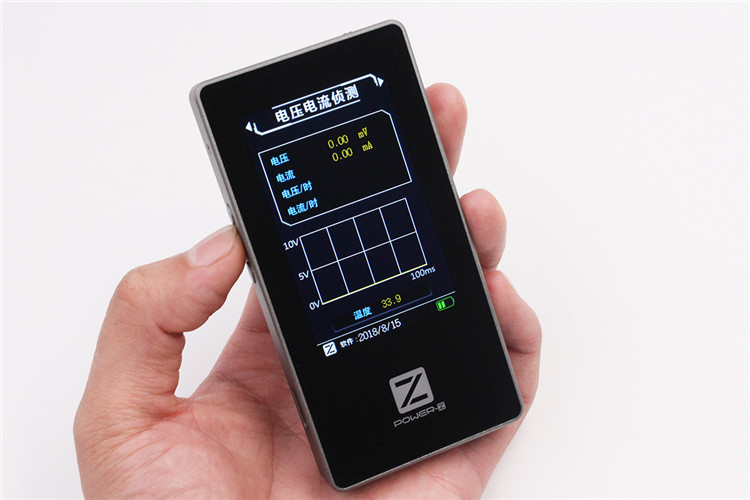

- Test voltage and current, and display in curves


- Test transformers. It support protocols including QC2.0 and USB PD.

Package Included:
- 1 x POWER-Z MF001 MFi Tester for Lightning

Note:

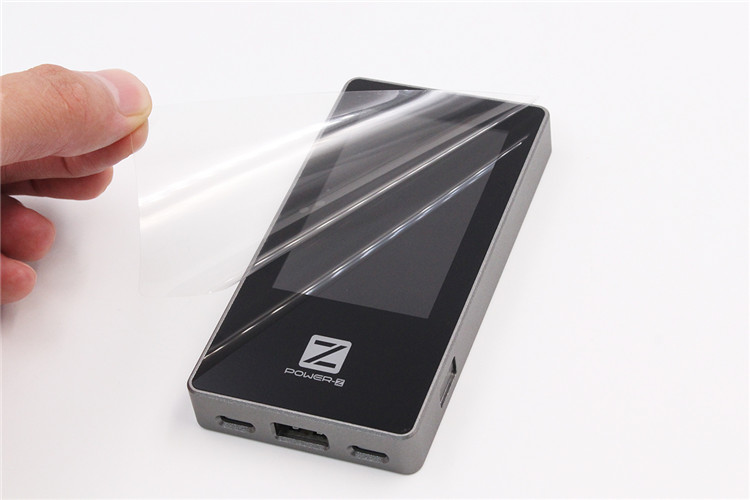

- Please peel off the film on its surface before using.
- Please contact us for user manual after purchasing. Thank you!
