PowerBoxGo V2 120W 12V/10A ASCOM Comprehensive Power and USB Data Management Box for Remote Astronomical Photography

PowerBoxGo V2 120W 12V/10A ASCOM Comprehensive Power and USB Data Management Box for Remote Astronomical Photography

Description:
- Terrans PowerBoxGo V2 is a comprehensive power and USB data management device used for remote astronomical photography. Equipped with two USB 3.1 ports (backward compatible with USB 2.0), two USB 2.0 ports, five 12VDC output ports, and one 12V DC always open ports. Supports a maximum power output of 120W, meeting the power supply needs of most users.

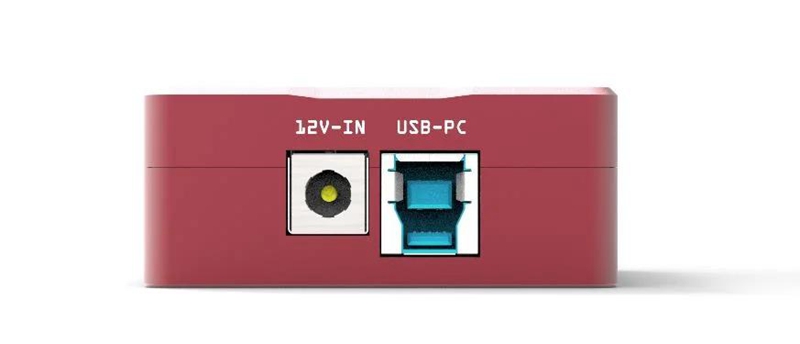

- Terrans PowerBoxGo V2 will help you clarify device wiring, bid farewell to complex wiring, and simply connect one power cord and one USB from the outside to your entire device. You can easily manage the power supply and USB communication of all devices through software.
- Terrans PowerBoxGo V2 uses a total of 13 imported chips from global leading semiconductor companies for Texas Instruments (TI), STMicroelectronics (ST), and Monolithic Power Systems (MPS). Its excellent performance and protection capabilities ensure the safety and user experience of your device.

Note:
- Do not expose this device to excessively humid environments for a long time, as it may cause damage to the device itself and the connected devices. Direct intrusion of any liquid may cause damage to this device and the connected devices.

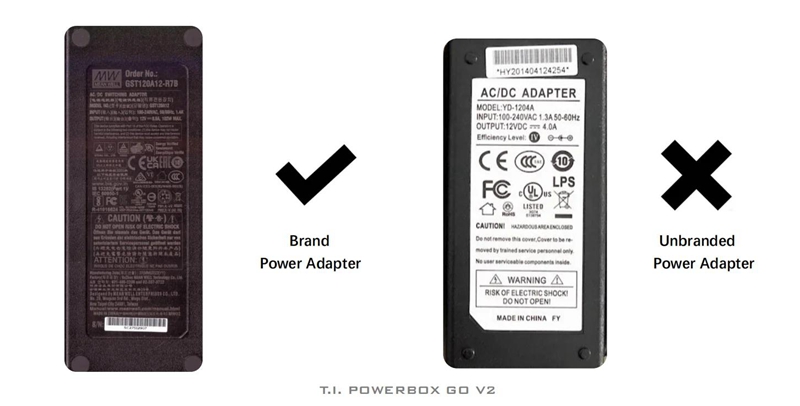

- Using low-quality power supplies without a brand may cause damage to this device and the connected devices.

Function:
- Maximum output power 120W 12V/10A.
- Input voltage overvoltage/undervoltage protection.

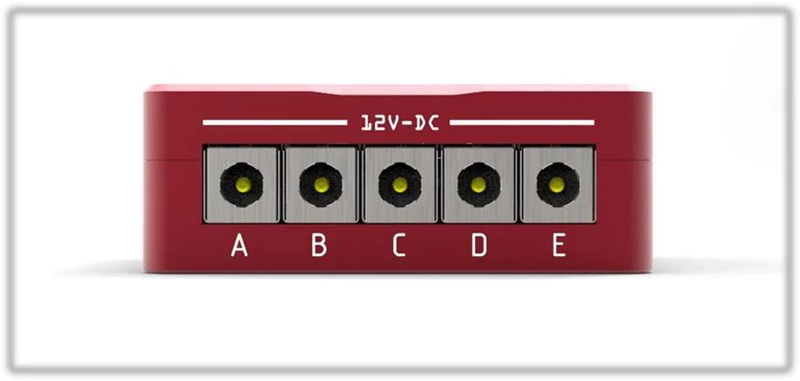

- Five 12V DC power output ports with protection and support for independent switches.

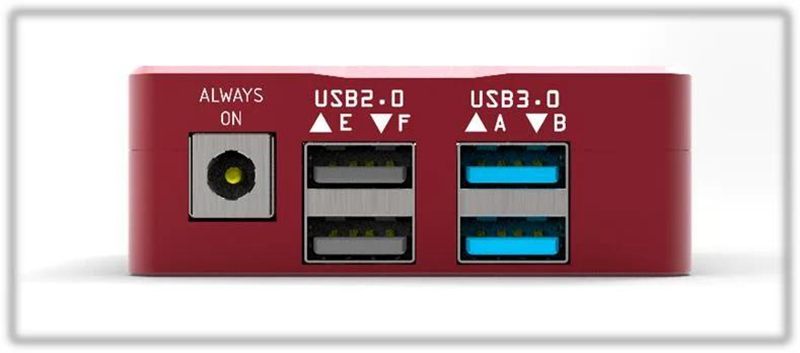

- Two USB3.1 SuperSpeed ports with protection and support for independent switches and independent plug and drop controls.
- Two USB2.0 ports with protection and support for independent switches and independent plug and drop controls.
- One 12V Always ON power supply interface.
- Real time monitoring of one channel voltage/current/power.
- Switch state power-off saved, automatically restored upon re-powering on.
- Internal temperature sensor, real-time acquisition of device internal temperature situation.
- Hardware watchdog, automatic restart in case of crash in special circumstances.

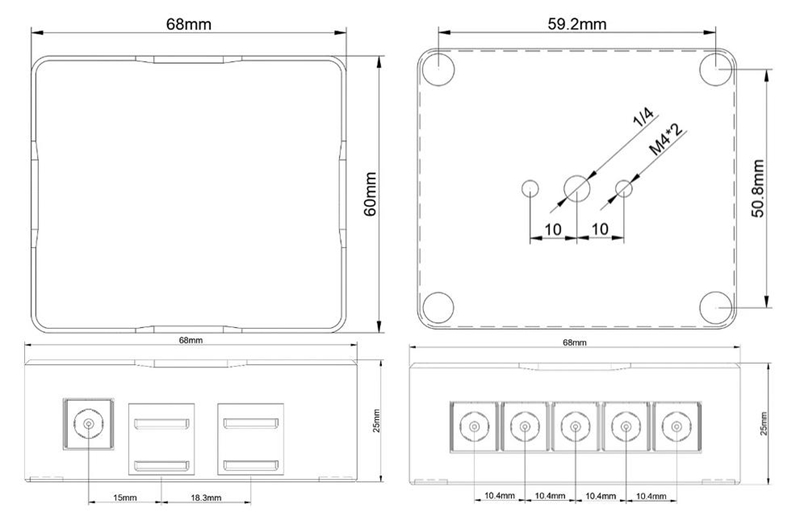

- Equipped with 2 M4 screw fixing holes and 1/4 inch screw hole on the back.
- The motherboard is sprayed with three anti spray coatings to protect equipment safety in high humidity environments and situations where condensation may occur.
- Supports for ASCOM, INDI platforms, supports commonly used astronomical software for NINA, KStars, etc.
- Support for TerransManageDesk independent control software.

Electrical Characteristics:
Input Voltage:
- Rated input voltage 12V.
- When the input voltage is greater than 14V or less than 10V, the device will disable all power outputs and pop up an alarm.

Input Current:
- Maximum input current 10A.
- When the input voltage is 12V, the maximum output power is 120W.

12V DC Output:
- Each 12V output port supports independent switches.
- Single 12V output port can support a maximum output current of 8A.
- Power supply output slow start, limiting large currents or voltage surges.
- Short circuit protection. When a 12V port experiences a short circuit, the power management chip of that port will immediately cut off the power output without affecting the normal power supply of other ports.

USB 2.0 and USB 3.1 SuperSpeed Ports:
- Each USB port supports independent power switch.
- Each USB port supports independent control and plugging, and USB3.1 can be downgraded to USB2.0.
- Single USB port supports a maximum output current of 2A, with overcurrent protection and short circuit protection.
- Power supply output slow start, limiting large currents or voltage surges.
- Under voltage protection, power supply is prohibited when the voltage is below 4V.
- Reverse current blocking, USB management chip supports blocking reverse current from abnormal electrical devices.
- Overheat protection, cutting off power supply when the temperature of the power supply chip exceeds 135 ℃.

12V DC ALWAYS ON:
- Non switchable Always ON 12V output, can be used for PC power supply.
- Support reverse connection protection.

Voltage/Current/Power Detection:
- Real time monitoring of input voltage/input current/input power and display through software.

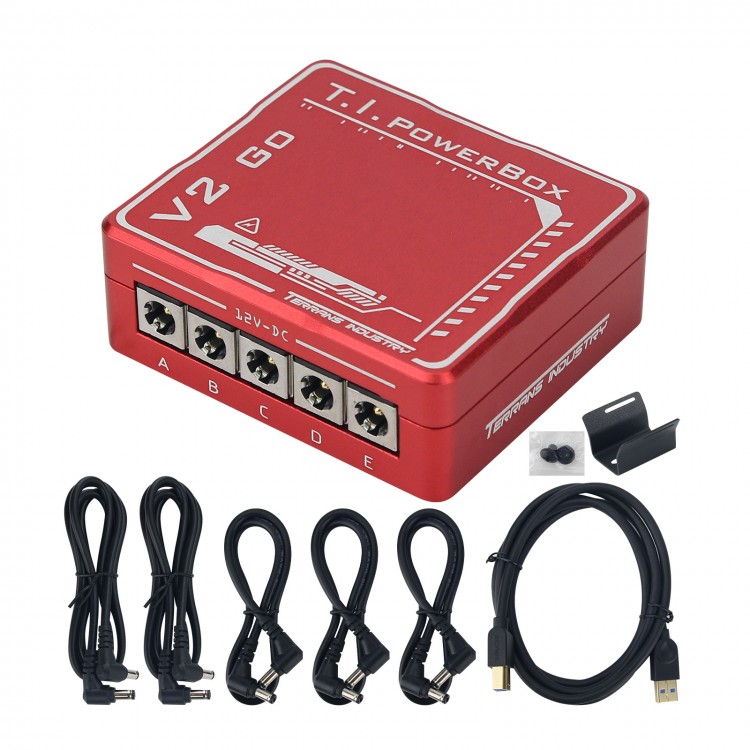

Package Included:
- 1 x Power Management Box
