Preamplifier Two Divider Plate Can Change Frequency Divider Point Adjustment
Description:

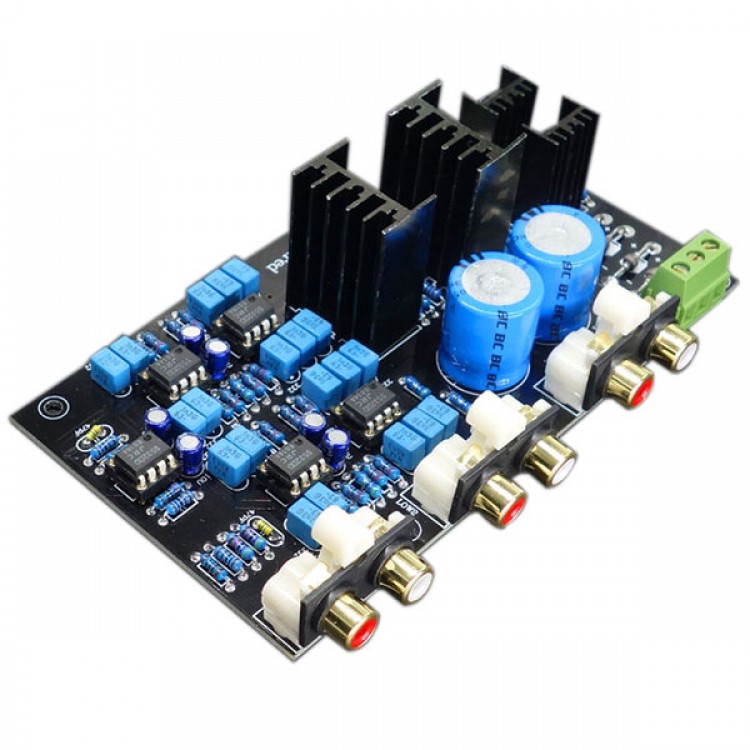

- This board is similar to US ESP design, stereo sound four channel output structure, input stereo left right channel signal, output 4 channels of signal, can directly drive four channels amplifier circuit
- A class power supply for operational amplifier, surpass LM317 337 78XX
- Circuit is with four times preamplifier gaining amplifying
- Filter type: Linkwitz-Riley filter
- Frequency divider point: 2200HZ
- Attenuation slope : -24dB/ Oct
- Board structure: stereo four channel output, high pitch, low pitch
- OP chip: original dual precision NE5532
- Board size: 173*69mm, install pitch: 133*75mm
- AC transformer power supply range: dual 14V---dual 19V
- Connector: audio input/ frequency divider output------two lotus socket*3
