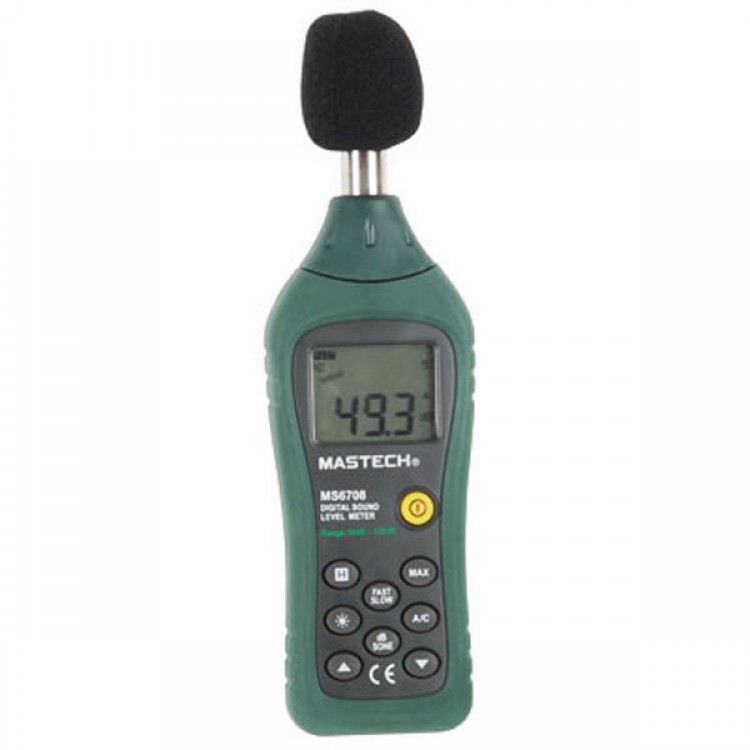

Pro digital Sound Level Meter MASTECH MS6708

Pro digital Sound Level Meter MASTECH MS6708


This is a professional Sound Level Meter, it can measure the ambient sound level, such as sound level around factories, workshops, schools, residential, offices, road, audio etc. It also can be appropriate for noise engineering, product quality control, health prevention and treatment, etc.

Functionals:
- This sound level meter complies with IEC651 Type 2 and ANSI S1.4 Type 2.
- With the measuring scope from 30 to 130 dB and automatic shifting function
- A and C weighting network selection
- High speed (FAST)/Low speed (SLOW) response rate selection
- Maximum (MAX) locking function
- Digital display, good anti-interference performance, power saving
- With the backlight feature, it is appropriate for gathering the sound data at night. To save power, backlight auto power off function is provided.
- Composite material injection molding process is adopted for casing with anti-drop structure design. It is not only extremely wear-resisting, but also elegant.
- With power saving and high-reliability circuit design, well-designed high-efficiency power supply circuit makes the batteries more durable.

Specifications:
- Sound pressure accuracy: ± 1.5 dB (sound pressure standard, 94 dB @ 1KHz).
- Sound pressure accuracy: ±5 dB (sound  pressure standard, 94 dB @ 8KHz).
- Sound pressure frequency response: 30Hz - 8KHz.
- Dynamic range of sound pressure: 50 dB (for each measurement gear level).
- Sound pressure measurement scope: 30-130 dBA, 35-130 dBC.
- Sound pressure frequency weighting characteristics: A and C characteristics.
- Dynamic characteristic of sound pressure: FAST 125ms, SLOW 1sec
- Microphone: polarized capacitive microphone.
- Digital display: 4-digit, resolution: 0.1 dB, sampling rate: 2 times/sec.
- Analog bar display: Each analog bar represents 1 dB, sampling rate is 20 times/sec.
- Measurement gear level: 30-80 dB, 40-90 dB, 50-100 dB, 60—110 dB, 70—120 dB, 80-130 dB, 6 gear levels in total.
- Automatic shifting  gear level: microcomputer will automatically select the best gear level in the range from 30 to 130 dB.
- Below or above limit prompt: indicated with “UNDER” or “OVER” display.
- Power supply: 4 x 7th batteries of 1.5V each
- Operating temperature: 0 ~+ 40 °C
- Operating temperature: 10 ~80％RH
- Storage temperature: - 10 ~+ 60 °C
- Storage humidity: 10 ~70％  RH
- Outside measurement: 193 (L) × 60(W) × 29 (H) mm
