Professional Battery Balanced Charger M200 3.5 Inch 200W 10A for RC Multicopter

Professional Battery Balanced Charger M200 3.5 Inch 200W 10A for RC Multicopter

同

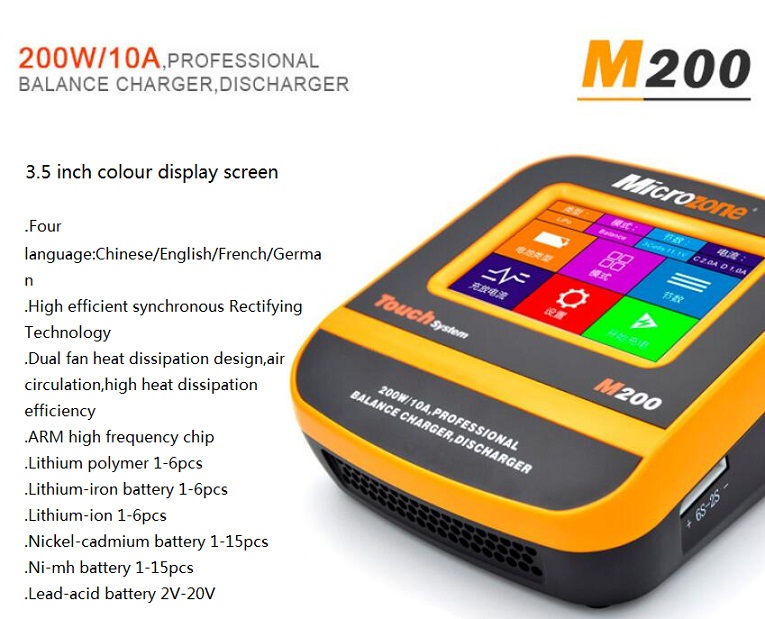

Product Description:

- 3.5 inch colour display screen
- Four language:Chinese/English/French/German
- High efficient synchronous Rectifying Technology

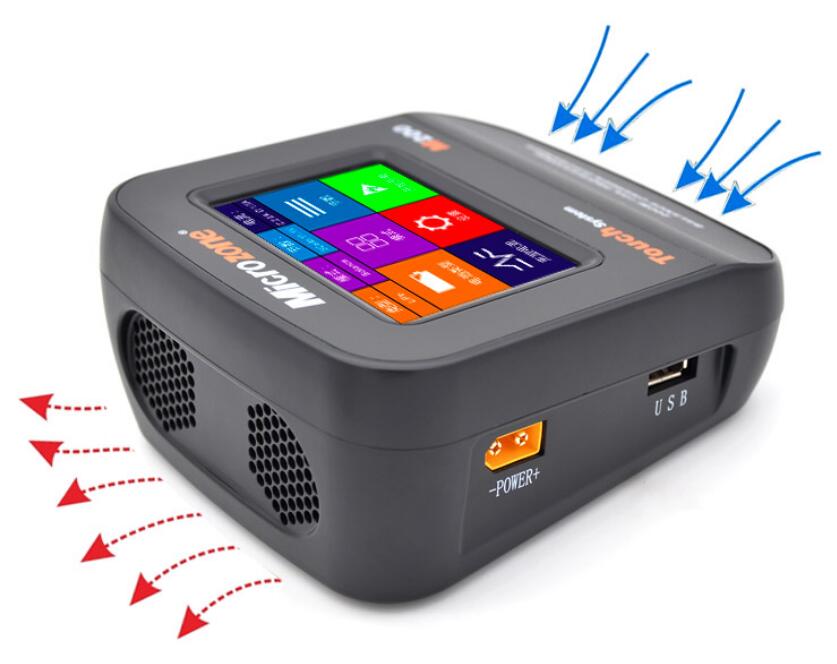

- Dual fan heat dissipation design,air circulation,high heat dissipation efficiency
- ARM high frequency chip
- Lithium polymer 1-6pcs
- Lithium-iron battery 1-6pcs
- Lithium-ion 1-6pcs
- Nickel-cadmium battery 1-15pcs
- Ni-mh battery 1-15pcs
- Lead-acid battery 2V-20V

Main Features:
- Color screen full touch screen operation system
- Charge mode monitor
- End voltage Adjust
- Multi-language transfer
- Safe temperature adjust
- Safe capacity adjust
- Safe time adjust
- Pre-charge time adjust
- Charge/discharge
- Backlight brightness adjust
- Charge multi-type battery
- Large power,high performance current design
- Touch screen operation control system
- Micro computer control system
- Lithium battery balanced charge
- Discharge
- Voltage detect
- Temperature detect

Specification:

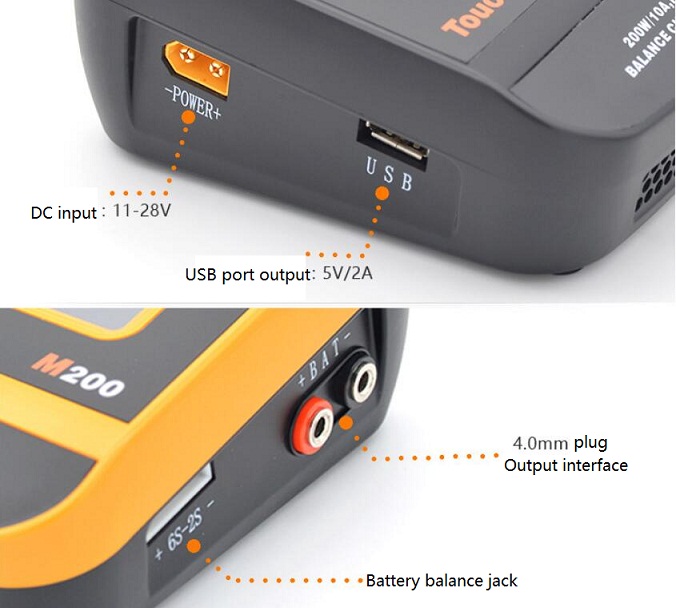

- Input voltage:DC 11V-28V
- Output voltage:0V-28V
- Charge current:0.1A-10A
- Dicharge current:0.1A-3.0A
- The max charge power capacity:200W
- The max discharge power capacity:30W
- Balance Cells:6S
- Supported Battery Type:LiPo/LiFe/LiHv/NiMh/NiCd/Pd

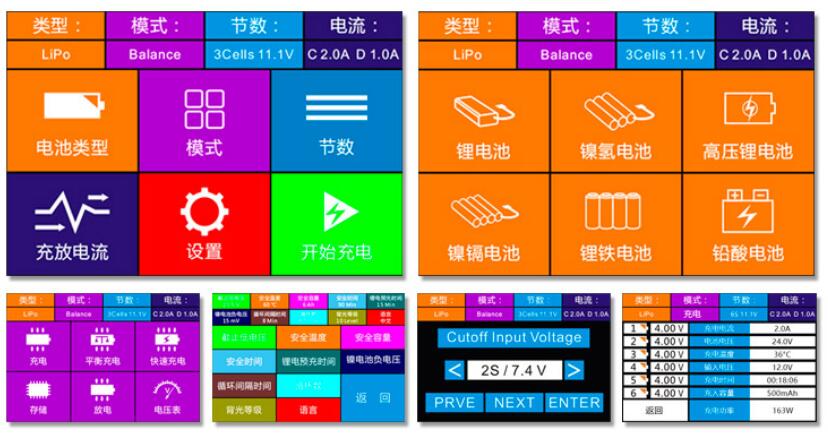

- Display:3.5'' 480x320 colour touch screen
- Operating Temperature: -10-55°C
- Storage Temperature: -20-60°C
- USB output:5V/2A

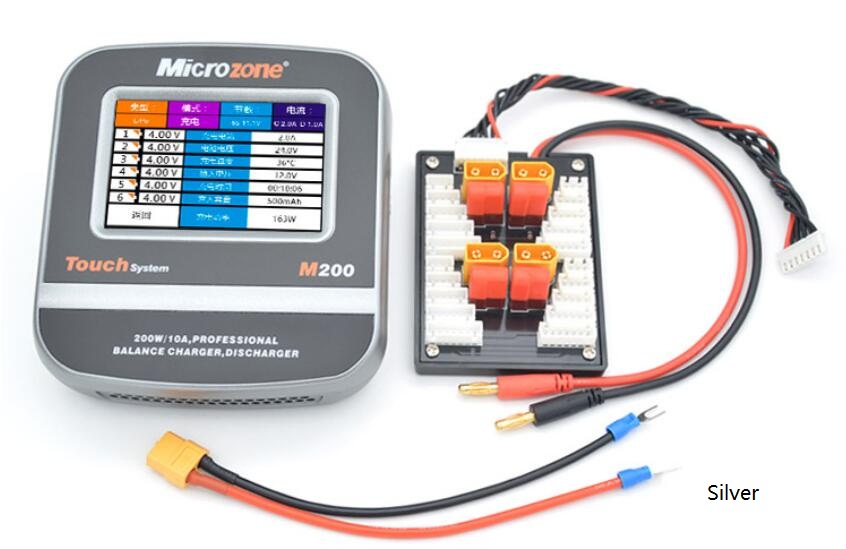

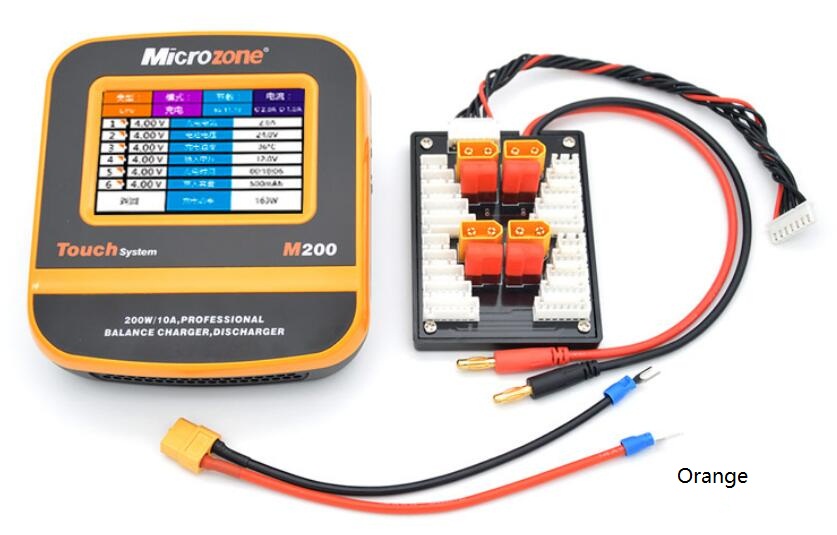

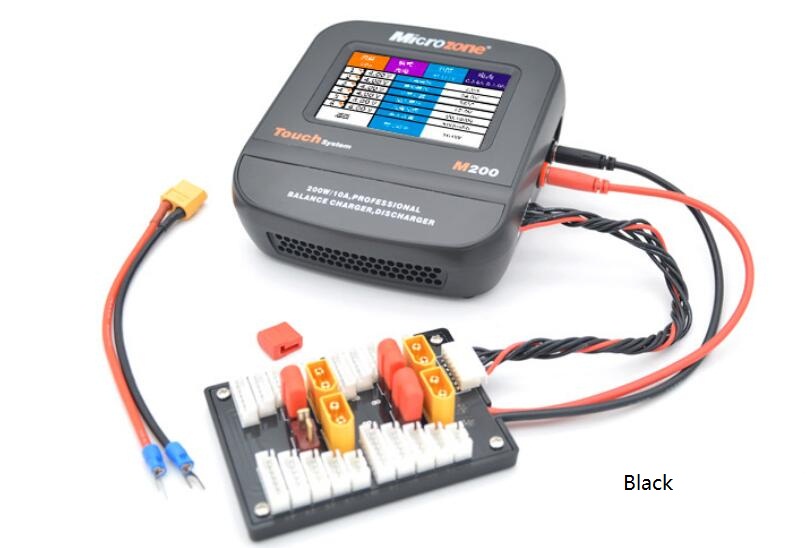

- Colour:black/orange/silver (send by random)

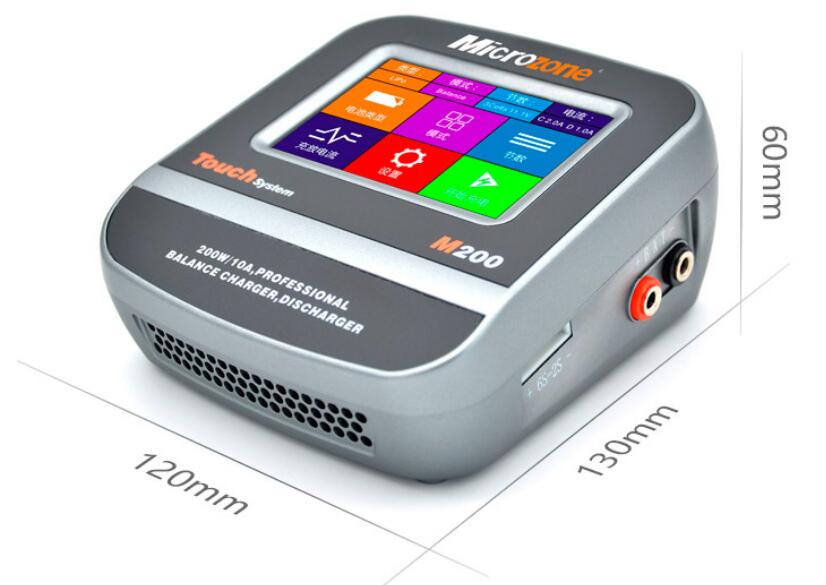

- Dimension:130x120x60mm
- Weight:330g

Note:
- This charger do not with power charger, you need to prepare by yourself.
- Batteries pose a severe risk of fire if not properly handled.

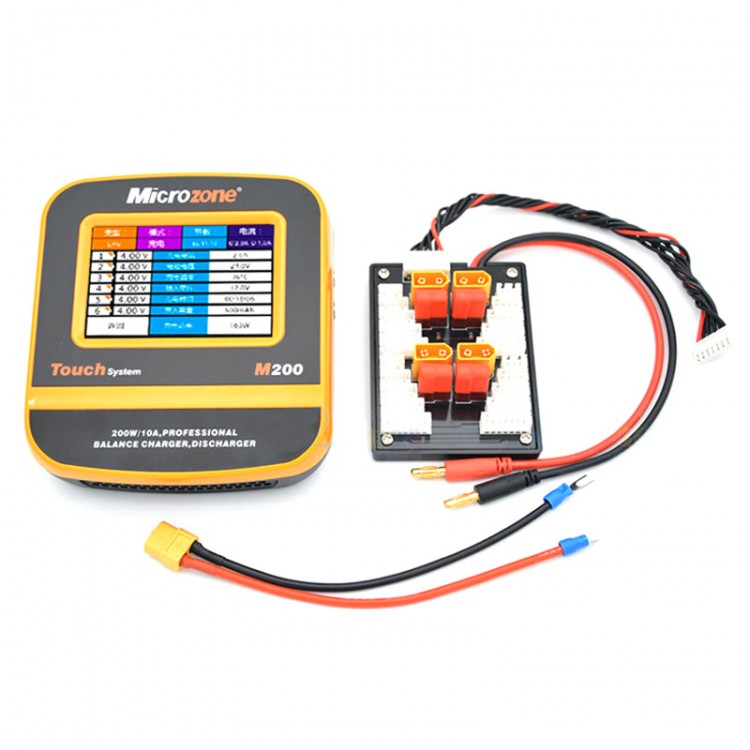

Package List:
- 1 x Battery Balance Charger
- 1 x Input power cable
- 1 x T/XT60 Parallel plate
- 1 x 7P balanced cable
- 1 x Box
- 1 x User manual
