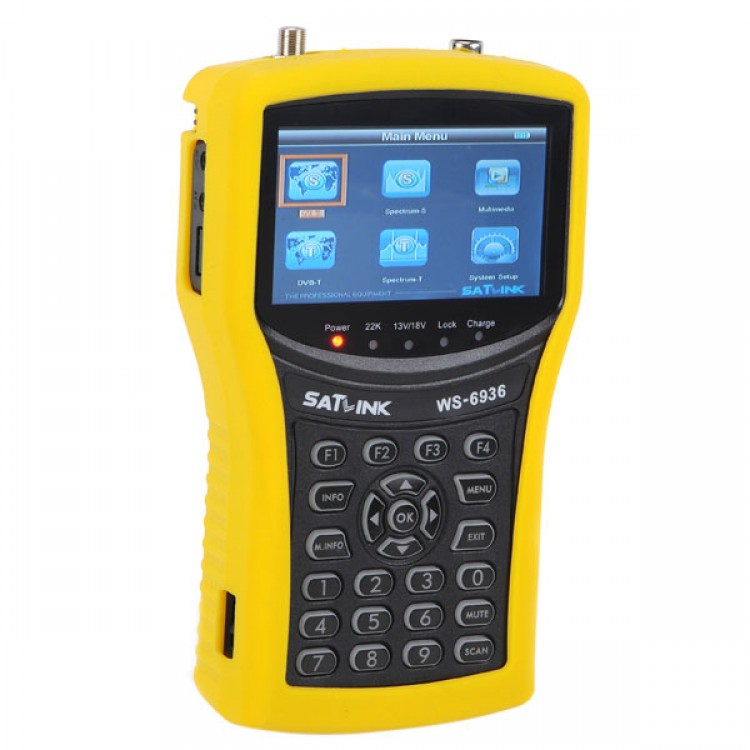

Professional Tools Satlink WS6936 DVB-S & T Combo Meter with Spectrum

Availability: Out Of Stock

  • Price:$386.72
  • Price in reward points: 3867 Reward Points: 39
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $378.99 $371.25 $359.65 $344.18 Contact US
Quantity:

Professional Tools Satlink WS6936 DVB-S & T Combo Meter with Spectrum
Highlights:
- Satlink WS-6936 DVB-S & T is a simple measurement computer for DVB-S & T
- Satlink WS-6936 DVB-S & T has a built-in color TFT LCD display with 3.5 "/ 8.9 inch.
- Satlink WS-6936 DVB-S & T is ideal for DVB-S satellite dish and DVB-T set directional antennas and to validate existing DVB-S & T antenna systems.
- Satlink WS-6936 DVB-S & T can be connected as a commercial Common receiver to a TV set.
- Satlink WS-6936 DVB-S & T can play files from USB memory stick (JPG + MP3)
AV-IN & OUTPUT
- Satlink WS-6936 DVB-S & T can be connected as a standard receiver to a TV set. In addition, the device has an AV input. At this, other players or AV surveillance cameras to be connected!

Multimedia Player
- Representation of stored photos in JPG format and play MP3 files from your own USB stick!

8 menu languages
- English, German, French, Portuguese, Spanish, Italian, Czech, Greek
Properties:

- Frequency range: 46 - 870MHz (DVB-T) + 950 - 2150 MHz (DVB-S)
- 16:9 color TFT LCD display with 4.5 "/ 11cm diagonal
- Backlit keyboard (burn time 5,10,20 seconds or turn off)
- Flashlight function
- Built-in speaker
- Angle calculation of azimuth, elevation and LNB tilt (after entering the coordination own data)
- Display the signal strength in percent and as a bar
- Display of BER
- Indicator of S / N
- Display of signal level in dBmV, dBmV or dBm
- Real-time Spectrum Analyzer, DVB-S + T
- DiSEqC motor control
- DiSEqC control DiSEqC switches for multi-switch or
- Automatic Channel Search TV and radio
- Reception and playback of DVB-S + T TV programs
- Reception and playback of DVB-S + t radio programs
- EPG (electronic program guide)
- Format conversion 4:3 or 16:9
- AV Output: Using the adapter cable can be connected to the device to the TV and receiver are used as normal
- AV Input: for connecting external devices such as video cameras.
- Firmware update via USB memory stick
- Storage and recovery of their own system settings using a USB flash stick
- USB Memory: Representation of stored photos in JPG format and play MP3 files from your USB flash drive
- 3000mA / h LION-Power Battery for 3-6 hours of use!



Specifications:

Tuner DVB-T: Antenna connection: IEC-type, IEC 169-2 socket
Frequency range: 76 MHz - 870 MHz
Signal level: 40 dBm - 110 dBm
Demodulation: CODFM
Fashion: 2K, 8K
FEC: 1/2, 2/3, 3/4, 5/6 & 7/8
Channel bandwidth: 6MHz / 7MHz / 8MHz

Tuner DVB-S: Antenna connection: F-connector
Frequency range: 950 MHz - 2150 MHz
Signal level: -65 DBm ~ -25 dBm
LNB Power: 13/18 V, 400 mA max
Fashion: 2K, 8K
LNB Control: 22 KHz
DiSEqC: Ver. 1.0, 1.2

MPEG Transport Stream A / V Decoding Transport Stream: MPEG-2 ISO / IEC 13818
Profile level: MPEG2 MP @ ML
Input rate: 15 Mbit / s max
Video resolution: 720 x 576 (PAL), 720 x 480 (NTSC)
Audio Decoding: MPEG / MusiCam LayerI & II

Demodulator: Front End: QPSK
Symbol rate: 2 Mbps ~ 45 Mbps
SCPC and MCPC: Yes
Spectrum Analyzer: No


Memory: SDRAM: 4 * 16 MB
FLASH: 8 MB

Serial data interface: Connection type: USB

Power supply: Battery Li-oN 3000 mA / h
Voltage: 8.4 Volts
AC adapter / charger: 90 - 240 V / AC - 125 V / 1 A DC
