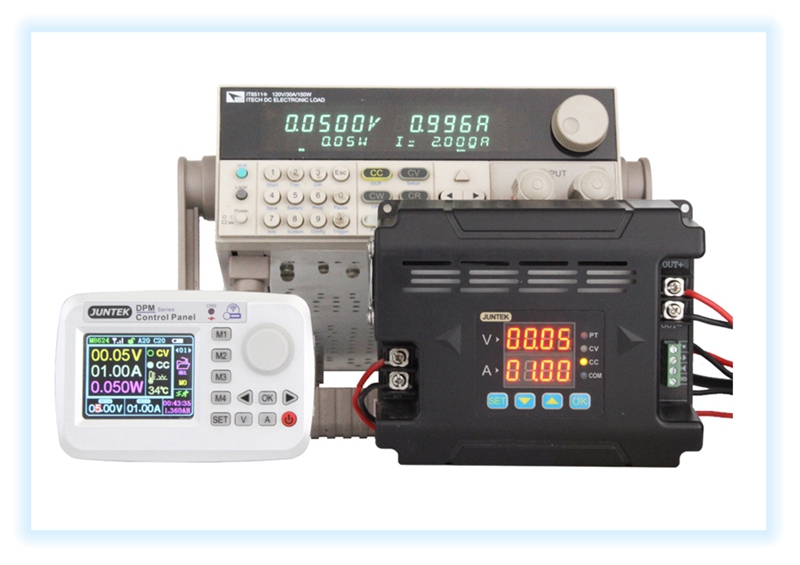

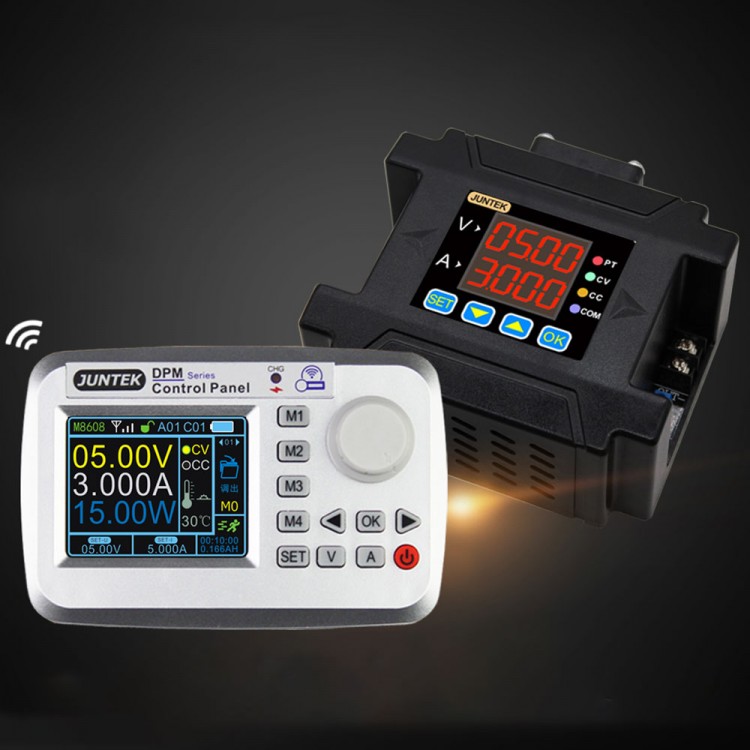

Programmable Power Supply Adjustable DC Power Supply TTL DPM8624-RF w/ Wireless Remote Control
Description:
It is a programmable DC regulated power supply. It can output constant voltage and current, and adjust voltage and current continuously. Its wireless remote control with 2.4-inch colorful screen enables easy operation. Meanwhile, you can also use our communications protocol to realize power supply automation operation.
Features:
- Power Supply Communications Interface: DPM8624-RF is designed with TTL communications port.

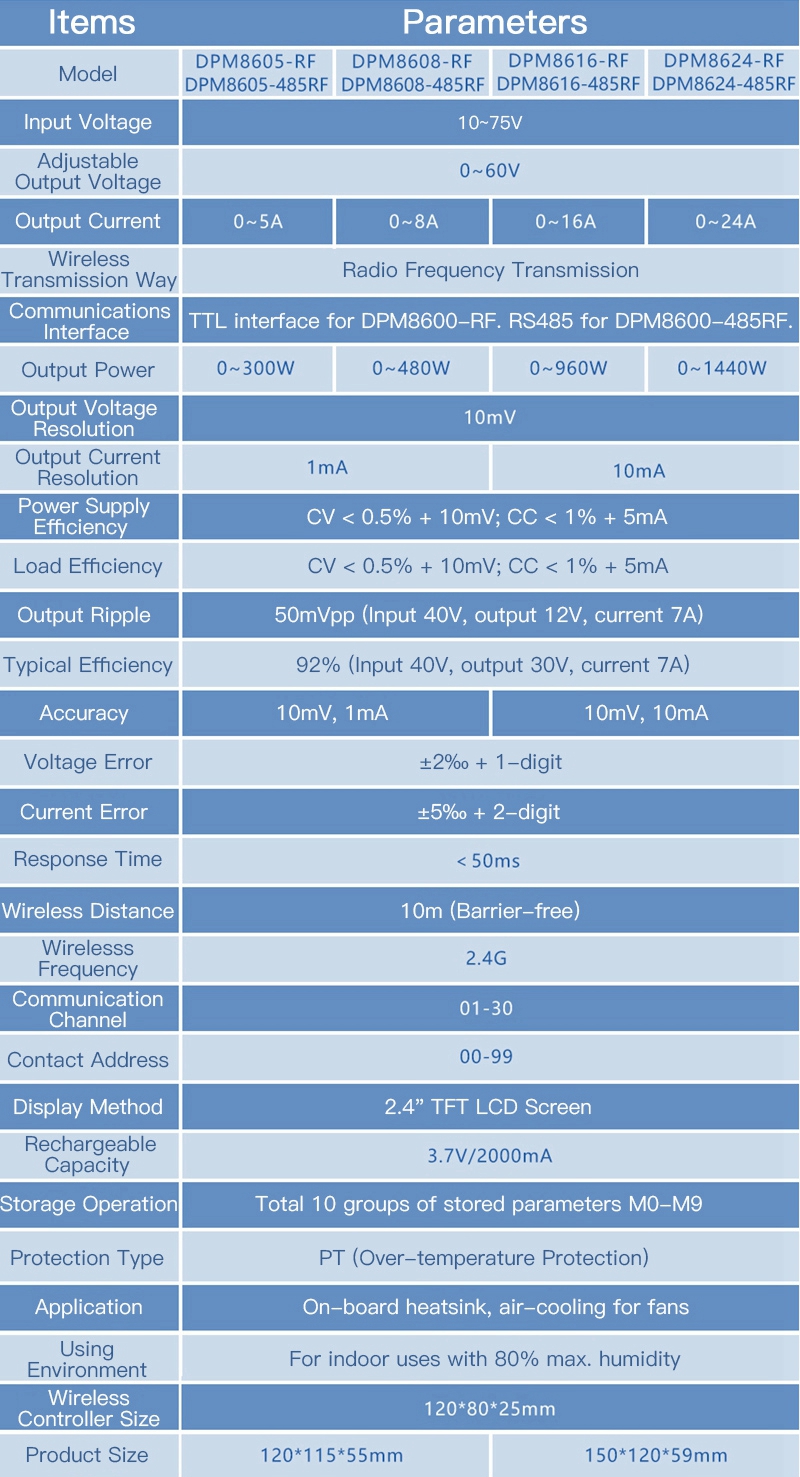

- 10-75V input voltage. 0-60V output voltage. 0-24A output current. 0-1440W output power.
- Multiple Ways to Control Power Supply: You can use the panel on the power supply to adjust voltage and current. You can connect the communications interface of the power supply to your computer, PLC and single chip microcomputer for automation control. A wireless remote control can also be used to control the power supply.
- Wireless Remote Control: The remote controller enables wireless control of power supply in 10m without obstacles. With 2.4" HD colorful screen, it is comfortable to use, fast to load and save parameters. A remote control can be used to control 30*99-channel power supplies separately by changing its frequency channels.
- Free Software & Communications Protocol: PC software and communications protocol (English & Chinese Available) are provided for free. Simple communications protocol and MODBUS communications protocol are settable in the menu of the power supply.
- Stable Performance: Based on BUCK structure, its switching power supply technology enables working frequency up to 150KHz and stable operation with minimum voltage 0.5V.
- Settable Automatic Output: You can set it to output automatically once it is powered on. Designed with fan featuring smart speed adjustment, it can cut off output automatically when it is over-temperature.
- Fast-speed Discharging: With this function, it is able to adjust voltage at a fast response speed.
- Power-off Memory Function: When it is powered off, it enables automatic saving of parameters. There are 10 groups of storage position M0-M9. Data can be saved and loaded at any time.
- Simple Internal Structure: It consists of main board and display panel. You can match it with your own devices by dismantling its shell.
- Constant voltage and constant current
Package Included:
- 1 x Wireless Remote Control
- 1 x Programmable DC Power Supply
- 1 x USB to TTL Communications Cable
