Programming Starter Learning Controller Board ESP32 for microPython Mind Programming

Programming Starter Learning Controller Board ESP32 for microPython Mind Programming

Description:
This control board is an open source hardware. It is exactly what DIY makers desperately looking for. It meets your need for programming teaching for Python.

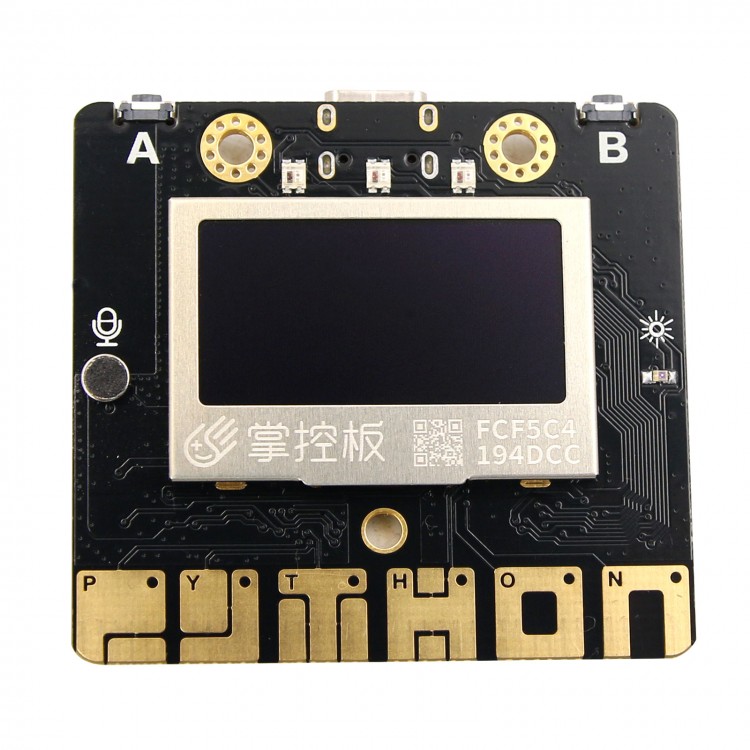

The ESP32 master chip and various sensors and actuators are integrated on the palm-sized board, and all the IO ports are extracted by means of the golden finger. It features endless expansion purposes.

It is a good helper for teachers in primary and secondary schools to teach programming, and also a creative tool for makers and programming enthusiasts. It can be programmed, whether it is graphics or programming for Python. It can be easily played with the Internet of Things or wearable applications.

Applications:
1.For Teaching: popularize STEAM maker education, artificial intelligence education and programming education.

Features:
- Support graphical and code programming for students to learn programming at different stages;
- Small size makes it convenient for storage, carrying, management and production;
- Built-in multiple input and output ports can complete a variety of creative works without external devices;
- Rich peripheral hardware, including intelligent electronic hardware and structural components, enables strong compatibility and convenient development;
- Wireless group function, which can realize mutual control and team work;
- The Internet of Things function: It can put what students learned into practice.

2.For Internet of Things: WiFi + Bluetooth, IoT nodes, grasping the future of technology.

Features:
Dual-mode WiFi:
- Built-in wireless network card, it can connect to wifi network;
- Can be used as a router, set as a wifi hotspot;
Dual-mode Bluetooth:
- Support Bluetooth 4.0, connect Bluetooth devices;
- BLE radio broadcast to implement group functions.

3.For Intelligent Controls: Ultra-high-performance master, powerful drive and expansion capabilities facilitate making various kinds of smart control works.

Features:
- High Performance: ESP-32 dual-core chip, 240MHz main frequency;
- Large Memory: 520KB SRAM running memory, 4MB Flash dynamic memory;
- Expansion Capability: 20 digital channels, 5 analog channels, supporting I2C interface, UART interface, and SPI interface.

4.For DIY Uses: With built-in input and output components, the mini board quickly implements a variety of DIY creative applications.

Features:
- Compact Size: Just half the size of a credit card. It can be fixed with magnetic, magic taps and the like;
- Input Devices: three-axis accelerometer, temperature sensor, humidity sensor, air pressure sensor, light sensor, microphone, physical button * 2 (A / B), and touch button * 6;
- Output Devices: passive buzzer, RGB lamps *3, 1.3 inch OLED screen (support Chinese and English characters display).

Technical Parameters:
ESP-32 Main Controller
Processor: Tensilica LX6 dual-core processor (one core for high-speed connection; one core for independent application development)
- Main Frequency: clock frequency up to 240MHz
- SRAM: 520KB
- Flash: 8MB
- Wi-Fi Standard: FCC/CE/TELEC/KCC
- Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r (802.11n, speed up to 150 Mbps), A-MPDU and A-MSDU aggregation, support 0.4us guard interval
- Frequency Range: 2.4~2.5 GHz
- Bluetooth Protocol: compliant with Bluetooth v4.2 BR/EDR and BLE standards
- Bluetooth Audio: CVSD and SBC audio low power: 10uA

On-board Components:
- Three-axis accelerometer MSA300, measuring range: ±2G light sensor
- Microphone
- 3pcs full color ws2812 lamp beads
- 1.3-inch OLED display, support 16*16 character display 128x64
- Passive buzzer
- Support 2 physical buttons (A/B) and 6 touch buttons
- Support 1 channel alligator clip interface for easy access to various resistive sensors

Expansion Ports:
- 20-channel digital I/O, (supporting 12 PWM, 6 touch inputs)
- 5-channel 12-bit analog input ADC, P0~P4
- 1-way external input alligator clip interface: EXT/GND
- Support I2C, UART, SPI communication protocol

Other Parameters:
- Supply Voltage: 5V
- Working Voltage: 3.3V
- Maximum Operating Current: 200mA
- Board Size: 48*52mm
- Board Weight: 14.8g

Package Included:
- 1 x Control Board
