Proxmark3 Easy NFC Reader Writer Replicator 512M V3.0 Software For ID Card Encryption IC Cards

Proxmark3 Easy NFC Reader Writer Replicator 512M V3.0 Software For ID Card Encryption IC Cards

Description:
Proxmark3 is an open source hardware, which is mainly used for RFID sniffing, reading and cloning.

Proxmark3 Hardware:
- Immersion gold craft and SMT
- Original chips and brand components. Capacitors and resistors are for Murata and the like
- Antenna is accurately matched, and special tooling is used for antenna testing

Operating Documents and Information:
- Provide IC/ID card cloning tutorial, cracking tutorial, card simulation tutorial, and sniffing tutorial
- Provide original software firmware
- Quick user manual

Features:
- Full decryption IC. The fourth-generation upgraded version with stable performance
- Super compatibility. Crack more than 98% of the cards on the market. Suitable for ID and IC cards such as water cards, elevator cards, access control cards, etc.
- 512M memory. Its reading and cracking speed is more than twice as fast as ordinary devices on the market, and card reading range is larger
- Double USB interfaces make it more convenient to sniff. A power jack is added to supply PM3
- When offline sniffing, it can be powered by a power bank. The other USB interface is connected to a computer communication data interface through a USB cable
- The fourth-generation imported chips. Cracked clone IC/ID card is 98% compatible. It eliminates the blind area of short-distance card reading, enabling stable reading and writing. And the resolution speed is increased by 30%
- Upgraded chip, intelligent protection system, built-in integrated antenna, support one-click cracking, import analysis function and anti-shielding writing
- Refresh any version as needed. Sniffing, reading, cloning, and copying operations of RFID developers
- Support high frequency card and low frequency card
- Dual USB ports can be used for power supply and high line detection
- Support hardnested instructions, effective cracking
- Built-in integrated antenna does not take up space, convenient to carry and sniff passwords
- Integrated operation interface

Gifts:
- IC Cards: UID x 1; S50 x 1; Access Card (Tag) x 1; CUID x 1
- ID Card: T5577

Basic Parameters:
- Model: PM3Easy3.0
- Working voltage: 3.5-5.5V
- Working current: 50-130mA
- Length and width dimensions: 54 x 86.6mm/2.1 x 3.4"
- Product color: black
- Thickness size: 6.2mm/0.2" (the thinnest); 9.8mm/0.4" (with screws); 15.8mm/0.6" (with low frequency antenna)
- Factory firmware version: 2.0.0

Other Parameters:
(When the low-frequency antenna is installed on the right side)
# LF ANTENNA: 29.84V at 125.00KHZ
# LF ANTENNA: 32.31V at 134.00KHZ#
HF ANTENNA: 28.43V at 13.56MHZ

(When the low-frequency antenna is installed on the left side)
# LF ANTENNA: 43.86V at 125.00KHZ
# LF ANTENNA: 24.48V at 134.00KHZ
# HF ANTENNA: 25.13V at 13.56MH

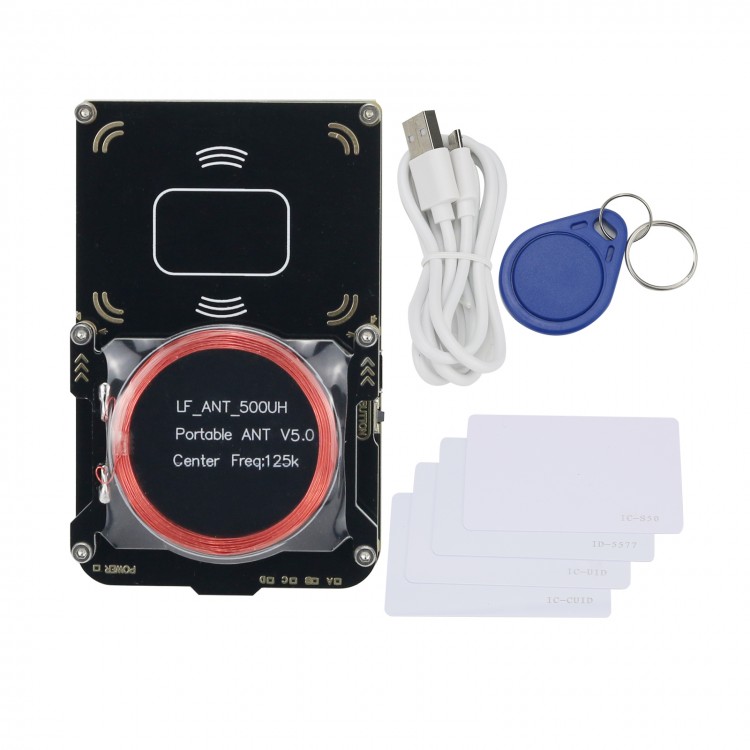

Package Included:
- 1 x Proxmark3
- 1 x UID Card
- 1 x S50 Card
- 1 x Access Card (Tag)
- 1 x CUID Card
- 1 x T5577 ID Card
