Proxmark3 PM3 RDV2 + 7.0 Software ID/IC Card Copier RFID Duplicator Reader Support Dual Frequency Card

Proxmark3 PM3 RDV2 + 7.0 Software ID/IC Card Copier RFID Duplicator Reader Support Dual Frequency Card

Features:
- Super compatibility. Crack more than 98% of the cards on the market. Suitable for ID and IC cards such as water cards, elevator cards, access control cards, etc.
- Upgraded chip, intelligent protection system, built-in integrated antenna, support one-click cracking, import analysis function and anti-shielding writing

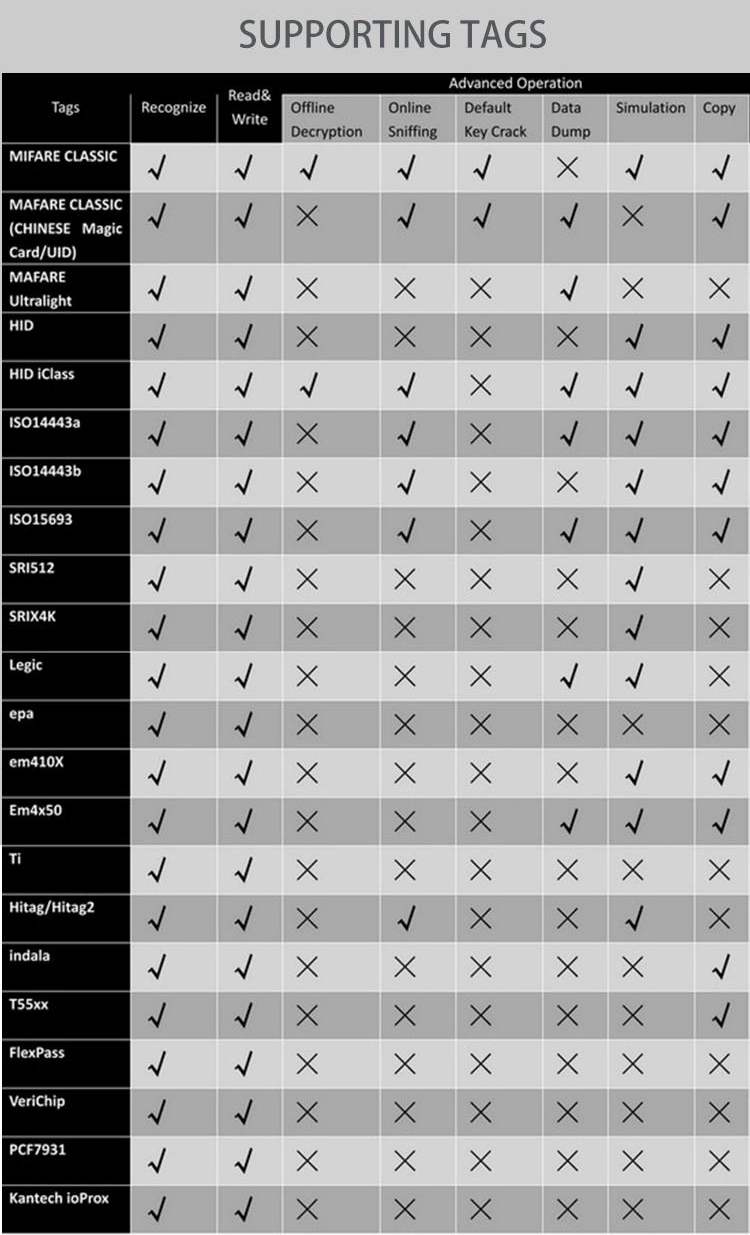

- The third-generation imported chip can be cracked and cloned and compatible with 98% of IC/ID cards. Can read 125K, 134K, 127K low frequency cards and 13.56k high frequency cards
- Proxmark3 RDV (PM3 RDV2) is an upgraded full version of PM3 EASY version. It supports UHF and UHF with a wider range
- It has undergone 58 designs, 236 upgrade tests and 5 factory inspections
- Refresh any version as needed. Sniffing, reading, cloning and copying operations for RFID developers
- Support high-frequency cards and low-frequency cards. Support dual frequency, power supply high line detection. Support hardnested instructions, effective cracking
- Detachable antennas for easy carrying and convenient application

Product Parameters:
Basic Parameters:
- Model: PM3 RDV2
- Working voltage: 3.5-5.5V
- Working current: 50-130mA
- Length and width dimensions: 44 x 85.6mm
- Product color: black
- Thickness size: 6.2mm (the thinnest); 9.8mm (with screws); 15.8mm (with low frequency antenna)
- Factory firmware version: 2.0.0

Other Parameters:
(When the low-frequency antenna is installed on the right side)
# LF ANTENNA: 29.84V at 125.00KHZ
# LF ANTENNA: 32.31V at 134.00KHZ
LF OPTIMAL: 35.39V at 127.66KHZ
#HF ANTENNA: 28.43V at 13.56MHZ

(When the low-frequency antenna is installed on the left side)
# LF ANTENNA: 29.84V at 125.00KHZ
# LF ANTENNA: 32.31V at 134.00KHZ
LF OPTIMAL: 35.39V at 127.66KHZ
# HF ANTENNA: 28.43V at 13.56MH

Proxmark3 Description:
- Proxmark3 is an open source hardware, which is mainly used for RFID sniffing, reading and cloning.

Proxmark3 Smart Tool:
- Promark3 Smart Tool is a simplified and integrated redesign specifically for Proxmark3. It pays more attention to practicality, operability, and retains all original functions.

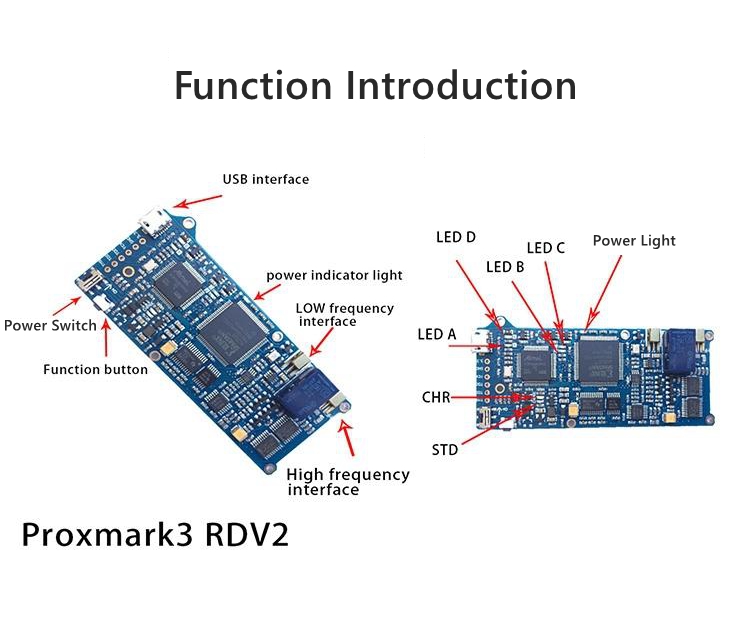

Proxmark3 Hardware:
- Immersion gold craft and SMT
- Original chips and brand components. Capacitors and resistors are branded, such as for Murata
- Antennas are accurately matched, and special tooling is used for antenna testing

Operation Files & Materials:
- Provide IC/D card cloning tutorial, cracking tutorial, card simulation tutorial and sniffing tutorial
- Provide original software firmware
- Quick user manual
- Provide operation videos for learning

Integrated Operation Interface:
- Provide command line operation
- Provide the original English version of GUI operation interface
- Provide Chinese GUI operation interface
- Support interfaces in Chinese and English

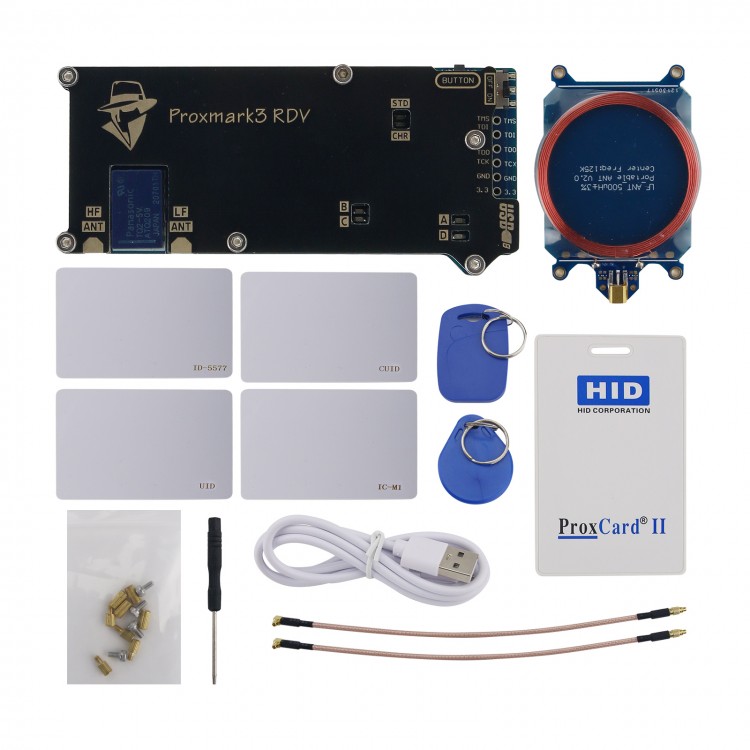

Package Included:
- 1 x Set of Proxmark3 RDV2
