PS30SWIV Radio Transceiver Base Station Switching Power Supply 30A Fourth Generation 13.8V
Product Description:
- The device is used for communication equipment.The digital LCD backlight displa.。
- Small size,stable and high efficiency,Digital LCD screen display voltage,current
Changeable output voltage

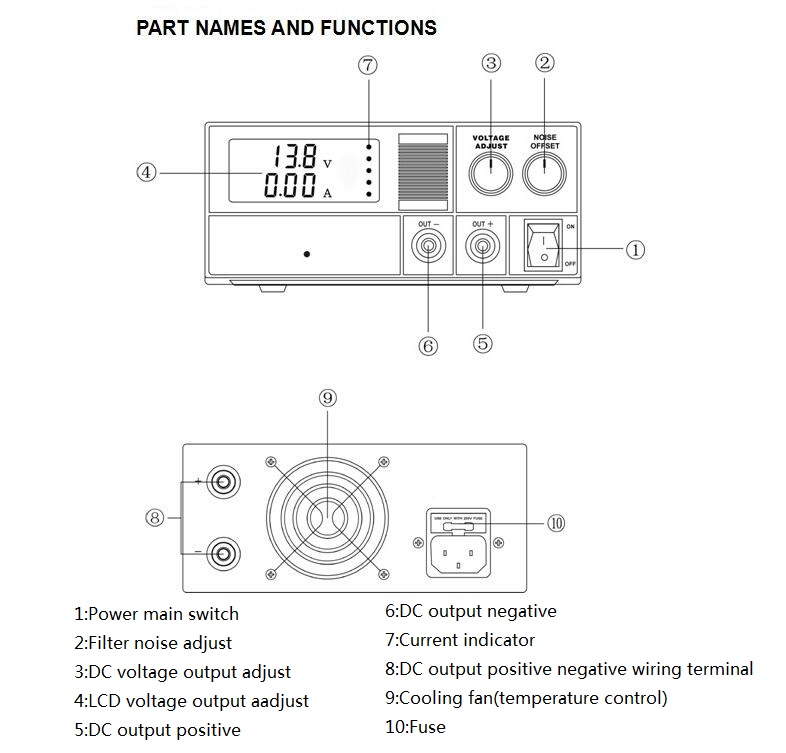

Panel function description:
1:Power main switch
2:Filter noise adjust
3:DC voltage output adjust
4:LCD voltage output aadjust
5:DC output positive
6:DC output negative
7:Current indicator
8:DC output positive negative wiring terminal
9:Cooling fan(temperature control)
10:Fuse
Specific parameter:
- Dimenion:155(W) x 70(H) x 205(D) mm
- Weight:1.5 kg
- Output voltage:9- 15V DC adjustable,sitable around 13.8V DC
- Output current:30A (max)
- Ripple and noise: < 10mV effective value
- Power:230V AC / 50Hz
- Instrument type:LED digital meter
Note:The power voltage varies within 0.1-0.2V,it is normal.

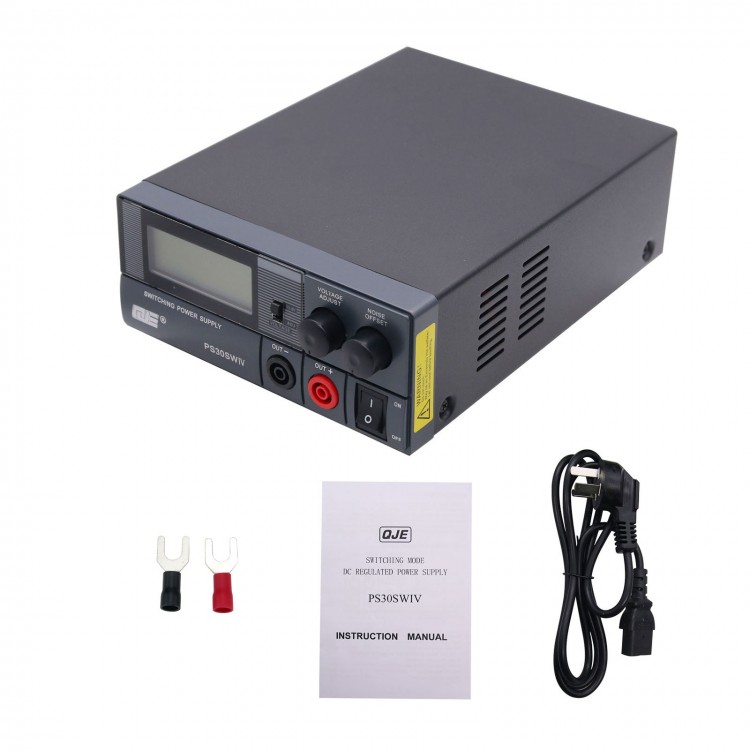

Package List:
- 1 x PS30SWIV Radio Base Station
