Description:

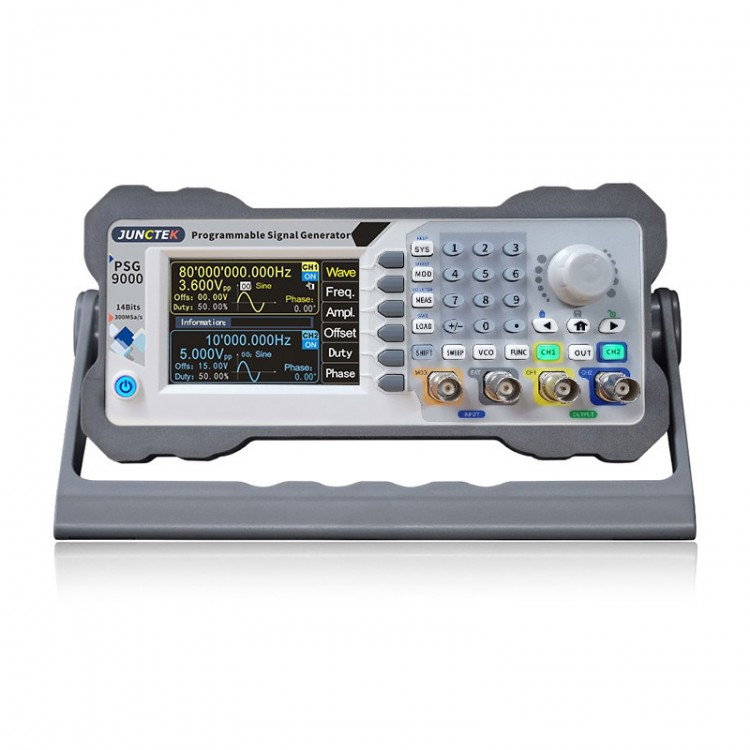

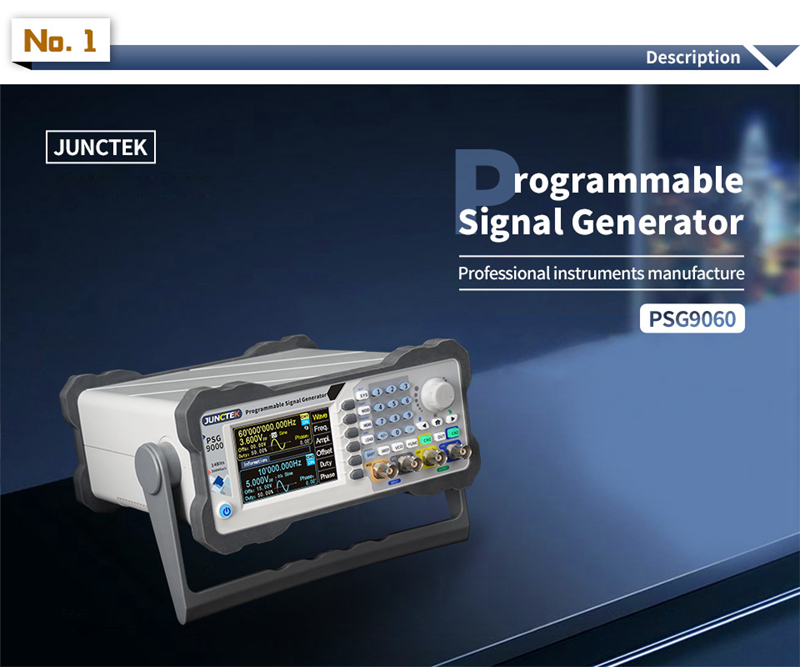

PSG9060 is the programmable function/arbitrary wave signal generator. It can output sine wave, square wave, triangle wave, pulse wave, and arbitrary wave, etc. The frequency range of the instrument is up to 60MHz, With Waveform modulation, frequency sweep, vco, measurement signal frequency and programming functions, etc. It can simultaneously display the output signals, amplitude, phase, duty cycle and frequency. Provide new options for education, research and development, production, testing and other industries.

The instrument is exquisite in appearance and equipped with a 3.5-inch high-resolution color LCD screen to bring a new visual experience.

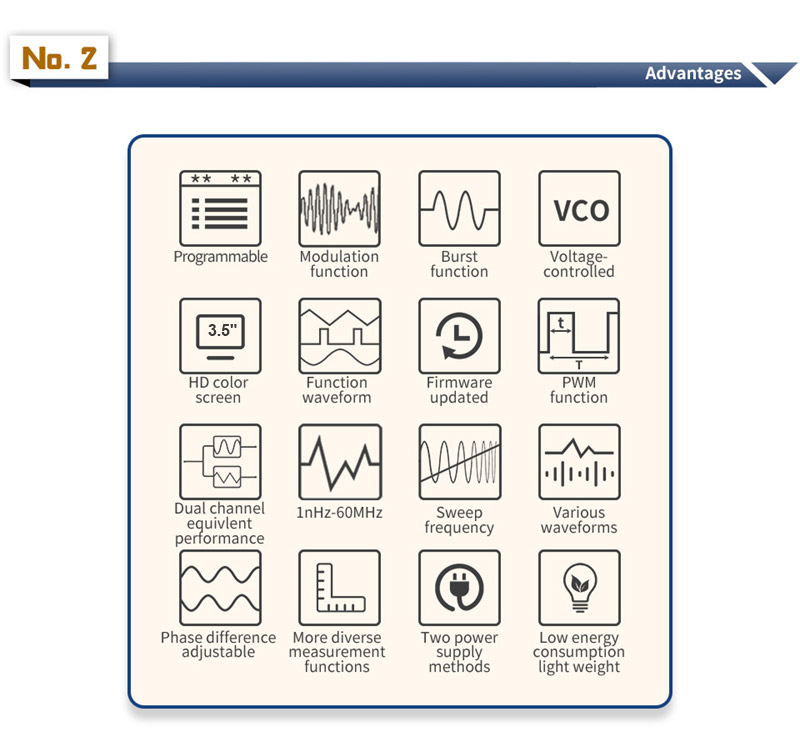

Performance Advantages:

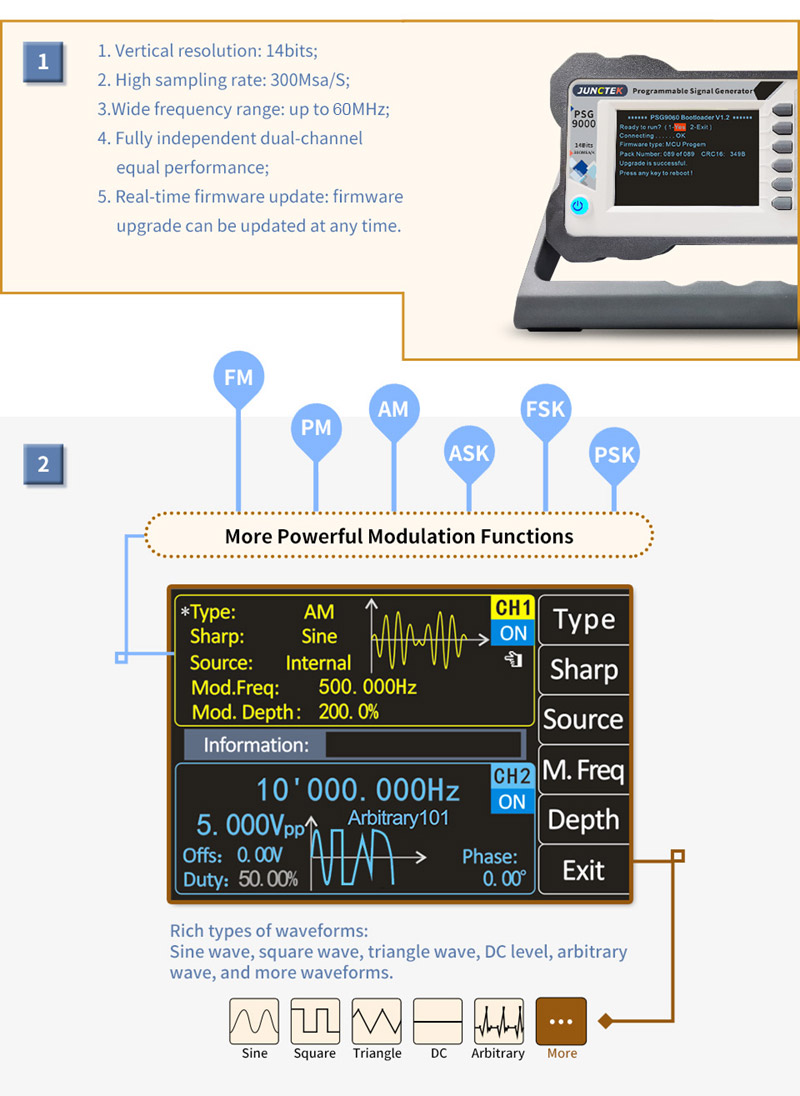

1. Equivalent performance dual channel, Output sine wave frequency range 0-60M, Sampling rate: 300MSa/s. Vertical resolution: 14bits, Support firmware update;
2. Waveform types include sine wave, square wave, pulse wave, triangle wave, TTL digital signal, and custom arbitrary waveform;
3. The modulation waveform includes AM/FM/PM/ASK/FSK/PSK;

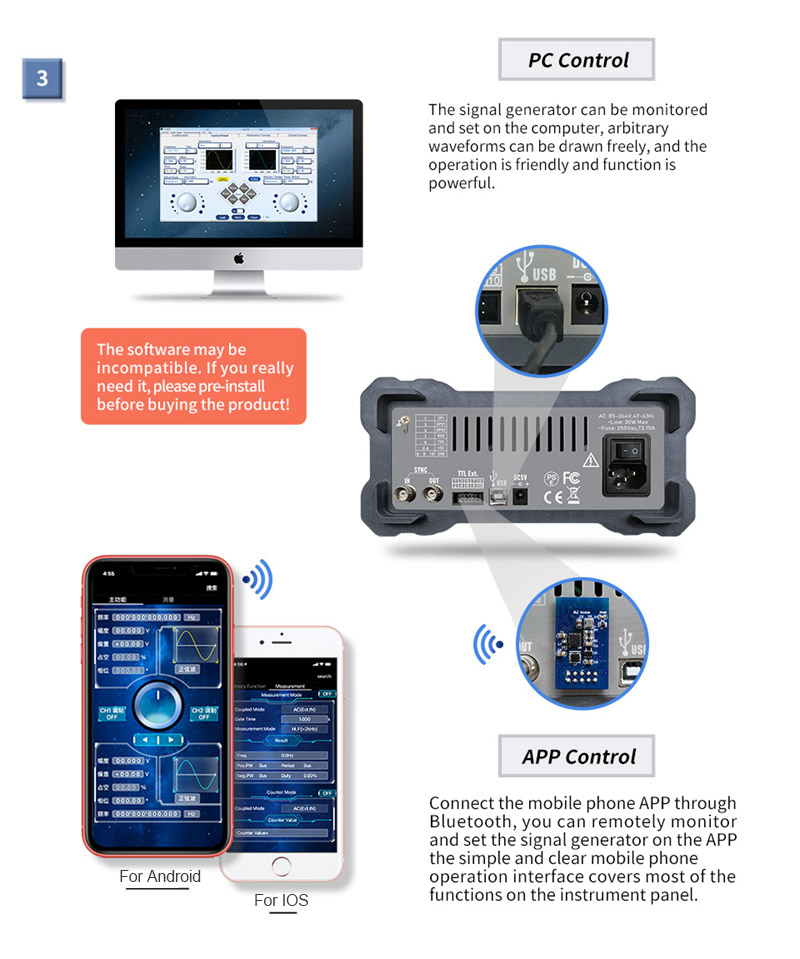

4. Provide computer software and mobile phone APP to control PSG9060;

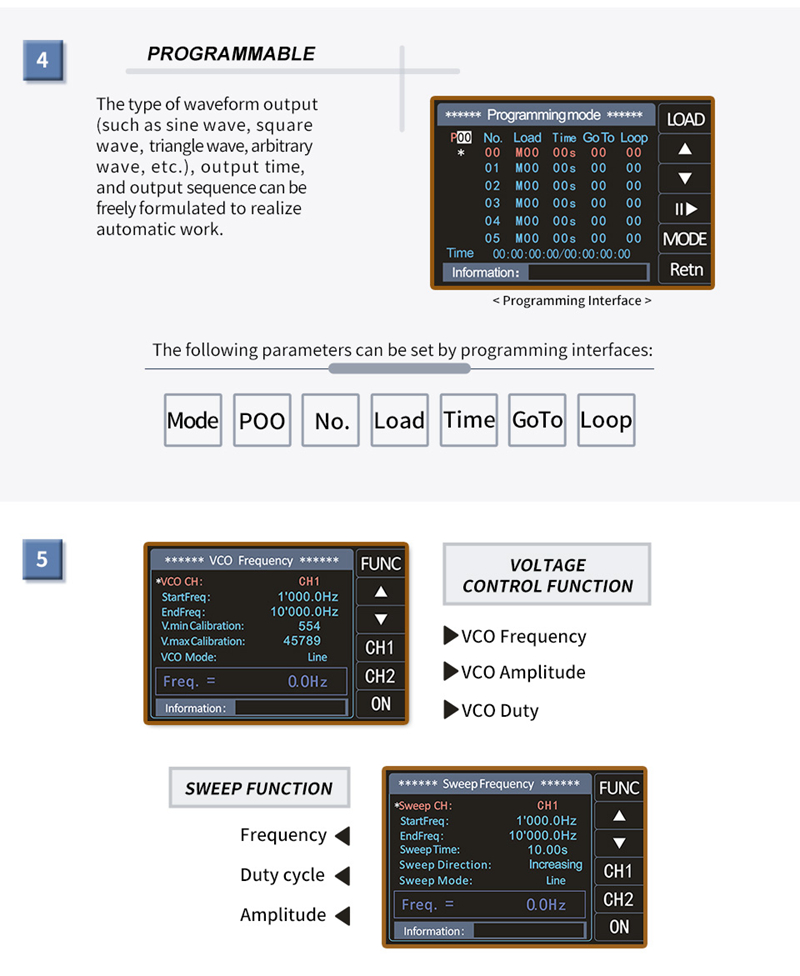

5. Stand-alone programmable function: customize the output waveform type, frequency, amplitude and switching time to realize automation;
6. VCO voltage control scanning function: frequency control, amplitude control, duty control;
7. Sweep function: Sweep frequency, Sweep amplitude, Sweep duty cycle;

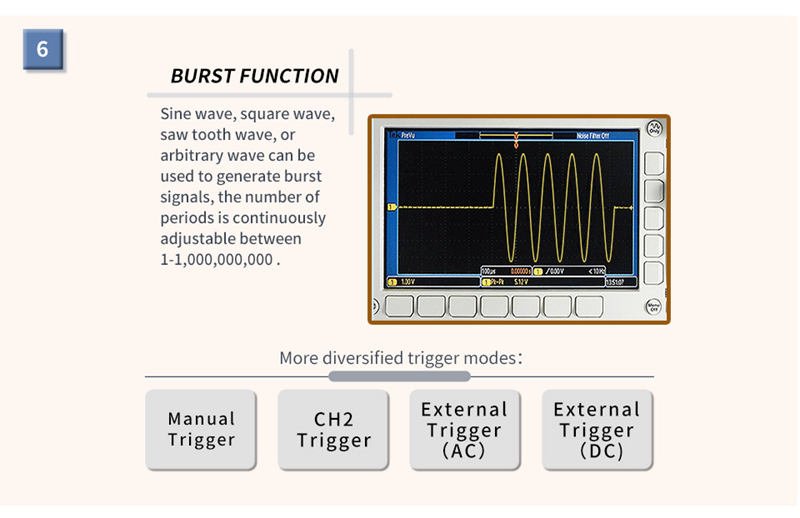

8. The burst function has three modes: manual trigger, internal trigger, and external trigger;

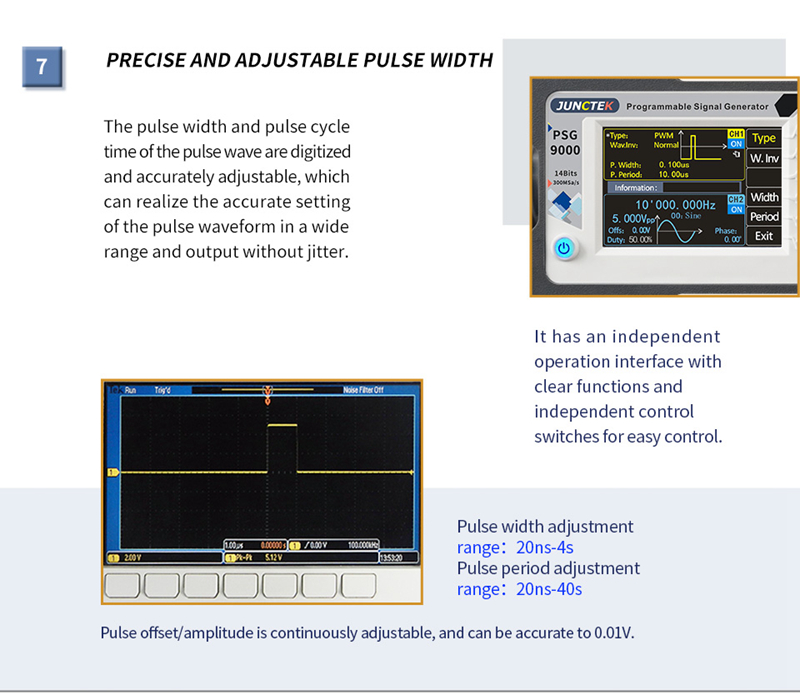

9. Pulse function: pulse width and cycle time are precisely adjustable;
10. Measure the frequency, period, and duty cycle of the input signal, with counter function.

Technical Parameters:
- Model: PSG9060
- Channel: 2
- Sine wave frequency range: 1nHz-60MHz
- Sampling Rate: 300MSa/s

Waveform characteristics:
- Wave length: 8192 points/channel
- Waveform vertical resolution: 14 bits
- Waveform type: Sine wave, square wave, pulse wave (duty cycle, pulse width and cycle time can be accurately set), triangle wave, rising saw-tooth wave, falling saw-tooth wave, for CMOS wave, DC level, half wave, full wave, positive step wave, inverse step wave, exponential rise, exponential fall, Lorentz pulse wave, multi-sound wave, random noise wave, trapezoidal pulse wave, sink pulse wave, amplitude modulation waveform, frequency modulation waveform and 99 groups of user-defined wave-forms.

Frequency characteristics:
- Sine wave frequency range: 1nHz-60MHz
- Square wave frequency range: 1nHz-30MHz
- Triangle wave frequency range: 1nHz-50MHz
- Pulse wave frequency range: 1nHz-30MHz
- TTL digital wave frequency range: 1nHz-20MHz
- Arbitrary wave frequency range: 1nHz-50MHz
- Pulse width adjustment range: 5nS~4S
- Pulse period adjustment range: 10nS~40S
- Frequency minimum resolution: 1nHz
- Frequency accuracy:±5ppm 0 to 50℃
- Frequency stability: ±3ppm per 1 year

Sine wave spectral purity:
- Total harmonic distortion: ≤0.5%（at 1kHz, 5Vpp）

Signal characteristics:
Square wave
- Rising/falling edge time: ≤10nS
- Overshoot: ≤10%
- Asymmetry: ≤0.1%

Ramp and triangle wave
- Linearity: ≤1%(less than 1MHz)
- Asymmetry: ≤1%(less than 1MHz)

Pulse wave
- Pulse Width: 5nS~4S
- Pulse period: 10nS~40S
- Duty cycle: 0.01%-99.99%
- Rising/falling edge: ≤10nS
- Overshoot: ≤10%

Arbitrary wave
- Wave length: 8192 points (8K points)
- Vertical resolution: 14 bits
- Minimum rise/fall time: ≤10nS
- Overshoot: ≤10%
- Arbitrary waveform non-volatile storage number: 99

Output characteristics:
Amplitude
- Amplitude range: Frequency≤1MHz, 2mVpp~25Vpp. 1MHz≤Frequency＜11MHz, 2mVpp~10Vpp. 11MHz≤Frequency≤60MHz, 2mVpp~5Vpp
- Amplitude resolution: 1mVpp
- Amplitude stability: ± 1% ±1mVpp (at 1 kHz, >10mVpp)
- Amplitude flatness: ±1% (0.1dB)<10MHz. ±2% (0.2dB)<10MHz~50MHz. ±10% (0.9dB)<50MHz~60MHz

DC bias
- Offset adjustment range: -9.99V to 12.00V
- Offset resolution：0.01V

Phase characteristics
- Phase adjustment range: 0°-359.9°
- Phase resolution: 0.1°

Waveform output
- Output impedance: 50Ω (nominal)
- Protection: Short circuit protection

Modulation characteristics:
- Modulation type: AM, FM, PM, ASK, FSK, PSK, PWM, Burst

AM
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/external
- Modulated wave: Sine wave, square wave, saw-tooth wave, noise wave, arbitrary wave
- Modulation depth: 0% to 200%
- Modulation frequency: 1mHz to 1MHz

FM
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Modulated wave: Sine wave, square wave, saw-tooth wave, noise wave, arbitrary wave
- Modulation frequency: 1mHz to 1MHz
- Frequency deviation: 0.1Hz to 10kHz

PM
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Modulated wave: Sine wave, square wave, saw-tooth wave, noise wave, arbitrary wave
- Phase deviation: 0° to 360°
- Modulation frequency: 1mHz to 1MHz

ASK
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Polarity: Positive and negative
- Rate: 1mHz to 1MHz
- ASK amplitude: 0% to 200%

FSK
- Carrier wave: Sine wave, square wave, saw tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Modulated wave: 50% duty cycle pulse wave
- Polarity: Positive and negative
- Rate: 1mHz to 1MHz
- Frequency hopping: 0.1Hz to 60MHz

PSK
- Carrier wave: Sine wave, square wave, saw tooth wave, arbitrary wave (except DC)
- Modulation source: Internal/External
- Polarity: Positive and negative
- Rate: 1mHz to 1MHz
- PSK phase: 0° to 360°

PWM
- Carrier wave: Pulse wave
- Wave inversion: Regular and reverse
- Pulse period: 0.01uS to 40S
- Pulse Width: 0.001uS to 4S

Burst
- Idle: Zero position, positive maximum, negative maximum
- Mode: Single, automatic
- Trigger source: Manual burst, CH2 burst, external burst (AC), external burst (DC)
- Pulse number: 1-1000000000

Measurement and counting function:
Measurement mode
- Measurement function: Frequency, positive and negative pulse width, period, duty cycle
- Coupling method: DC, AC
- Gate time: 0.001S-10.000S
- Measurement mode: Low frequency, high frequency
- Frequency measurement range: 1Hz~100MHz
- Input signal amplitude range: 2Vpp~20Vpp
- Period measurement: 10nS~4S
- Pulse Width: 4S
- Duty cycle measurement range: 0.01%~99.99%

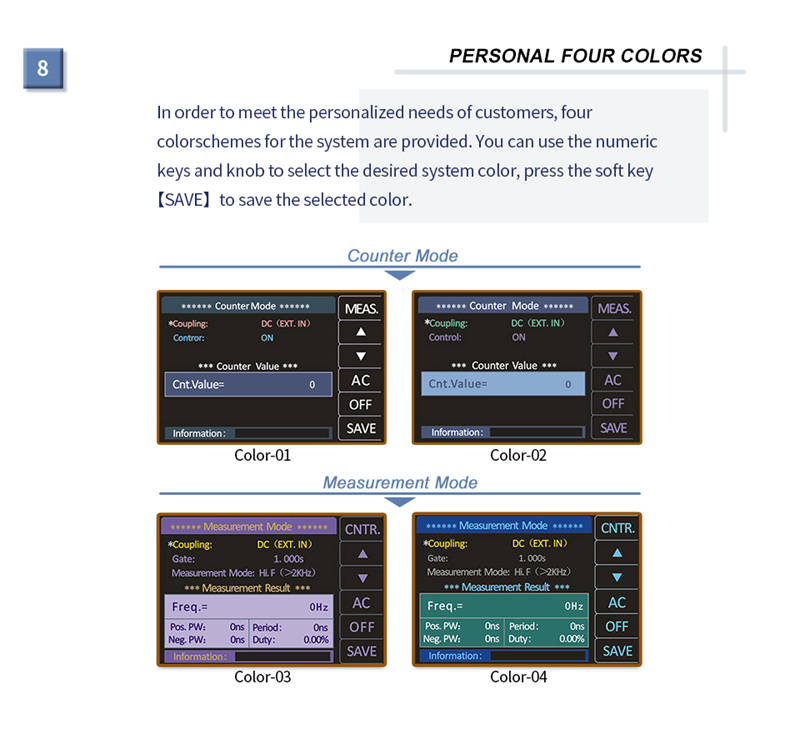

Counter mode
- Counter range: 0-4294967295
- Coupling method: DC and AC coupling
- Counting method: Manual

External modulation input characteristics:
- Input signal amplitude range: 0~3Vpp
- Input signal frequency range: DC~200kHz

Scanning characteristics
- Sweep channel: CH1 or CH2
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Sweep function: Sweep frequency, sweep amplitude, sweep duty
- Sweep mode: Linear, logarithmic
- Sweep direction: Increment, decrement, round trip
- Start/end frequency: Consistent with the upper and lower limits of the corresponding carrier frequency
- Start/end amplitude: Consistent with the upper and lower limits of the corresponding carrier amplitude
- Start/end duty cycle: Consistent with the upper and lower limits of the corresponding carrier duty cycle
- Sweep time: 0.01S-640S

Voltage control characteristics
- Voltage control channel: CH1 or CH2
- Carrier wave: Sine wave, square wave, saw-tooth wave, arbitrary wave (except DC)
- Voltage-control function: Frequency control, amplitude control, and duty cycle control
- Sweep mode: Linear, logarithmic
- Start/end frequency: Consistent with the upper and lower limits of the corresponding carrier frequency
- Start/end amplitude: Consistent with the upper and lower limits of the corresponding carrier amplitude
- Start/end duty cycle: Consistent with the upper and lower limits of the corresponding carrier duty cycle
- Voltage-control voltage range: 0V-5V, starting point and end point can be set arbitrarily

Programming features
- Running mode: Debugging, normal
- Storage: P00-P19
- Programming number: 00-99
- Programming time: Single serial number programming time 0-99S

General specifications:
Display
- Screen: 3.5-inch TFT color LCD display
- Resolution: 320*480
- Color: 64K true color

Store and load
- Quantity: 100 groups
- Location: 00 to 99 (The data of 00 storage location is loaded by default)

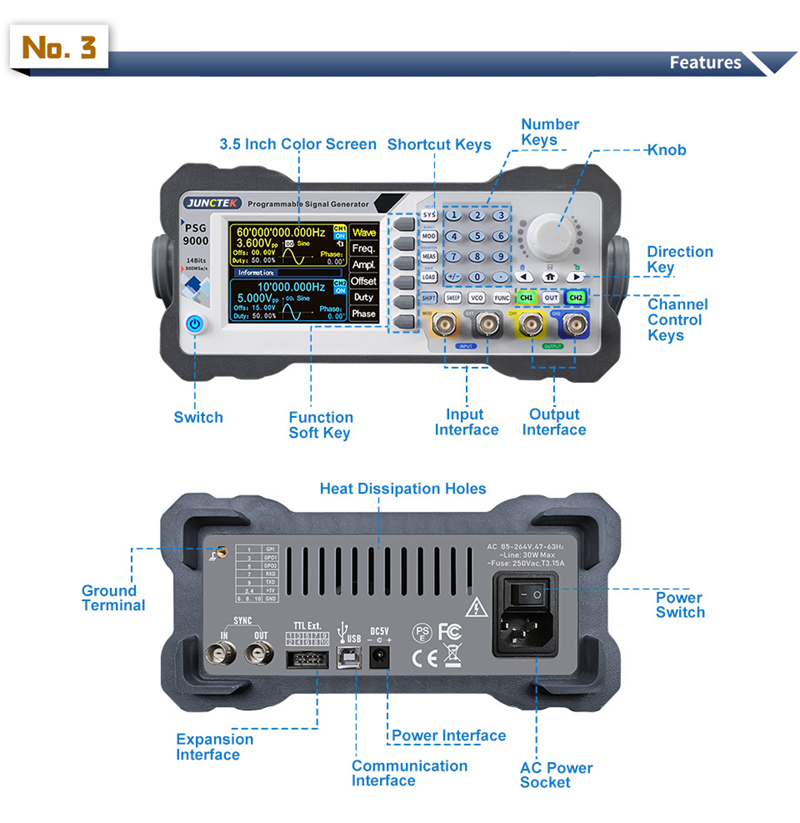

Interface
- Interface method: USB to serial interface
- Extension interface: Serial port with TTL level mode, convenient for secondary development
- Communication rate: Standard 115200BPS
- Protocol: Using the command line, the protocol is open

Power supply
- AC power: Supply voltage: 85V-264V, 47-63Hz. Power consumption: Less than 30W. Fuse: 250VAC, T3.15A.
- DC power: Supply voltage/current: DC5V±0.5V 3A

Environment
- Temperature : 0~40℃
- Humidity: Humidity<80%

More Information:
Operation Video:
https://www.youtube.com/watch?v=mBVYoYjNlKo

User Manual:
http://68.168.132.244/PSG9060_EN_manual.pdf

PC software/Communication protocol:
http://68.168.132.244/PSG9060_EN_Setup.zip

Package Included:
- 1 x Set of Signal Generator
