PSM300 566-590MHz In Ear Monitor System Wireless IEM System with 1 Receiver Supports Stereo Sound

PSM300 566-590MHz In Ear Monitor System Wireless IEM System with 1 Receiver Supports Stereo Sound

Features:
- Wireless in ear monitor system
- Comes with one receiver
- Supports stereo sound
- Supports frequency matching via infrared mode

Specifications:
Transmitter:
- RF carrier range: 566-590 MHz
- Number of channels: G (1~9)*C (1~16)
- RF output power: 100mW
- RF output impedance: 50 Ω
- RF interface: BNC
- Tuning bandwidth: 24 MHz
- Modulation: Digital modulation (GFSK)
- Sampling rate: 46.875KHz
- Resolution: 24Bits
- Audio dynamic range: 103dB+A
- Audio signal-to-noise ratio: 109dB+A
- Typical latency: 6 ms
- Audio processing: DSP
- Audio response: 20-20KHz
- FM mode: Manual + infrared
- Audio input: 6.35 mm (1/4") TRS
- Requirements of power supply: 12-15V (DC), 1000 mA
- Operating temperature range: -30 °C to 85 °C

Receiver:
- RF carrier range: 566-590 MHz
- Number of channels: G (1~9)*C (1~16)
- Tuning bandwidth: 24 MHz
- Demodulation: Digital demodulation (GFSK)
- Sampling rate: 46.875KHz
- Resolution: 24Bits
- Audio processing: DSP
- Audio response: 20-20KHz
- FM mode: Manual + infrared
- Audio output power: 80 mW (1kHz at distortion <1%, peak power, at 32Ω 80 mW)
- Minimum load impedance: 16 Ω
- Headphone output: 3.5 mm (1/8") stereo
- Audio dynamic range: 110dB+A (200Kohm)
- Audio THD: -94dB
- Receiving sensitivity: < -95dB
- Antenna interface: SMA
- Operating current: 3V 240±10MA (94% conversion efficiency)
- Operating temperature: -30°C to 85°C

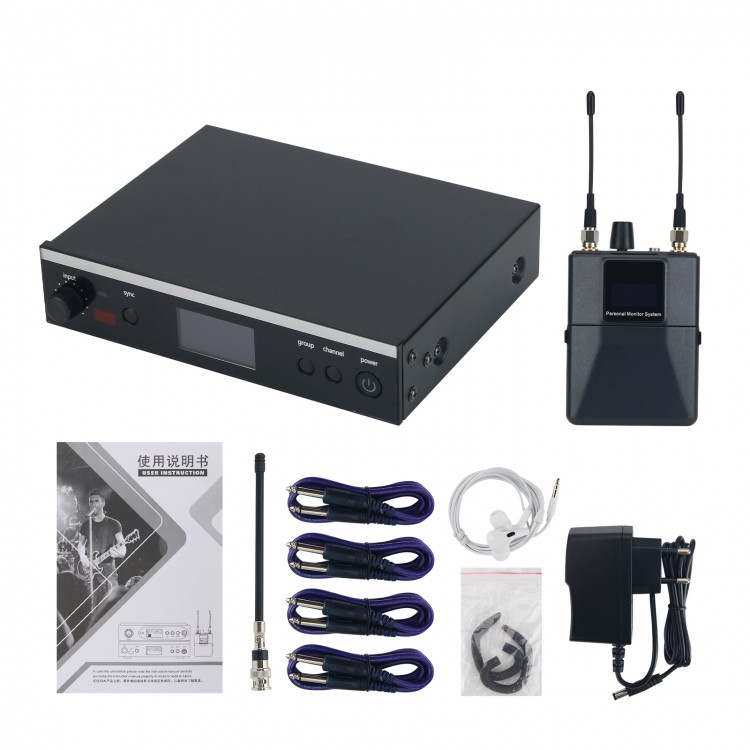

Package Included:
- 1 x Transmitter main unit
- 1 x Receiver
- 1 x Earphones
- 2 x Ear Hooks
- 1 x Antenna
- 1 x Power supply
- 4 x Cables

Packaging Details:
- Weight: 3kg

Note:
- AA batteries are not included.
