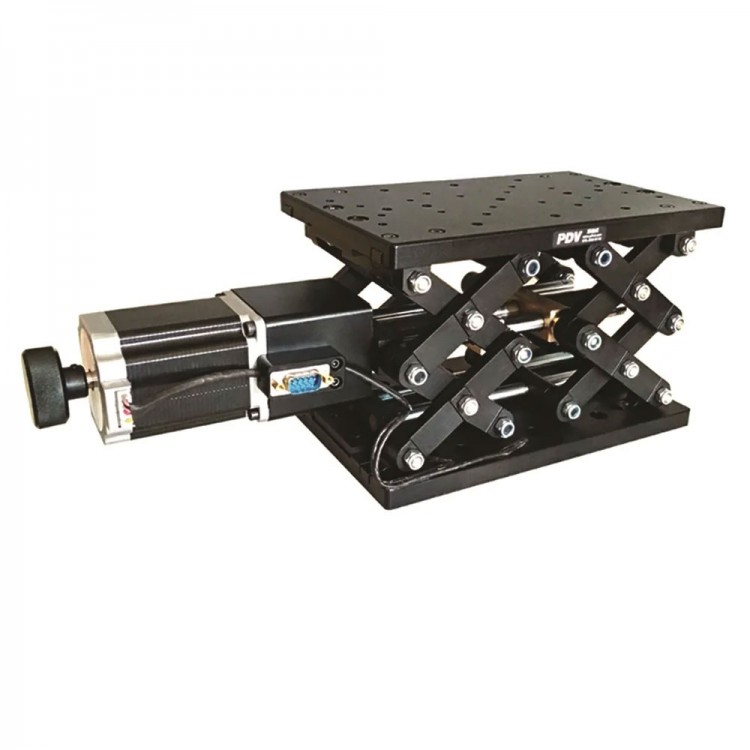

PT-GD402 Electric Lifting Platform Z-axis Motorized Lab Jack Sliding Rail 120mm Travel for Laboratory Equipment

Availability: In stock, usually dispatched in 1 business day

  • Price:$564.21
  • Price in reward points: 5642 Reward Points: 56
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $552.93 $541.64 $524.72 $502.15 Contact US
Quantity:

PT-GD402 Electric Lifting Platform Z-axis Motorized Lab Jack Sliding Rail 120mm Travel for Laboratory Equipment

Description:

- New construction ,new technology;the key index has up to the international level of the similar products by strictly inspection .This series products are used to laser precision processing,three dimensional scanning measurement system and so on.

Features:
- Equipped with a stepper motor as standard, the motion controller (not included) can achieve automated control over it.
- The lifting platform system adopts a scissor type lifting support and a dual guide rail five axis positioning mechanism to ensure smooth movement, high load-bearing capacity, and long service life.
- Adopting precision research and matching screw drive, it is comfortable to move and can be raised and lowered freely with small air return.
- The stepper motor and screw are connected through an elastic coupling, which enables synchronous transmission and good anti bias performance, greatly reducing eccentric disturbance and minimizing noise.
- The electric lifting platform can be used horizontally and can be combined with other types of platforms to form a multi-dimensional electric adjustment platform.
- Equipped with limit function, initial zero position function, replacement of servo motor, installation of rotary encoder, and acceptance of product modification.

Specification:

- Model: PT-GD402
- Travel: 120mm

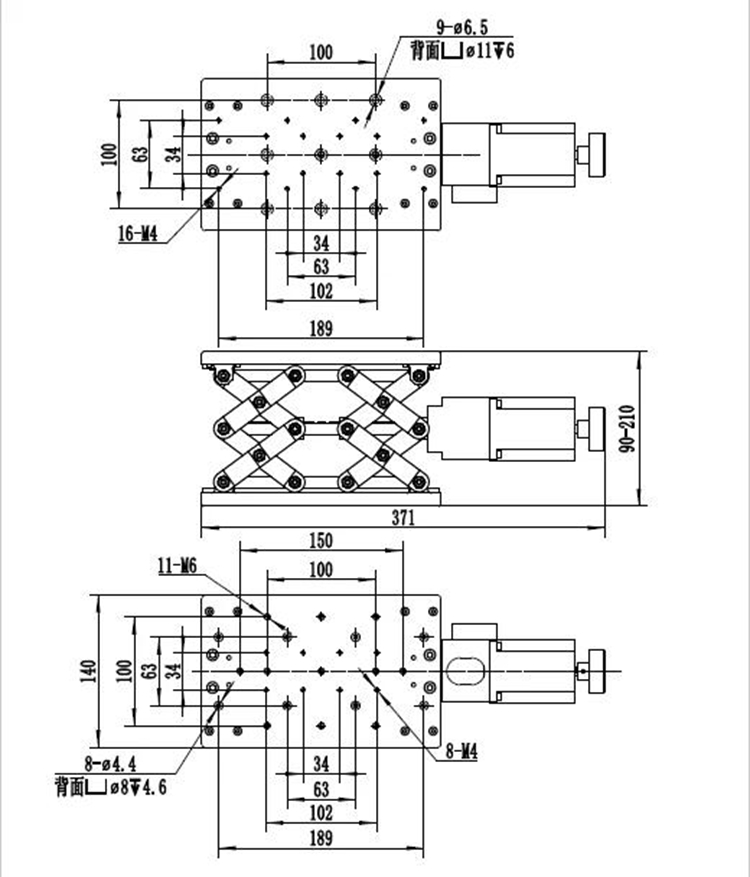

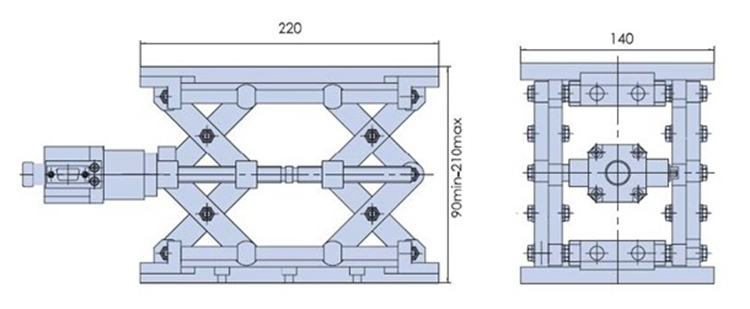

- Platform size: 220 x 140mm
- Drive mechanism: precision research on screw pairs
- Guide rail form: sliding guide rail
- Stepper motor (1.8°): 57BYG
- Body material: aluminum alloy
- Surface processing: anodized blackening
- Centre bearing: 10kg
- Weight: 6kg
- Minimum adjust distance: 5μm Non-MS driver; 0.25μm/pulse, 20MS driver
- Maximum velocity: 5mm/sec
- Repeatability: 10μm
- Backlash: 4μm
- Lost motion: 3μ

Package Included:
- 1 x Motorized Lab Jack
