Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $131.41 | $128.73 | $124.70 | $119.34 | Contact US |

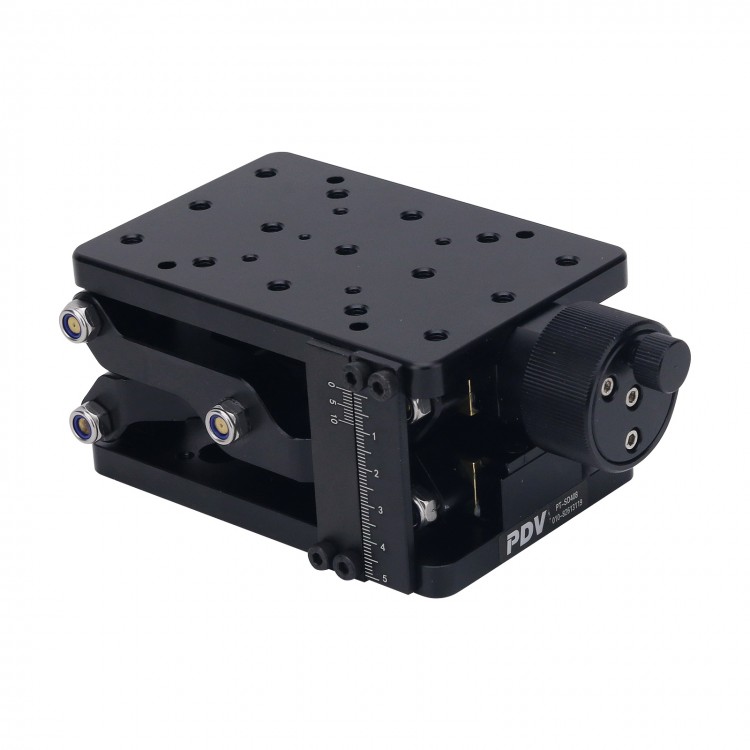

PT-SD408S Laboratory Scissor Jack High-Precision Lab Jack Stand (Travel 60MM/2.4") with Scale Ruler
Features:
- It is used for lifting adjustment with large travel range, non-quantitative and large load
- Scissor jack with refined lead screw drive and double guide rail five-axis over-positioning mechanism to ensure smooth movement and comfort, high precision and large load
- The upper and lower sides are designed with multiple holes, which has strong applicability and can be used as the installation surface
- Equipped with locking handwheel, safe and reliable to use
- The base and table are equipped with connection holes with standard hole spacing, which is convenient to use with other series of combinations
Specifications:
- Item Number: PT-SD408S (Installed scale ruler is available)
- Platform: 120 x 80mm/4.7 x 3.1"
- Drive mode: refined lead screw
- Travel Range: 60mm/2.4"
- Z small adjustment amount: 5μm (reference)
- Load Capacity: 20Kg/44.1Lb
- Net weight: 1.15kg/2.5lb
- Material: duralumin
- Surface treatment: anodized black
Package Included:
- 1 x Lab Jack
