PTHC-200DC Plasma Torch Height Controller Plasma THC Accessories for CNC Plasma Cutting Machines
Description:
PTHC-200DC is our new stand-alone THC, comparing to old XPTHCs, it has new features as follow:
1. Support Torch retaining cap IHS or Nozzle Contact (ohmic contact) IHS with any HF plasma. Great anti-interference improvement.
2. It has much higher accuracy than old XPTHCs. Standard accuracy is 1V, and its is enough to support HD plasma. Maximum cutting speed reaches 12000mm/min.
3. Support dynamic piercing and collision output to CNC.
Key Features:
1. Automatic Initial Height Sensing (IHS): Torch Retaining Cap IHS (ohmic contact) and Proximity Switch IHS are available. Proximity Switch IHS is for cutting dirty/rusty workpiece, needing the Anti-Collision Fixture designed by HYD (breakaway kit). It supports underwater cutting, too.
2. Anti-Collision Function: When the torch tip touches the workpiece, THC will automatically lift torch up to IHS height to avoid crashing. It is effective both in Manual/Automatic mode.
3. Freeze Automatic Height Control on Corner Signal: PTHC-200DC would freeze Automatic Mode on receiving corner signal from the CNC system to avoid torch diving on Cycle start/end, corner turning.
4. Support DC/AC24V power supply.
5. Dual speed during IHS, with better torch tip protection, and 6 indicators to easy trouble-shooting. When it gets problem, we can easily find the problem by the indicator's on/off state and make a fast solution.
6. THC sensitivity: torch retract height after cutting. Many functions are adjustable to user. Please send us an inquiry, we will bring you the latest details!
Specifications:
- Product name: PTHC-200DC Plasma THC
- Power supply: AC24V, 50/60HZ
- Suitable motor: DC24V DC motor
- Output power: 40-100W
- Drive mode: PWM mode
- Accuracy: ±0.1mm (mechanical structure)
- Automatic height adjustment range within the accuracy: 1-25mm from the surface of the workpiece
- Voltage ratio: External 50:1
- Height controller operating temperature: -10°C to 60°C
- Adaptable torch lifting speed: 1-4m/min
- Maximum welding tracking test speed: 12000mm/min

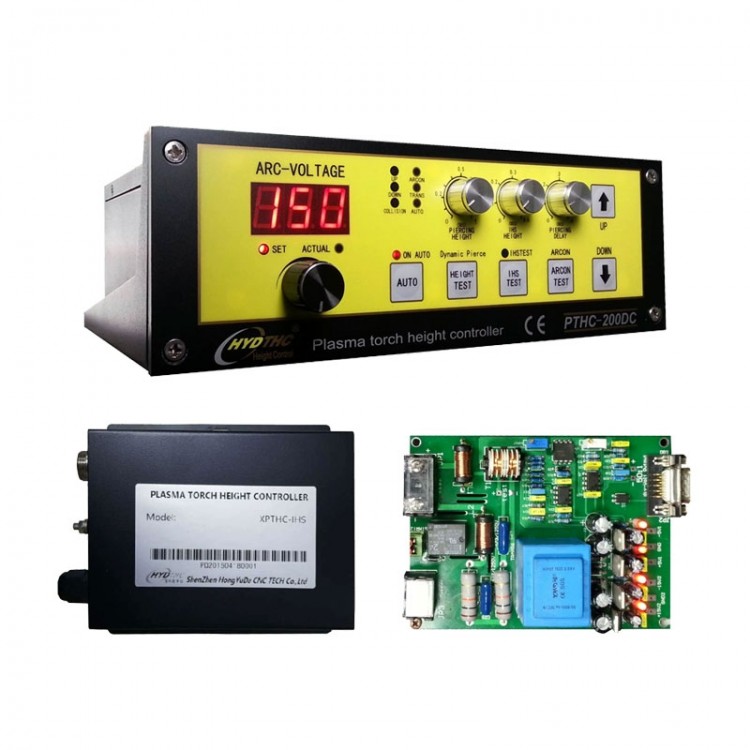

Package Included:
- 1 x PTHC-200DC Controller
- 1 x XPTHC-IHS Controller
- 1 x Voltage Divider
- 3 x Cables
- 1 x High Voltage Isolator
- 1 x Proximity Switch
