| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $54.51 | $53.40 | $51.73 | $49.50 | Contact US |
SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

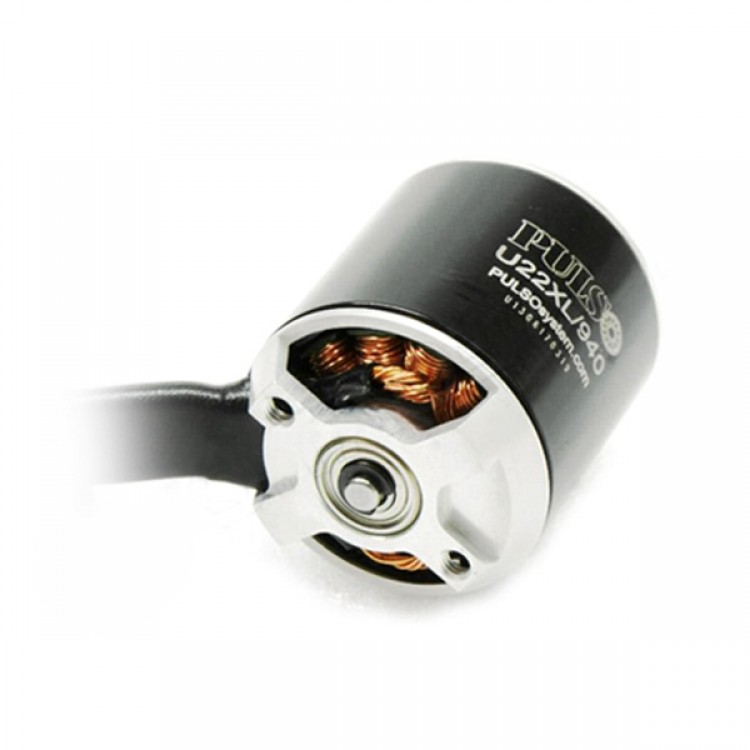

PULSO U22XL 2221 KV940 12N14P Brushless Motor for UAV Multicopter FPV Hexa-rotor
Specifications:
- Stator Dia.: 22mm
- Stator thickness: 21mm
- KV: 940
- Slot Number: 12
- Poles: 14
- Rotor Max. Diameter: 27.7mm
- Shaft Dia.: 3.17mm
- Motor length: 32mm
- Botton mount pitch: 19mm
- Weight: 93g(with cable)
| Model No | Kv | Configuration | Wind | Stator(mm) | Rotor(mm) | Shaft(mm) | Weight(g) | |||
| Dia. | Height | Dia. | Length | Dia. | Length | |||||
| U22M/785 | 785 | 12N/14P | 34Δ | 22 | 12 | 28 | 22.7 | 3.17 | 28.8 | 49 |
| U22M/740 | 740 | 12N/14P | 36Δ | 22 | 12 | 28 | 22.7 | 3.17 | 28.8 | 49 |
| U22L/1180 | 1180 | 12N/14P | 16Δ | 22 | 17 | 28 | 27.7 | 3.17 | 33.8 | 65 |
| U22L/870 | 870 | 12N/14P | 20Δ | 22 | 17 | 28 | 27.7 | 3.17 | 33.8 | 65 |
| U22L/760 | 760 | 12N/14P | 22Δ | 22 | 17 | 28 | 27.7 | 3.17 | 33.8 | 65 |
| U22XL/940 | 940 | 12N/14P | 16Δ | 22 | 21 | 28 | 31.7 | 3.17 | 37.8 | 75 |
| U22XL/760 | 760 | 12N/14P | 20Δ | 22 | 21 | 28 | 31.7 | 3.17 | 37.8 | 75 |
