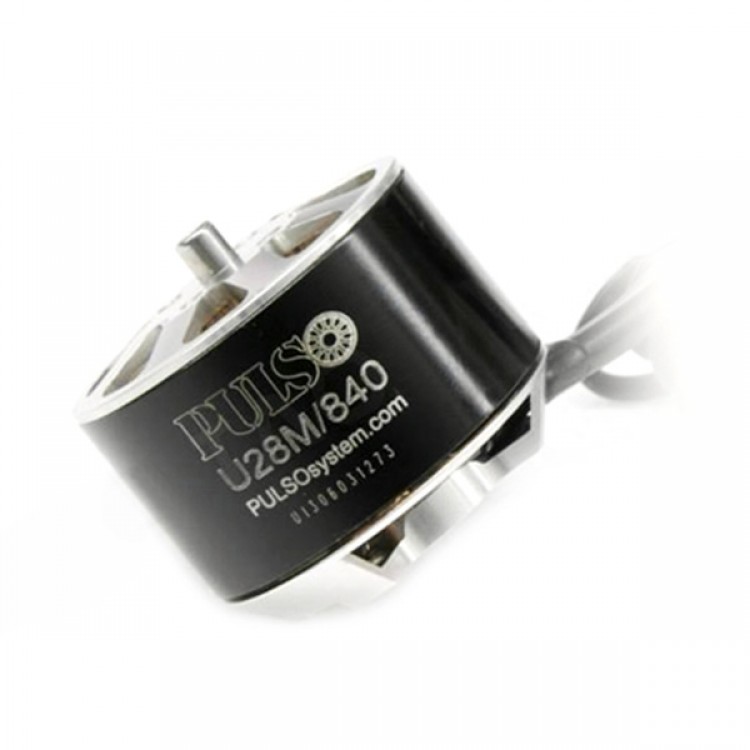

PULSO U28M 2814 KV840 Outrunner Brushless Motor 12N14P Special for Multicopter
Specifications:
- Stator Dia.: 28mm
- Stator thickness: 14mm
- KV: 840
- Slot Number: 12
- Poles: 14
- Rotor Max. Diameter: 43mm
- Weight: 108g
- Adopts NSK bearing, CNC processing
| Model No | Kv | Configuration | Wind | Stator(mm) | Rotor(mm) | Shaft(mm) | Weight(g) | |||
| Dia. | Height | Dia. | Length | Dia. | Length | |||||
| U28M/840 | 840 | 12N/14P | 20Δ | 28 | 14 | 35 | 28 | 4 | 33.5 | 86 |
| U28M/760 | 760 | 12N/14P | 22Δ | 28 | 14 | 35 | 28 | 4 | 33.5 | 86 |
| U28L/840 | 840 | 12N/14P | 14Δ | 28 | 20 | 35 | 34 | 4 | 39.5 | 111 |
| U28L/740 | 740 | 12N/14P | 16Δ | 28 | 20 | 35 | 34 | 4 | 39.5 | 111 |
| U28L/350 | 350 | 12N/14P | 32Δ | 28 | 20 | 35 | 34 | 4 | 39.5 | 111 |
