| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $115.88 | $113.51 | $109.96 | $105.23 | Contact US |
New Original NC400 High-end Audio Power Amplifier Module 580W Ultra-low Distortion Amplifier for HYPEX
$104.21
New Original NC500 Audio Power Amplifier Module Ultra-low Noise and Distortion Amplifier Board for HYPEX
$196.11
Secondhand U-PRO2S 280W+280W Digital Class D Power Amplifier Board Ultra-low Distortion PWM Modulator for PSCAL
$74.72

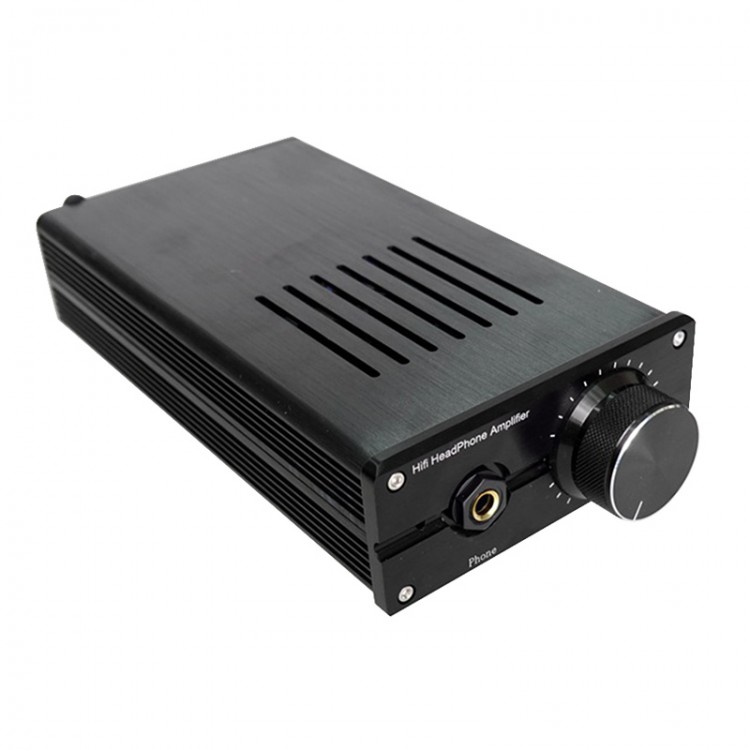

Pure Class A Headphone Amplifier HiFi Headphone Amplifier LA5SE MOS-FET with Black Panel
Specifications:
- Output Power: (1KHZ sine wave equivalent undistorted power): 300mW/600 ohms, 1200mW/32 ohms.
- SNR: >102dB.
- Output Impedance: 47 ohms.
- Voltage Amplification Gain: 19 times in high gain mode.
- Maximum Output Voltage Swing: Greater than ±13V (equivalent to 26V).
- Input Interface: RCA two-channel socket.
- Output Interface: 6.35 headphone output.
- Average Power Consumption: AC 220V<15W.
- N.W.: 2.2 kg.
Package Included:
- 1 x Class A Headphone Amplifier with Black Panel
Note:
- Due to pure class A amplifier, it generates heat. Thank you for your understanding!
- It is designed for high-end headphones, such as HD600, HD650, HD800, DT880, T1, K601 and K701. We have reference tuning for most headphones.
- Its op amps work at voltages above 20V.
- The amp has high gain and high power, so it is not suitable for small earplugs.
- It is perfect for K701, HD650 HD800, 600 ohms DT880 and T1.
