Pure Digital Amplifier Bluetooth Amp 4.2AUX Input Support APTX NFC USB/AUX/Optical/Coaxial D802C PRO

Pure Digital Amplifier Bluetooth Amp 4.2AUX Input Support APTX NFC USB/AUX/Optical/Coaxial D802C PRO

Description:
FX-Audio D802C PRO CSRA64215 Wireless Bluetooth 4.2 Support APTX NFC USB /AUX/Optical/Coaxial Pure Digital Audio Amplifier 24Bit/192KHz 80W*2 OLED

Compare to old version, D802C PRO upgrade:
1. Bluetooth module change to CSRA64215, 4.2 Version, support APTX
2. USB Chip change to CM6642, support 24Bit/192kHz, no need driver.
3. with NFC Function
4. With high and low gain adjustment

Specifications:
1. Input: NFC + Bluetooth 4.2 (APTX support) + AUX + Optical + Coaxial + USB <support some phones OTG>
2. Reduce the number of all-digital transmission mode conversion loss, HIFI level sound quality.
3. Supports the input frequency is displayed using 44.1K-192K
4. The use of non-interference EL OLED display
5. luminous remote control
6. HIFI a key switch-through mode
7. The amplifier using STA326 digital amplifier chip, superior performance than STA350BW, 80W + 80W high dynamic design, effortlessly push floor box
8. Bluetooth receiver chip CSRA64215, support lossless transmission
9. Sound Terminal interpretation of the concept of the digital audio stream
  Wireless Bluetooth 4.2 (CSRA64215) connection which sampling 16Bit/48KHz.
10. The use FFX technology, high quality, low power consumption, environmental protection
11. The small signal power using a good portion of the virtual battery-powered technology, high reliability while improving the line, sound more mellow.
12. Meet Blu-ray and HD-DVD HD audio interface standards demanding sampling rate 44.1-192k automatically detect and display the frequency band, to identify all the false Signals
13. Perfect speaker protection, increase the DC output protection, the use of opto-isolated detection, mcu automatic control, even in the most extreme cases can still provide Speaker
14. The two-channel output (stereo)
15. The sampling rate:
44.1-192kHz (coaxial, optic)
44.1-192kHz (computer USB)
AUX: 24Bit/48kHZ
Bluetooth: 16Bit/48kHZ
16. Support 16-24bit input
17. Frequency response: 10Hz-22kHz (+-3dB)
18. Output Impedance: 4-8Ω
19. Maximum output power: 80w / 4Ω 50w / 8Ω RMS
20. Dynamic Range: 102DB
21. SNR: -90db
22. Power 160w (RMS)
23. Size: 178 * 117 * 35mm (not including protruding parts)
24. Weight: 1.36kg
Rated power: DC32V, AC110V-250V

Bluetooth uses: (NOTE: Bluetooth and AUX input, press the MODE key)

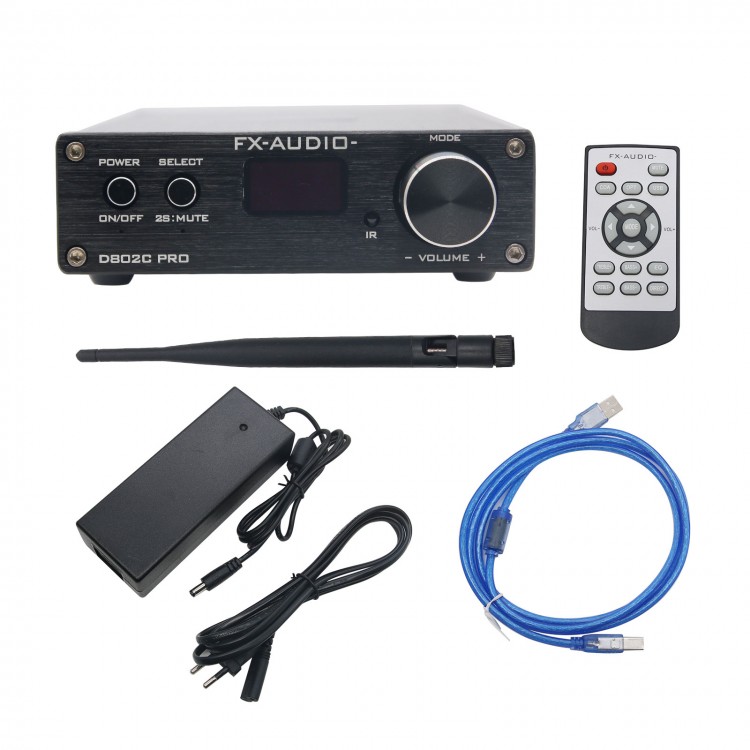

Package Included:
-1 x D802C PRO Amplifier
- 1 x Remote Control
-1 x 5DB Antenna
-1 x 32V 5A Power Adapter
-1 x Retail Box
