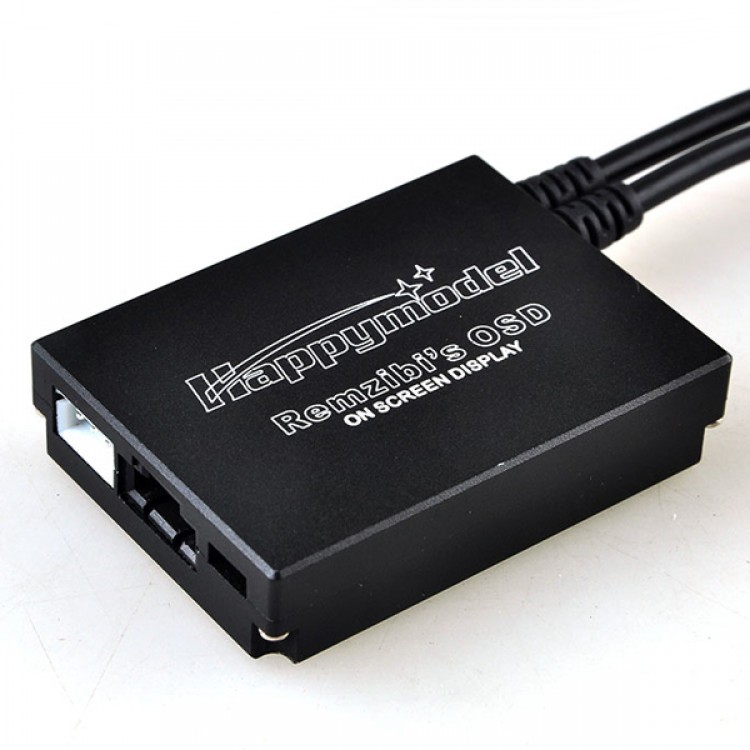

FPV Remzibi OSD Multicopter OSD Height Voltage Speed Display for APM 2.52 MWC Flight Control
Descriptions:
- Supply power requirement: 7V-14V (ie: 2S or 3S Lipo)
- Video voltage measurment range 0-15V
- Engine(ENG) voltage measurment range 0-30V
- General purpose ADC measurment - Build your own or use off the shelf components for many advanced readings - ie. Temperature, Amps, Air Speed, Prop Speed, RSSI, etc.
- Video signals - standard PAL or NTSC
- GPS - any GPS 5V supply with NMEA protocol with TLL standard TX RX signals (however best results and advantages are with dedicated GPS module working 5Hz update position)
- Weight : 16 gram (OSD + dedicated GPS)
- Printed OSD board size 20mmx45mm (0.78"x1.77")
Feature:
- PC connection for configuration/calibration purposes using dedicated PC program
- No need for a free channel on your receiver for OSD to function
- GPS detection and configuration automaticaly
- Home autosave function configurable based on number of satelites - button "save home" works independently
- Metric(km/h) or feet(MPH) units - configurable
- Zero altitude to airfield level - configurable
- Fully configurable screen layout (no more cropped off data around the screen border like some other OSD's)
- Graphical symbols and fonts configurable (Font editor for creating your own symbols and characters)
- Voltages calibration function and all ADC inputs including alarms
- Frequency calibration for Hz or RPM (gain definable)
- PC configuration software includes GPS emulator for testing and setup purposes.
- Language Editor - Currently available in English, Polish and French. Simple to use langauge editor can be used to translate to any other language.
PAckage included:
- 1 x OSD
