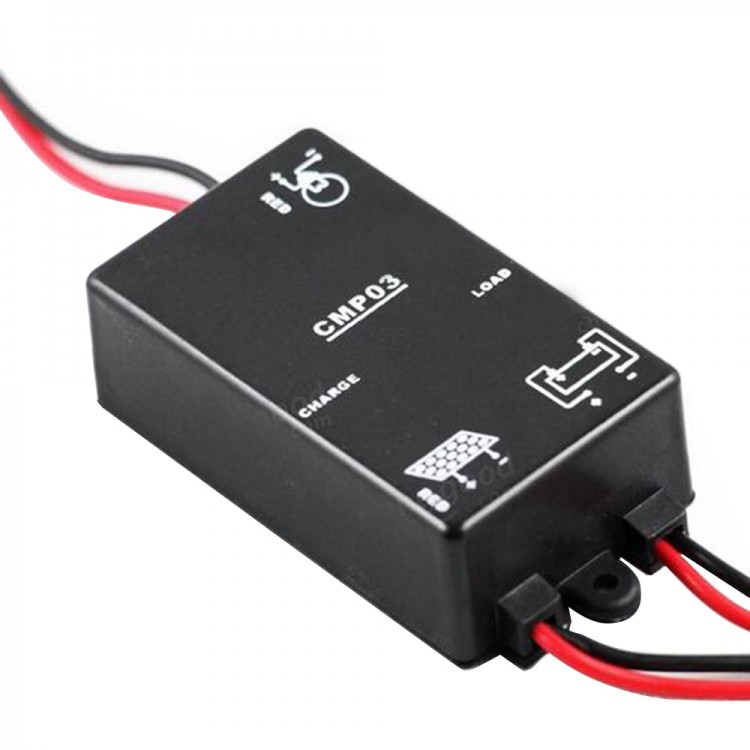

PWM Solar Controller 3A 12V Solar Panel Lighting Timer for Solar Garden Lighting Yard Lights Control CMP03

PWM Solar Controller 3A 12V Solar Panel Lighting Timer for Solar Garden Lighting Yard Lights Control CMP03

Description:
- Light control:When daylight starts to occur then the light source goes off. Meanwhile the Solar Panels will charge the batteries. when there is no sunlight the garden light will switch on.
- Time control:There is an eight hours time control,that means it will go off when the Lights automatically switch off after 8 hours.

Function:
1. Prevent the battery from over charging, over discharging and Reverse discharging to solar panel during nights.
2. Controller will start the lighting system in the evening automatically according to the surrounding luminance.
3. Controller can automatically shut down the lighting system:
A: Automatically shut down the light at dawn when battery is full.
B: Automatically shut down the light when battery is low.

Indicator:
1.  One charging indicator, light indicates strong charging, flash indicates float charging, not
light indicates stop charging.
2.  One Load indicator, light indicates there is power output, the loads could normal working,
not light indicates no output, check whether the battery is in low-voltage or the connection is
OK .

Attention:
- Please check the rated voltage of the solar panel and loads,they must be same with controller,all their rated voltage should be 6V or 12V.
- The controller can not short circuit.
- Forbid use other DC power supply instead of solar panels for the battery charging through the controller.

Specification:
- Model:CMP-03
- Rated Voltage:DC12V
- Max Current:3A
- Voltage of solar panels:36W(3A,12v)
- Charge-stop Voltage: 14.4V
- Coefficient of Stop Voltage and Temp:-3mV/degree/cell
- Supply-stop Voltage:10.6V
- Supply-resume Voltage:12V
- Light Control Mode:Visibility 20M
- Working Temp:-10- +40degree;
- Weight:33g

Package included:
- 1 x Solar Controller
- 1 x Maunal
