PX4 Pixhawk 2.4.8 32 Bit Flight Controller with Telemetry M8N GPS Minim OSD PM Buzzer I2C PPM

PX4 Pixhawk 2.4.8 32 Bit Flight Controller with Telemetry M8N GPS Minim OSD PM Buzzer I2C PPM

Features:
1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data

Specifications:
Microprocessor
1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor
Sensor
1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 precision barometer
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

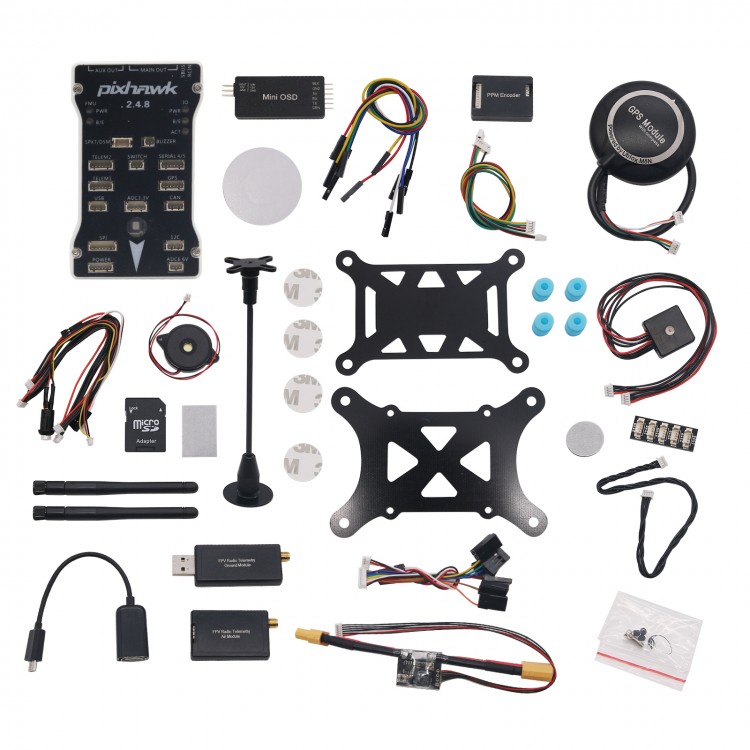

Packing List:
Pixhawk 2.4.8 32bit ARM Flight Controller x 1
Safety button and buzzer x 1 (2 kinds of design send at random)
RGB x 1
8G TF card (IO firmware has written) x 1
Neo-M8N GPS Module x 1
Black GPS Holder x 1
Power Module x 1 ( yellow and black color XT60 connector PM send at random）
Minim OSD w/ shell x 1 ( 2 kind of OSD cable send at random)
I2C Splitter Expand Module x 1
PPM Module w/ shell x 1
433/915 MHZ telemetry x 1 (Optional)
6pin turn 6pin cable x 1
4pin turn 4pin cable x 1
3pin DuPont line x 1

NOTE:
- 433/915 MHZ telemetry for your choice. Please leave a message about which one you want when purchasing.
- Before connect with the computer, you need to insert the SD card first, then flash the program, otherwise the LED indicator will not light up.
- Please make sure you read these wikis and videos before you use. And did not just connect then say "LED Indicator not flash" or not calibrate well then open dispute.
