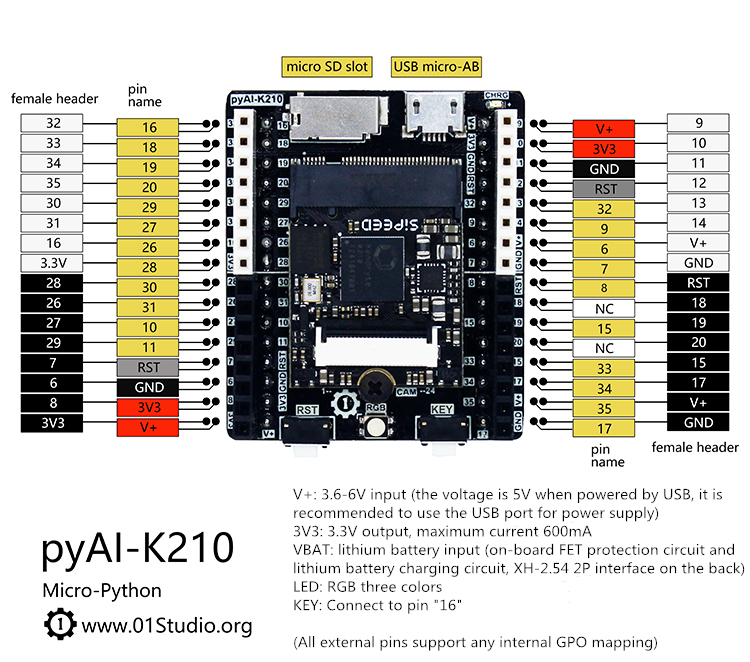

pyAI-K210 Core Board Python Development Board AI Machine Vision with pyBase OLED 16G SD Card
pyAI-K210 Description:
pyAI-K210 is a development board designed and developed by 01 Studio, based on Jianan Technology edge computing chip K210 (RSIC-V architecture, 64-bit dual-core) solution. Its interface is compatible with Micro-Python pyBoard.
Features:
-Compatible with pyBoard interface.
-Onboard lithium battery input interface and charging circuit.

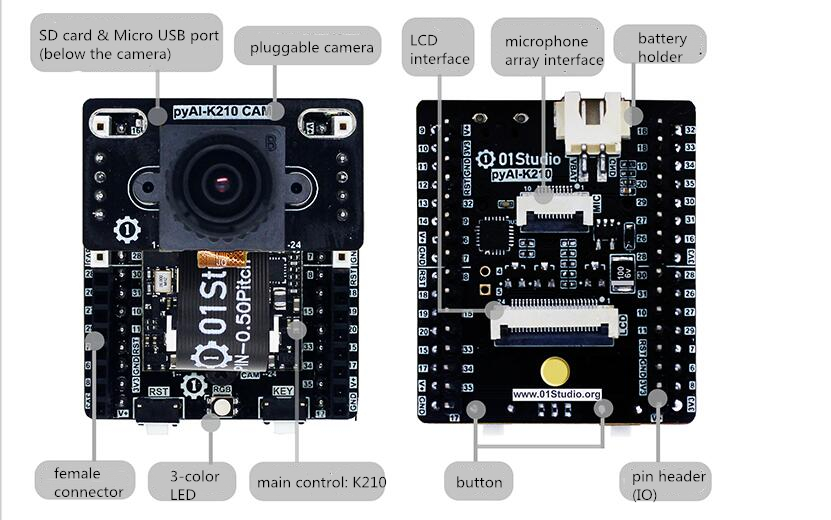

-Onboard camera, microphone array, LCD interface, reasonable layout, clear screen.
Specification:
pyboard interface: pyBoard, pyWiFi, pyAI series core boards
2.54mm pin header: leads all interfaces of pyboard
2 buttons: lead RST and USR buttons
Potentiometer: ADC input
Passive buzzer: DAC output
Button battery holder: install CR1220 battery pack
Servo interface: servo interface X1-X4 (connecting to the servo requires external isolation circuit)
OLED interface: 4P/0.96 inch/2C/OLED display
1.77-inch LCD interface: suitable for 01 Studio1.77 inch LCD display
2.4-inch LCD interface: suitable for 01 Studio 2.4 inch LCD display
Temperature sensor: DS18B820
Humidity temperature sensor: DHT11
Sensor interface 1: 3P foolproof interface for external sensors
Sensor interface 2: 13P foolproof interface for external sensors
Communication interface: 4P foolproof interface for external UART/12C equipment
Lithium battery charging circuit: charge the connected lithium battery (red light: charging, green light: fully charged)
pyBase Description:
pyBase is a bottom board designed by 01 Studio for pyAI-K210. pyBase has rich on-board resources while designing peripheral interfaces, which is very extensible. Micro-Python basic development kit consists of pyAI-K210, pyBase, LCD display, this kit can realize more Micro-Python experiments, the following is a detailed function description:
Package List:
-1 x pyAI-K210 Board
-1 x OV2640 Camera Module (with 6cm ribbon cable)
-1 x 2.8 inch LCD (with 20cm ribbon cable)
-1 x pyBase Board
-1 x 0.9 inch OLED
-1 x 16G SD Card
-1 x Lithium Battery
-1 x Micro USB Cable
