pyAI-K210 Core Board Python Development Board AI Machine Vision With pyBase OLED 16G SD Card Lens

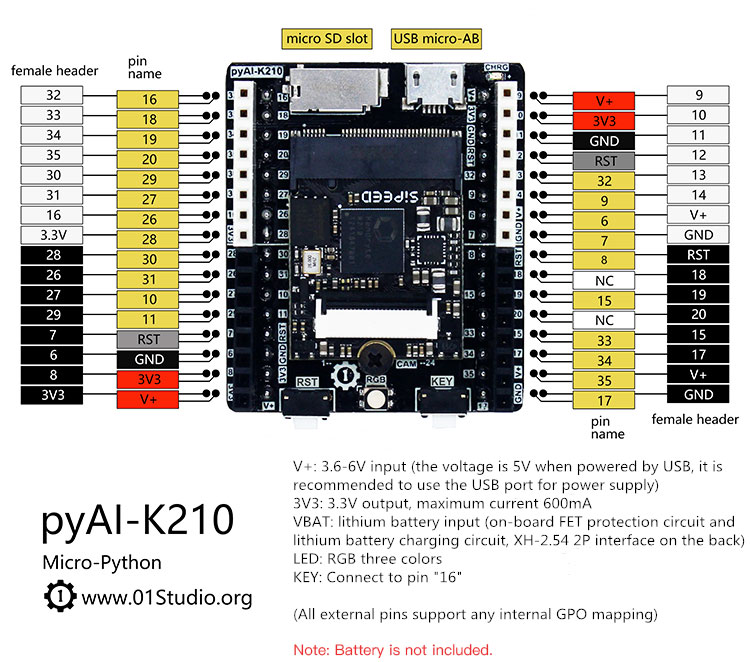

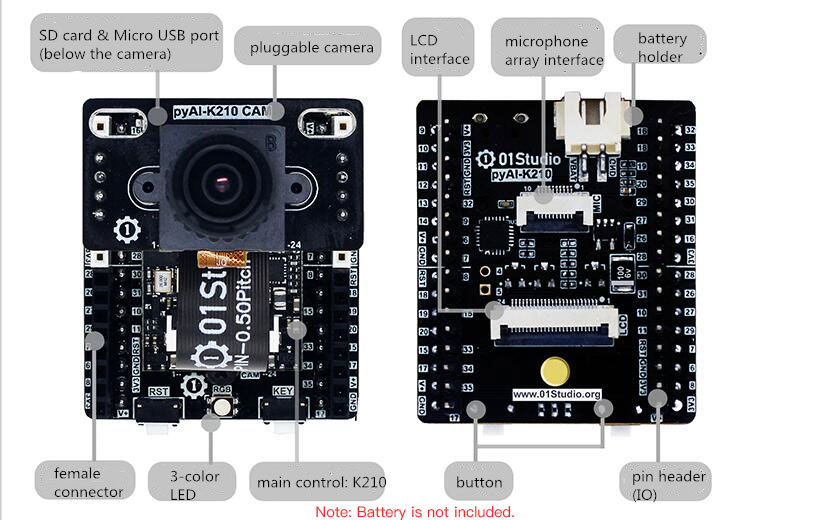

pyAI-K210 Description:
pyAI-K210 is a development board designed and developed by 01 Studio, based on Jianan Technology edge computing chip K210 (RSIC-V architecture, 64-bit dual-core) solution. Its interface is compatible with Micro-Python pyBoard.
Features:
- Compatible with pyBoard interface
- Onboard camera, microphone array
- LCD interface, reasonable layout
- Clear screen
Specifications:
- Pyboard interface: pyBoard, pyWiFi, pyAI series core boards
- 2.54mm pin header: leads all interfaces of pyboard
- 2 buttons: lead RST and USR buttons
- Potentiometer: ADC input
- Passive buzzer: DAC output
- Servo interface: servo interface X1-X4 (connecting to the servo requires external isolation circuit)
- OLED interface: 4P/0.96 inch/2C/OLED display
- 1.77-inch LCD interface: suitable for 01 Studio1.77 inch LCD display
- 2.4-inch LCD interface: suitable for 01 Studio 2.4 inch LCD display
- Temperature sensor: DS18B820
- Humidity temperature sensor: DHT11
- Sensor interface 1: 3P foolproof interface for external sensors
- Sensor interface 2: 13P foolproof interface for external sensors
- Communication interface: 4P foolproof interface for external UART/12C equipment
- Charging indicator: red light: charging; green light: fully charged

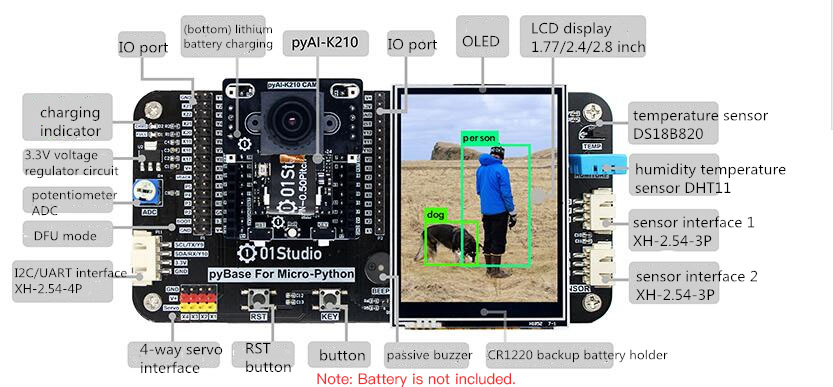

pyBase Description:
pyBase is a bottom board designed by 01 Studio for pyAI-K210. pyBase has rich on-board resources while designing peripheral interfaces, which is very extensible. Micro-Python basic development kit consists of pyAI-K210, pyBase, LCD display, this kit can realize more Micro-Python experiments, the following is a detailed function description:

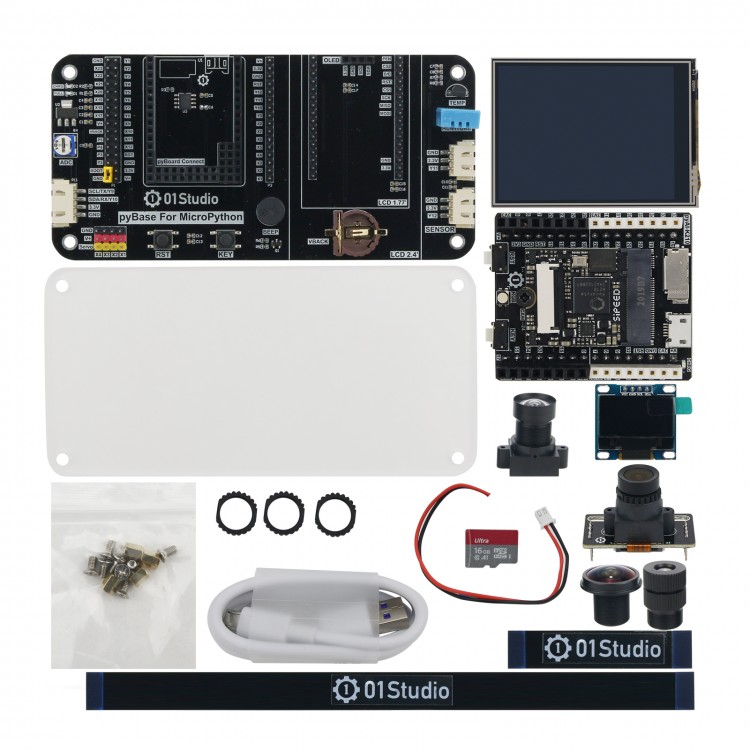

Package List:
- 1 x pyAI-K210 Board
- 1 x OV2640 Camera Module (with 6cm ribbon cable)
- 1 x 2.8 inch LCD (with 20cm ribbon cable)
- 1 x pyBase Board
- 1 x 0.9" OLED
- 1 x 16G SD Card
- 1 x Micro USB Cable
- 3 x Lens
Note:
- It is recommended to use a CR1220 battery which is not included in the package.
