PZ-X6800S DSP Car Power Amplifier Car Power Amp 6 IN 10 OUT for Premium Audio Sound System

PZ-X6800S DSP Car Power Amplifier Car Power Amp 6 IN 10 OUT for Premium Audio Sound System

Description:
PZ-X6800S is a Premium Car Audio 8CH Amplifier with 10CH DSP Processor upgrade for cars with factory OEM Amplifiers, such as for Bose, JBL, Harman Kardon, BMW HiFi, L7, Burmester, Infinity, Dynaudio, etc.

It is easy to install. Just plug and play. It keeps safety & saves space for your car. Thanks to invisible installation, you can put it under your seat to keep it tiny & clean.

PZ-X6800S delivers an extremely compact sound power plant in a shapely housing with astonishing 8 channels power output, including a freely configurable 10-Channel DSP. 6ch high level input with 10ch output freely input & out mixer. PZ-X6800S Amp offers multi upgrade solutions for you, CH1~CH4 with 4X50W RMS which you can drive for your normal speakers like tweeter and rear door speakers and CH5~CH8 with 4X75W output power which you can drive for your under seat woofers and front door speakers. The compact sound miracle is particularly suitable for loudspeaker systems in 3-Way active operation. With the DSP, the crossover frequencies, time alignment and frequency corrections can be perfectly adjusted.

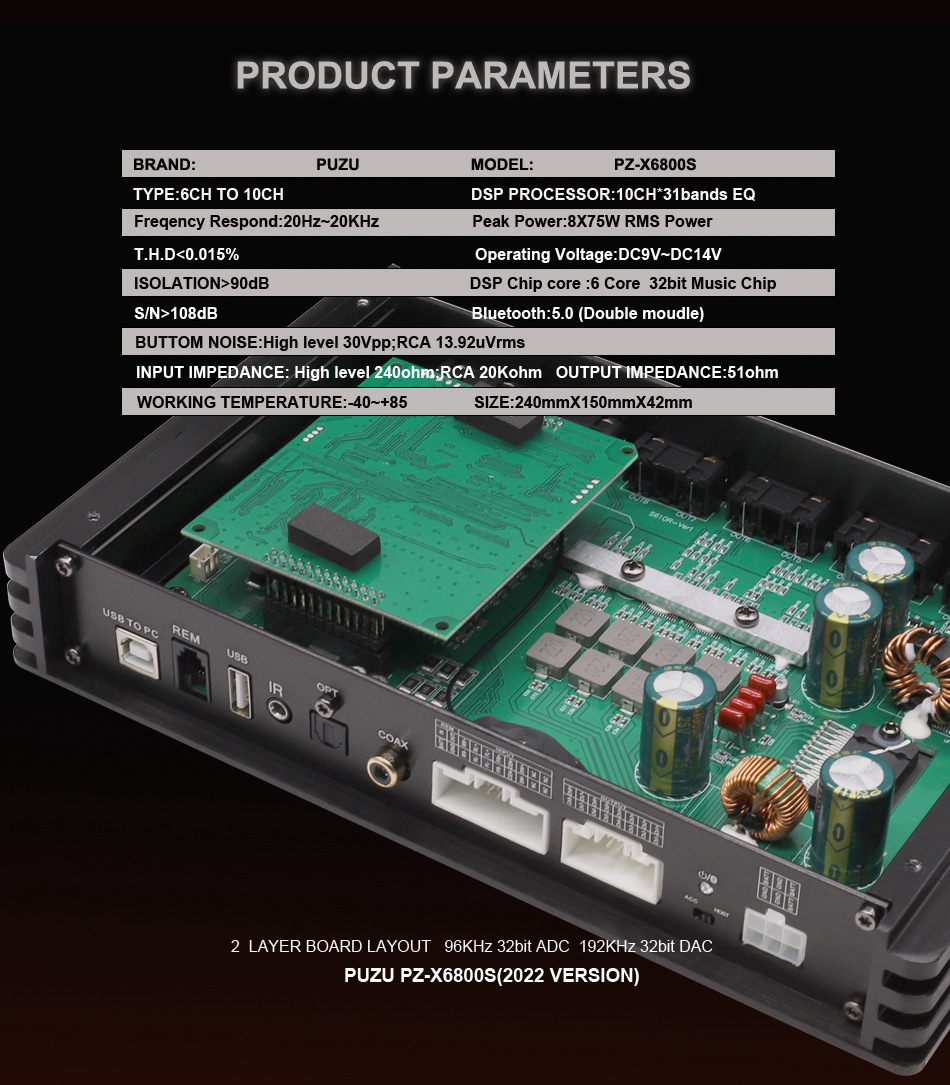

Technical Data:
Output power RMS/MAX
- CH1~CH8: 4ohm 4x50/150W (CH1~CH4); 4x75/180W (CH5~CH8)
- CH1~CH8: 2ohm 4x110/260W (CH1~CH4); 4x150/320W (CH5~CH8)
- Input: 6X high level speaker input; Optical SPDIF input; USB input; Coaxial input; Bluetooth input; 2CH RCA (AUX L/R) input
- Input sensitivity: 5~11volts
- Outputs: 8xspeakers; 10x RCA low level output
- Output voltage RCA: 0.8~3V
- Frequency response: 20Hz~20KHz
- DSP resolution: 64bit
- DSP power: 295MHz
- SNR: 108dB
- Isolation: 90dB
- Working voltage: 10.5~16Volts
- Product size: 240 x 150 x 42mm/9.4 x 5.9 x 1.7
- THD: <0.015%
- Damping factor: 100

Main Parameters of Sound Tuning Software:
- Frequency range 20Hz~20KHz, 1Hz steps
- Q: 0.40~128 0.01 steps
- Gain: -20.0dB to +20dB, 0.1dB steps
- High pass and low pass
- Phase control
- Specialized type filtering: For Butterworth, Linkwitz-Rile, and Bessel
- Filter crossover pionts: 20Hz-20KHz,1Hz steps
- Slopes: 6dB, 12dB, 18dB, 24dB, 30dB, 36dB, 42dB, and 48dB
- Up to 20ms of time delay per channel delay unit (ms, cm, and inch)
- Save and share tuning presets (8 presets mode available)
- Sources: Bluetooth audio, High-level input (head unit signal), optical SPDIF, Coaxial input, U disc, Analog AUX inputs (aftermarket head unit signal)
- LCD remote control for volume, preset store/recall, source selection (purchase separately)
- Matrix mixing allows for summing and input/output signal management
- Free App for Android to download
- Free software for Windows system to download
- Limiter: 0.1dBu~6dBu 0.1dBu steps
- Release Time: Atk*2, Atk*4, Atk*6, Atk*8, Atk*16, and Atk*32
- AT.time: 0.3ms~100ms 0.1ms steps

Package Included:
- 1 x DSP Amplifier

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
