Attention:
- This product can not be used to power down. Therefore, when it is discharging to the cut-off voltage, users need to manually disconnect the load.
- The wiring sequence cannot be mistaken.
- The load cannot exceed the rated power.
- This module is suitable for indoor use, not outdoor use.

Description:
The battery meter is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, SOC, energy consumption, and running time of various batteries. Measured data can be displayed via its LCD screen.

Features:
- 9-in-1 battery tester: It can be used to test voltage, current, power, capacity, internal resistance, energy consumption, SOC, running time and discharge impedance
- 360° viewing angle: Large blue film STN LCD screen enables full viewing angle
- Screw-free installation: Push-to-press terminals enable quick and easy installation, no screws required
- Beautiful appearance. Light and convenient to use
- Large LCD screen: With English display interfaces. One screen can display 9 sets of data
- High-precision chip control:
High-precision chips, good electronic devices, double-sided typesetting design and firm, safe and reliable welding. The smart chip has a built-in microprocessor function and make the measurement results more accurate
- The shell is made of reinforced nylon, which has good elasticity and is not easy to break. Delicate material and comfortable hand feel
- With backlight: It is clearly visible day and night. LCD screen gives you a better visual experience
- Complies with CE and FFC certification standards
- Applications: For solar energy, various types of batteries, pipeline test, DC appliances, etc.

Function Description:
Voltage:
- Measuring range: 0-200V (when battery is ＜8V, an external power supply should be connected)
- Minimum resolution: 0.01V
- Minimum tested voltage: 0.05V
- Measurement accuracy: 1%

Current:
- Measurement range: 0-300A
- Minimum resolution: 1mA
- Minimum measured current: 20mA (PZEM-015)
- Measurement accuracy: 1%

Power:
- Measuring range: 0-60000W
- Minimum resolution: 0.01W
- Minimum tested power: 0.2W (PZEM-015)
- Measurement accuracy: 1%

Impedance:
- Impedance = voltage/current
- Resistance measurement range: 0-1000Ω
- When the range is exceeded or the current is 0, the screen will display "---"
- Minimum resolution: 0.1Ω
- Measurement accuracy: 1%

Internal Resistance:
- Internal resistance = (full voltage - on-load voltage) / on-load current. The internal resistance is 0 when the on-load voltage is greater than the highest voltage
- Measuring range: 0-999mΩ
- When the range is exceeded or the current is 0, the screen will display "—"
- Resolution: 1mΩ
- Note: Before measuring the internal resistance, the full voltage should be preset according to the specifications of the battery used, and then measured after it is fully charged. If it is not fully charged, the battery no-load voltage can be set to the full voltage and then measured. The internal resistance is not a fixed value, and the more the battery is discharged, the greater the internal resistance

Capacity:
- Measuring range: 0-1000AH
- Minimum resolution: 1mAH
- Measurement accuracy: 1%
- Note: The battery capacity test is the cumulative process of discharge current to time, which requires a certain amount of time, and the specific time is related to the discharge current. Before testing the capacity, users should pre-set the full voltage and cut-off voltage according to the specifications of the battery. After a full charge, the discharge test is performed. When the remaining electric quantity is displayed as a space, it means that the discharge is over, and the capacity display value is the capacity of the battery

SOC:
- The remaining electric quantity is displayed by the battery symbol, a total of 10 grids and each representing 10% electric quantity.
- The remaining electric quantity is calculated by the current battery voltage value, and the full voltage and cut-off voltage should be pre-set according to the specifications of the battery used before testing. The voltage of each grid = (highest voltage - minimum voltage)/10.

Energy:
- Measuring range: 0~9999kWh
- The value goes to zero when overflowing
- Minimum resolution: 1Wh
- Measurement accuracy: 1%

Running Time:
- Range: 0~999 hours (no load and not timed)
- Format: 0:00:00~999:59 (The value is zero when overflowing)

Power Consumption:
- Normal working status: 0.03-1.2W
- Sleep state: 0.5mW-0.5W
- Power consumption is related to the value of the test voltage. The higher the voltage, the greater the power consumption

Operating Temperature:
* -20℃ to +60℃

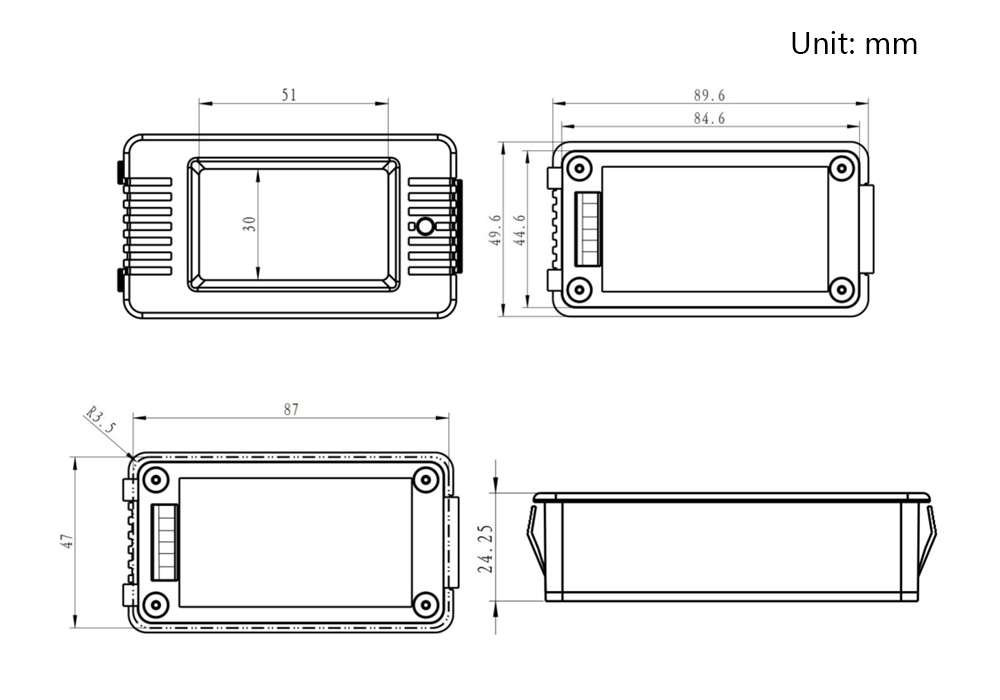

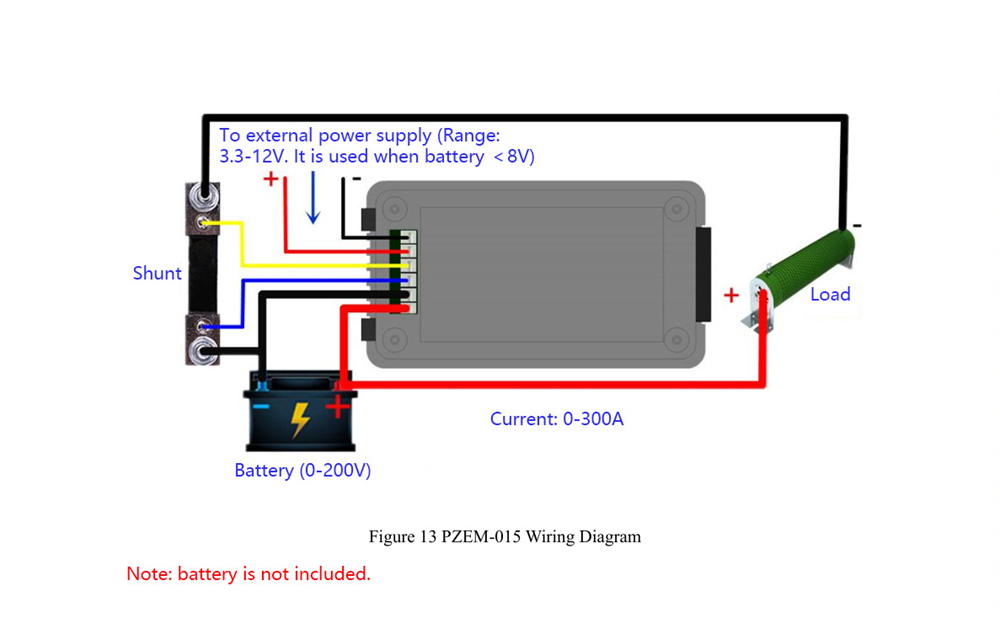

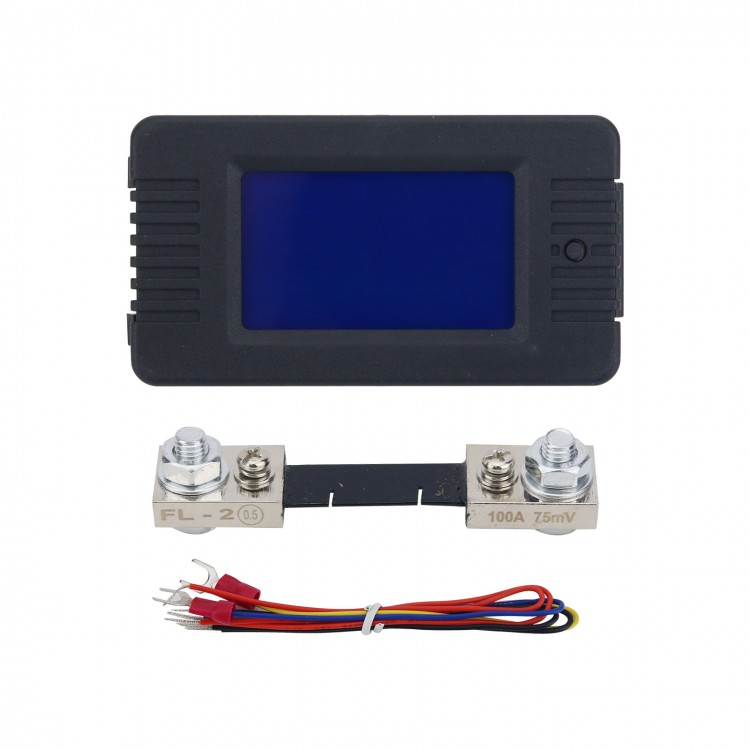

Package Included:
- 1 x Battery Tester
- 1 x Bundle of Cable
- 1 x 100A Shunt
