PZT Driver PZT Controller Module Linear High-voltage Operational Amplifier Module with 100V Output
Features:

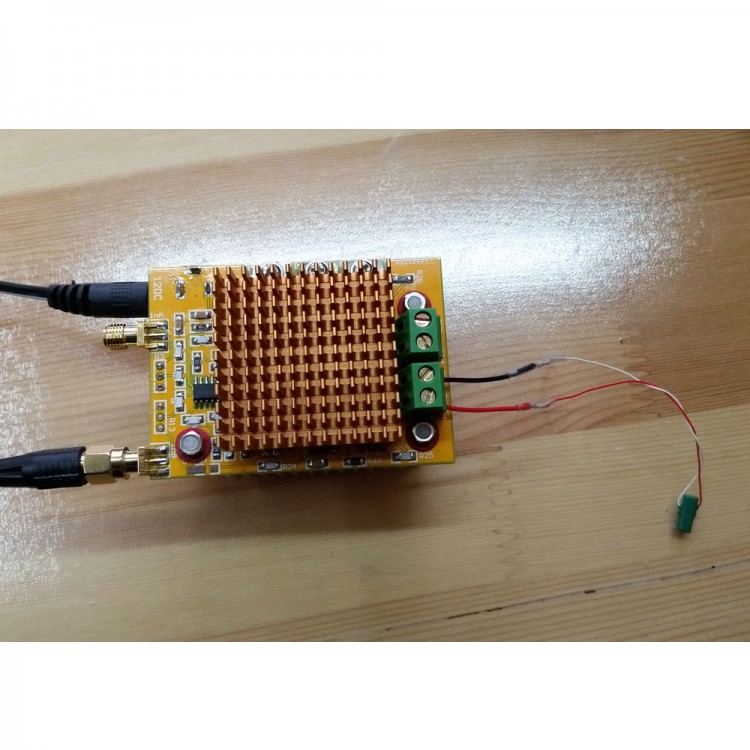

- Piezoelectric ceramics PZT driver module
- Power supply voltage: DC 12V (<500mA and power consumption less than 5W)
- Input control: default 0-5V input (corresponding to 0-100V high-voltage output). Users can define the input voltage range according to their own needs, such as 0-1V, 0-3.3V and 0-10V. Only need to adjust the potentiometer of the corresponding channel, and the input impedance is 5KΩ
- Output voltage range: The output voltage is proportional to the input control signal. The maximum output voltage is 100V and the lowest is 0V
- When there is no load, the shortest rising and falling edge of the output high voltage is 200us, and the maximum frequency can reach 2000Hz
- When it is connected to a PZT, the rising and falling edges of the output high voltage depend on the capacitance of the PZT. In general, the more elongated the PZT material, the larger the capacitance, the longer the rising and falling edges, and the smaller the maximum response frequency. Take PZT AE0203D08F for Thorlabs, for example. Its capacitance is about 0.2uF. And when it is connected to the high-voltage output of this driver, the shortest rising and falling edges of the high-voltage output are about 400us, and the highest frequency is about 1000Hz.
- Dual-channel input and output. The two channels are independent of each other. This module allows users to independently control two different PZTs to run
- Input interface is SMA, and output interface is a 2P terminal block. Users can press the two wires of the PZT directly onto the terminal block
- Module dimensions: 6cm x 4cm x 4cm/2.4" x 1.6" x 1.6" (LxWxH)
- This PZT controller module is particularly suitable for customers to use low-voltage signals (through DA card output or through signal generator output) to automatically control the elongation of PZT. It is also convenient to manually control the elongation of PZT by potentiometer
Attention:
- Because the voltage is as high as 100V, users should pay attention to the safety of PZT in addition to their own safety. Don't connect the poles of the PZT in a wrong way. The positive and negative terminals are clearly marked on the terminals.
Package Included:
- 1 x PZT driver controller module
Packaging Details:
- G.W.: 1.2kg
