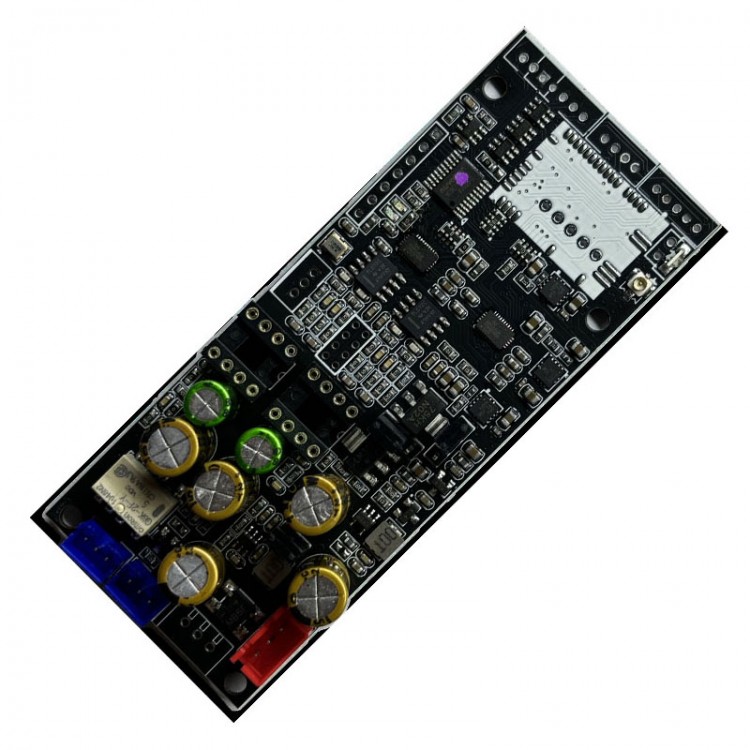

QCC3084 BT5.4 Bluetooth DAC Board Audio Decoder Board with Dual Parallel ES9038Q2M for WAV LDAC
Features:
- QCC3084 BT5.4: The Bluetooth chip supports for LDAC, aac, aptX, aptxLL, aptxHD, aptx-Adaptive, and supports 24BIT 96K. LDAC requires the support of your mobile phone
- The upgraded version makes it more useful for you to DIY
- Power supply design adopts a jumper cap for DC-DC5V and linear power supplies. And it adopts a design which is compatible with 7805 voltage regulator IC
- Positive and negative voltage design is available, and a jumper cap is used for internal boost and external power supply. It is flexible to use
- DC and AC share one input socket
- The internal power supply adopts original low-noise LDO for TI
- Optical fiber, coaxial and IIS inputs (an expansion board should be added for USB drive function)
- Compatible with volume switch and input channels can be switched
- With a sound card socket (PCM 24bit 96K)
- With dual parallel ES9038Q2M. One for left channel, and one for right channel
- Supports USB drive playback function, WAV, FLAC, APE and MP3, and 24BIT 48K sampling
Package Included:
- 1 x Set of Bluetooth DAC board
Packaging Details:
- Weight: 0.25KG
