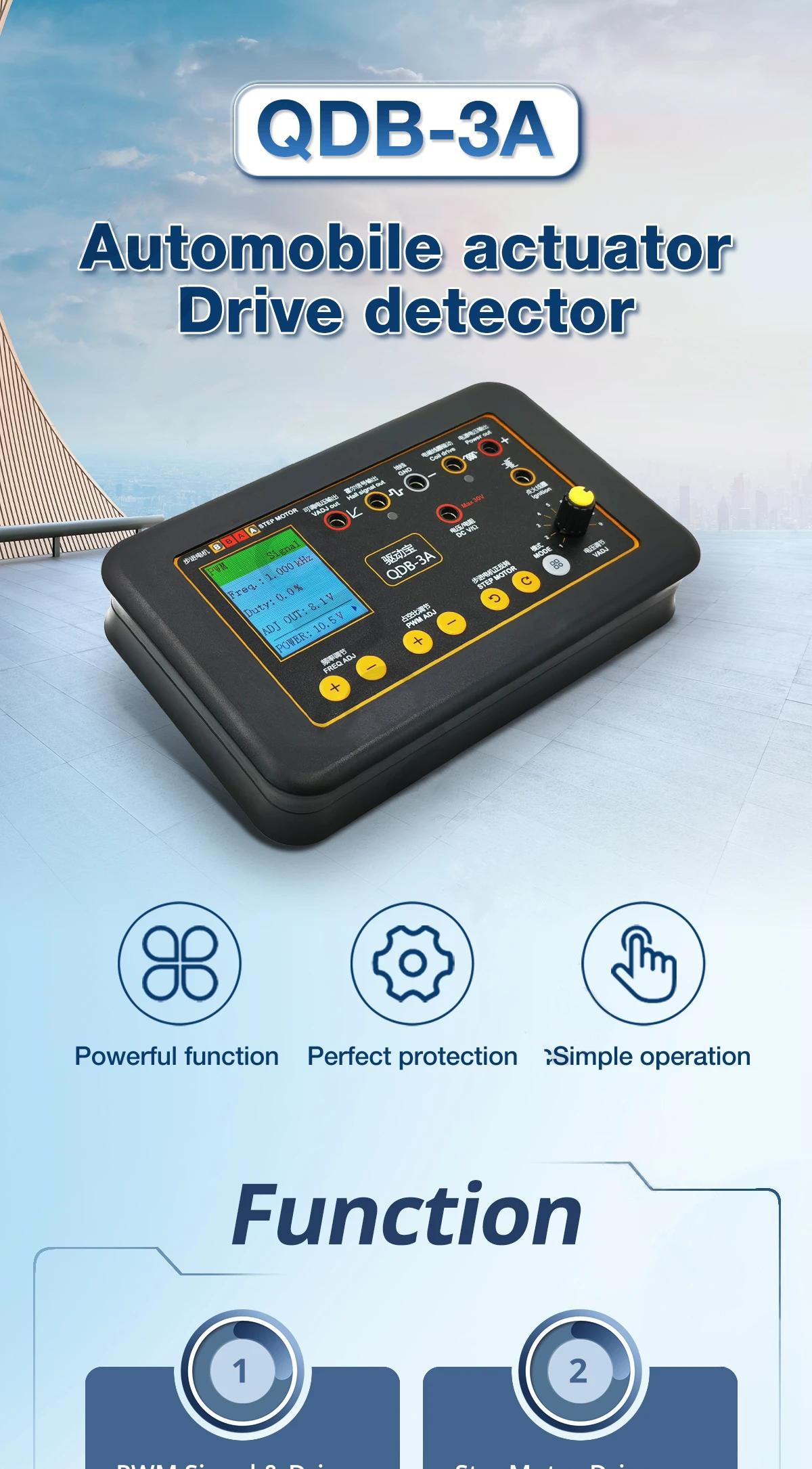

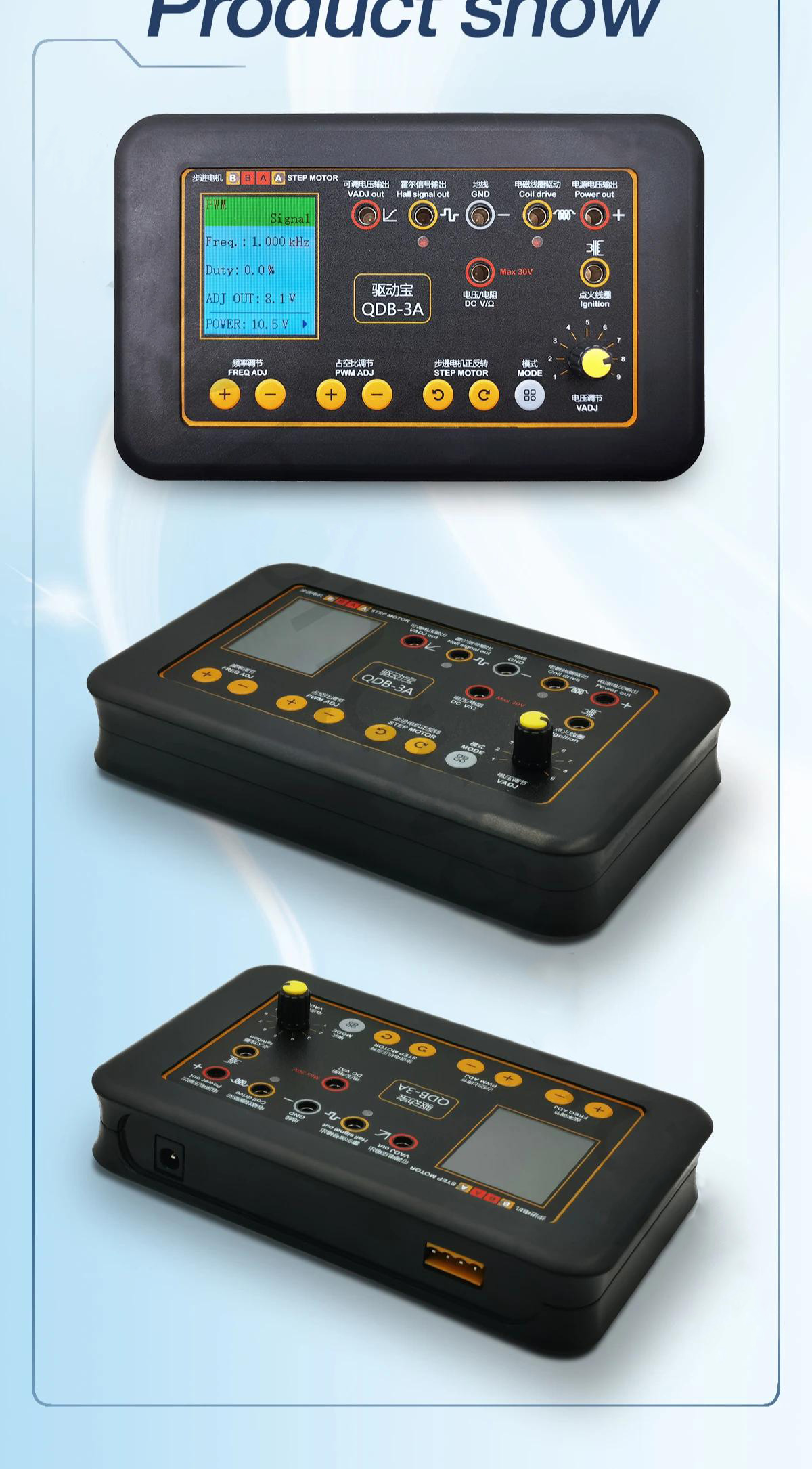

QDB-3A Auto Ignition Coil Tester Drive Detector Injector Solenoid Valve Idling Stepper Motor Instrument Fault Tester
User Manual:
- http://sz.hongwave.cn:5678/Downloads/QDB-3A/

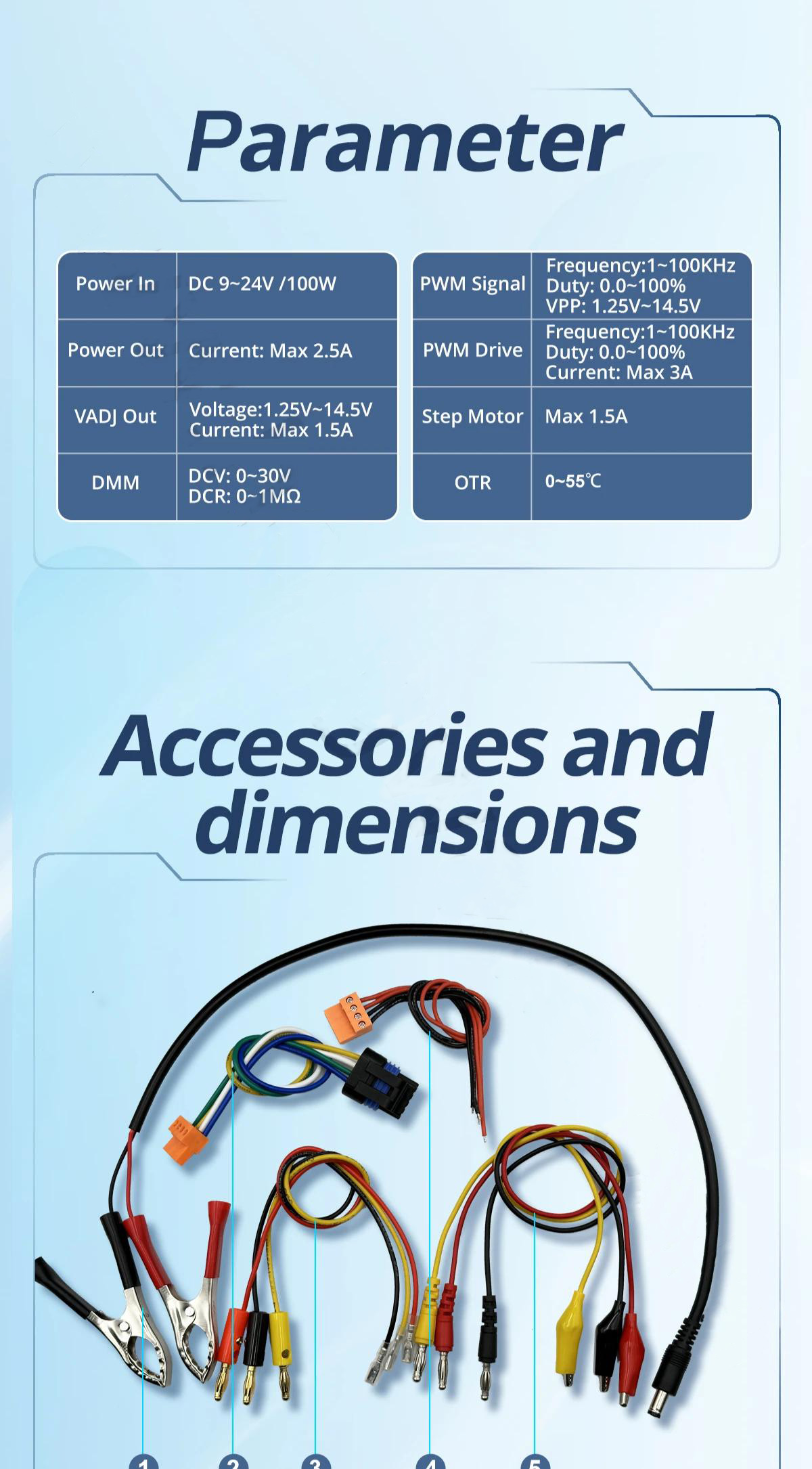

Parameter:
- Power in: DC 9 - 24V/100W
- Power out: current: max 2.5A
- VADJ out:
Voltage: 1.25V - 14.5V
Current: max 1.5A
- DMM:
DCV: 0 - 30V
DCR: 0 - 1Mohm

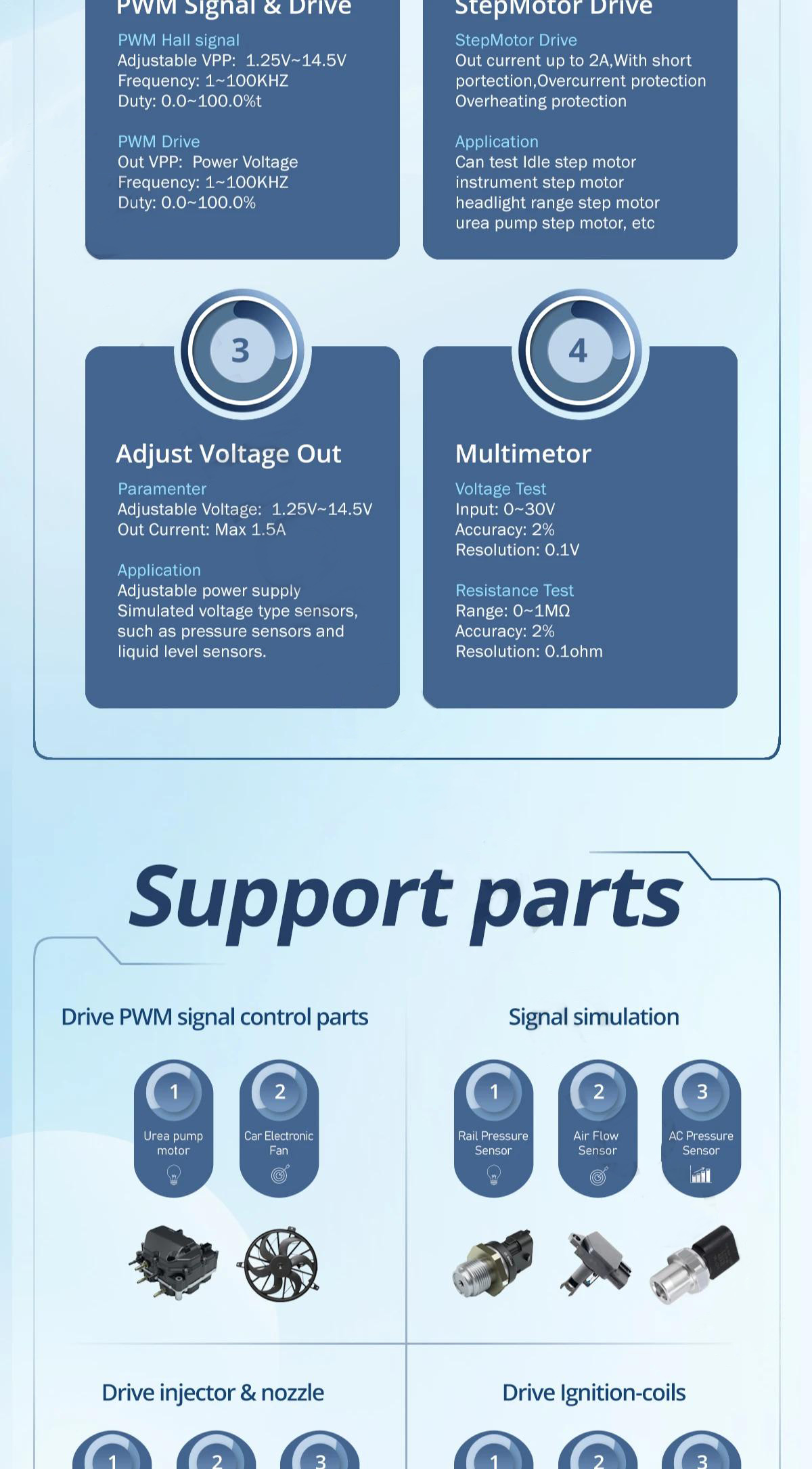

- PWM signal:
Frequency: 1 - 100kHz
Duty: 0 - 100%
VPP: 1.25V - 14.5V

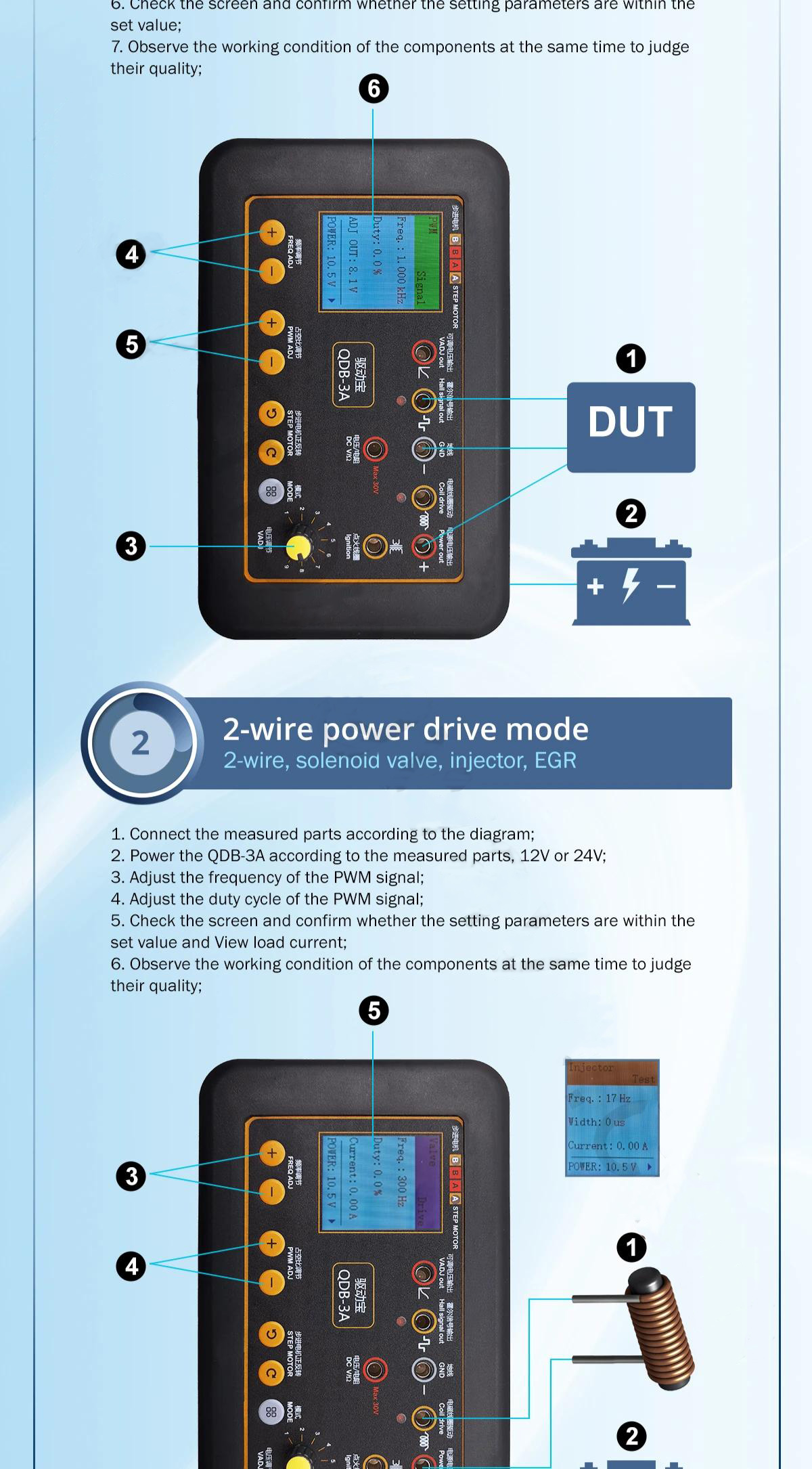

- PWM drive:
Frequency: 1 - 100kHz
Duty: 0 - 100%
Current: max 3A

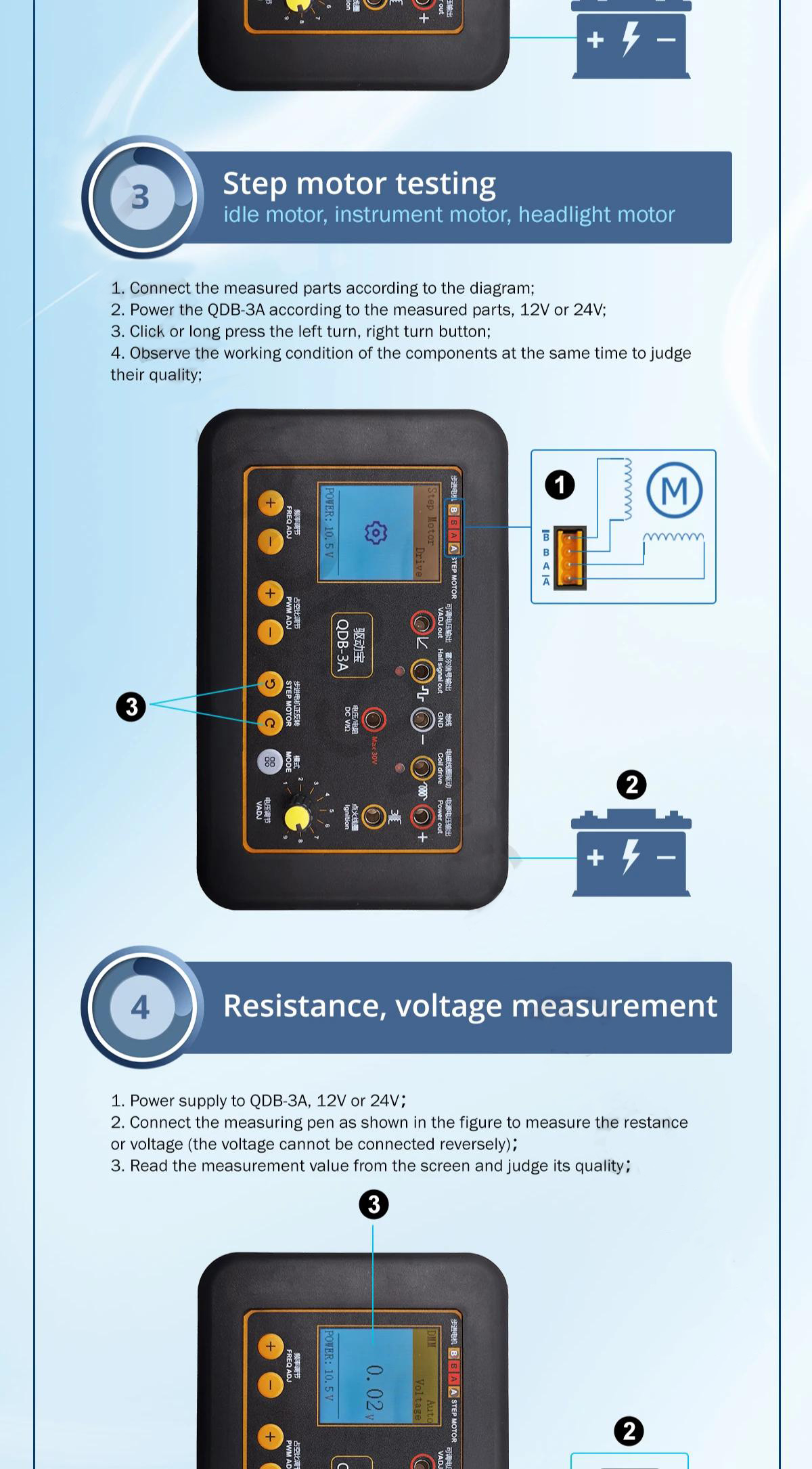

- Step motor: max 1.5A
- OTR: 0 - 55℃

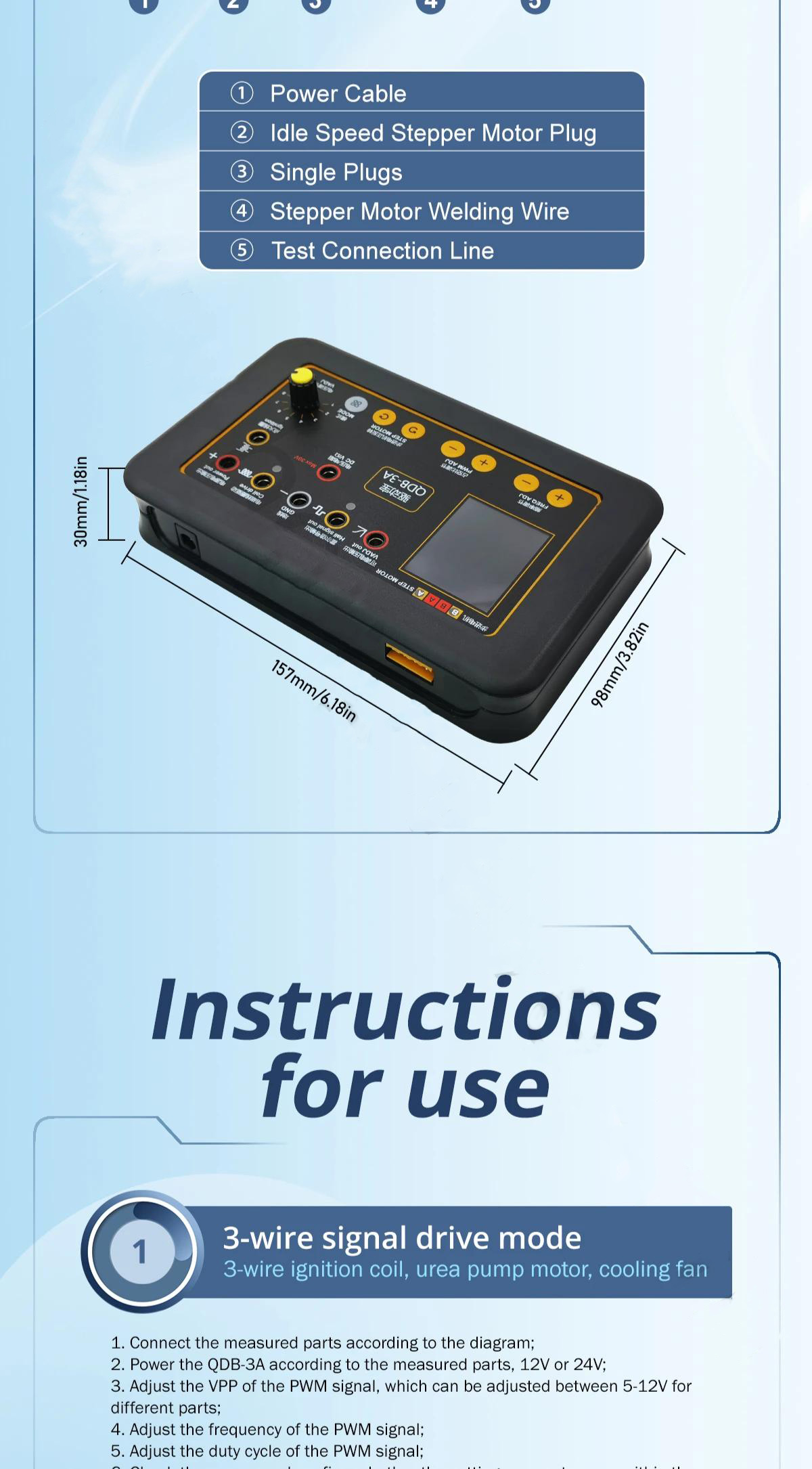

Package Included:
- 1 x Tester
- 1 x Power Cable
- 1 x Single Plugs
- 1 x Idle Speed Stepper Motor Plug
- 1 x Stepper Motor Welding Wire
- 1 x Test Connection Line
