Qdee Ultrasonic Sensor Module Ultrasonic Distance Sensor For Robot Micro:bit Arduino Raspberry Pi

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.86
  • Price in reward points: 139 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.58 $13.31 $12.89 $12.34 Contact US
Quantity:

Qdee Ultrasonic Sensor Module Ultrasonic Distance Sensor For Robot Micro:bit Arduino Raspberry Pi

Description:

The ultrasonic sensor detects distance in the range of 2cm to 400cm without contact. And its detection angle is up to 15°. With elegantly designed and sealed shell, it is suitable for Lego.

Features:

- High precision module
- Small blind zone
- 4-Pin connection port
- Suitable for Lego
- Perfect for micro:bit, Arduino and Raspberry Pi expansion boards

Specifications:

- Operating Voltage: 5V
- Operating Current: 2mA
- Working Frequency: 40Hz
- Effective Working Range: 2cm-400cm
- Detection Angle: 15° Max.
- Input Trigger Signal: 10uS TTL Pulse
- Output Response Signal: Output TTL Level Signal, Proportional to Working Range

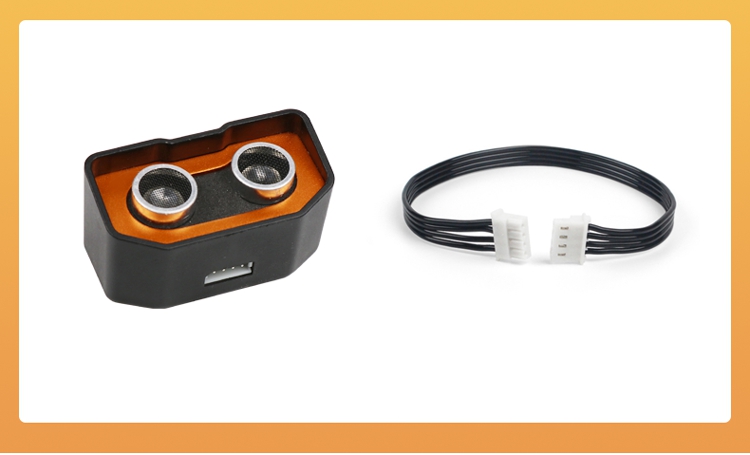

Package Included:
- 1 x Ultrasonic Sensor Module
- 1 x 4-Pin Cable
