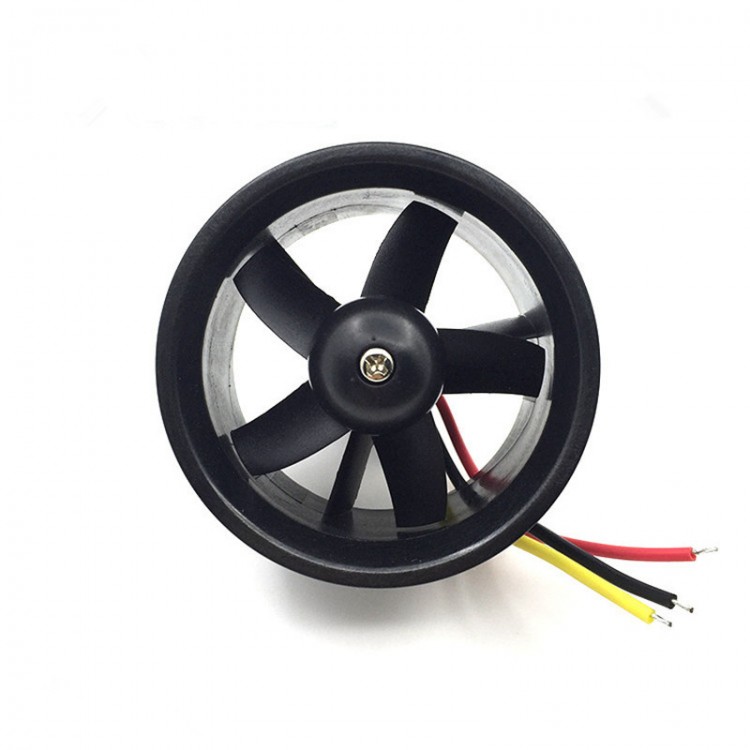

QF2611-4500KV 64MM Ducted Fan Motor 5-Blade EDF Model Airplane Brushless Motor For RC Drone
Description:
64mm duct, with QF2611-4500KV motor and 5 blades, is powerful and efficient! It features low temperature. It is suitable for the modification of ducted UAV below 1200g, and is an ideal choice for you!
Motor Parameters:
- Motor model: QF2611-4500KV
- KV: 4500KV
- Structure: 9N6P
- Stator diameter: 20.2MM
- Electronic length: 11MM

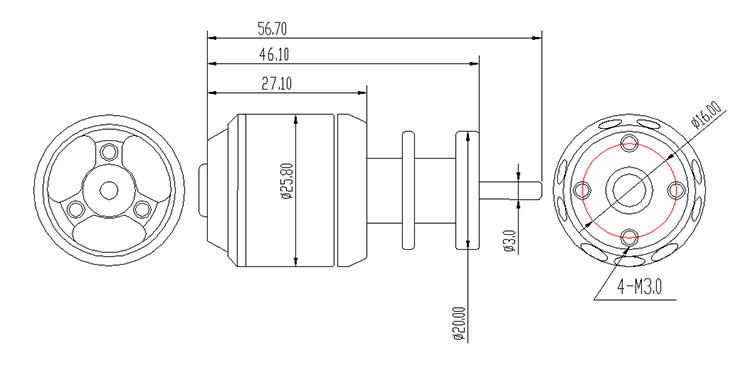

- Motor size: 26*47MM
- Duct weight: 130g
- No-load current: 2.0A
- Maximum power: 280W
- Maximum current: 27A
Package Included:
- 1 x Set of Ducted Fan Motor
Note:
- It is recommenced to use 3S lithium battery which is not included.
Attention:
1. Choosing this product indicates that you are aware of the safe operation terms, otherwise please stop using this product.
2. For safety, please not direct the air inlet or outlet towards yourself or others.
3. This product should be installed and used under the parameter settings guided by the manufacturer. Please not change the voltage, overload or do any modifications.
4. This product has been tested for dynamic balance, please not disassemble or modify it by yourself, otherwise the product balance will be affected.
5. When the product is dynamically balanced, there will be a little scratch on the inner wall of the pipeline. Please make sure that you don't mind before purchasing. Thank you for your understanding!
