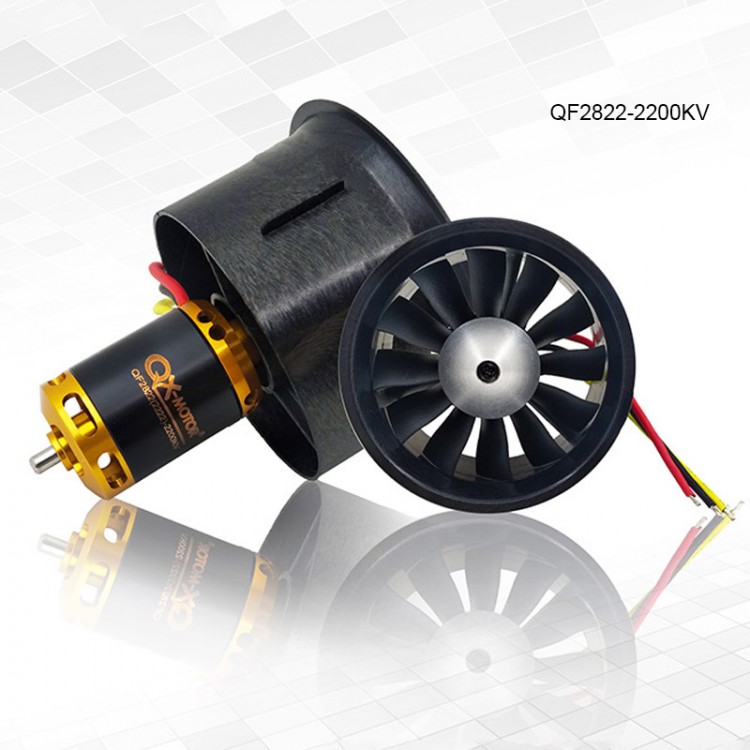

QF2822-2200KV 64MM Ducted Fan Motor 12-Blade EDF Motor 6S Duct For FMS Ducted Airplane RC Drone
Description:
With QF2822-2200KV motor and 12 blades, 64mm duct is powerful and efficient! It features low temperature. Suitable for power modification of ducted UAV over 1200g. It is an ideal choice for you!
Motor Parameters:
- Motor series: QF2822 (2222)
- KV: 2200KV
- Structure: 9N6P
- Stator diameter: 22MM
- Stator length: 22MM
- Motor dimension: 28*60MM
- Motor weight: 90g
- No-load current: 3.5A
- Maximum continuous power in 10s: Within 1050W/10s
- Maximum continuous current in 1min: Within 50A/1min
Package Included:
- 1 x Set of Ducted Fan Motor
Note:
- This ducted motor is not compatible with our 64mm old ducted fans nor 64mm ducted fans from other manufacturers. Only its upgraded ducted fan is supported.
- It is recommenced to use 3-6S Lipo which is not included.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
